Controls and Functions

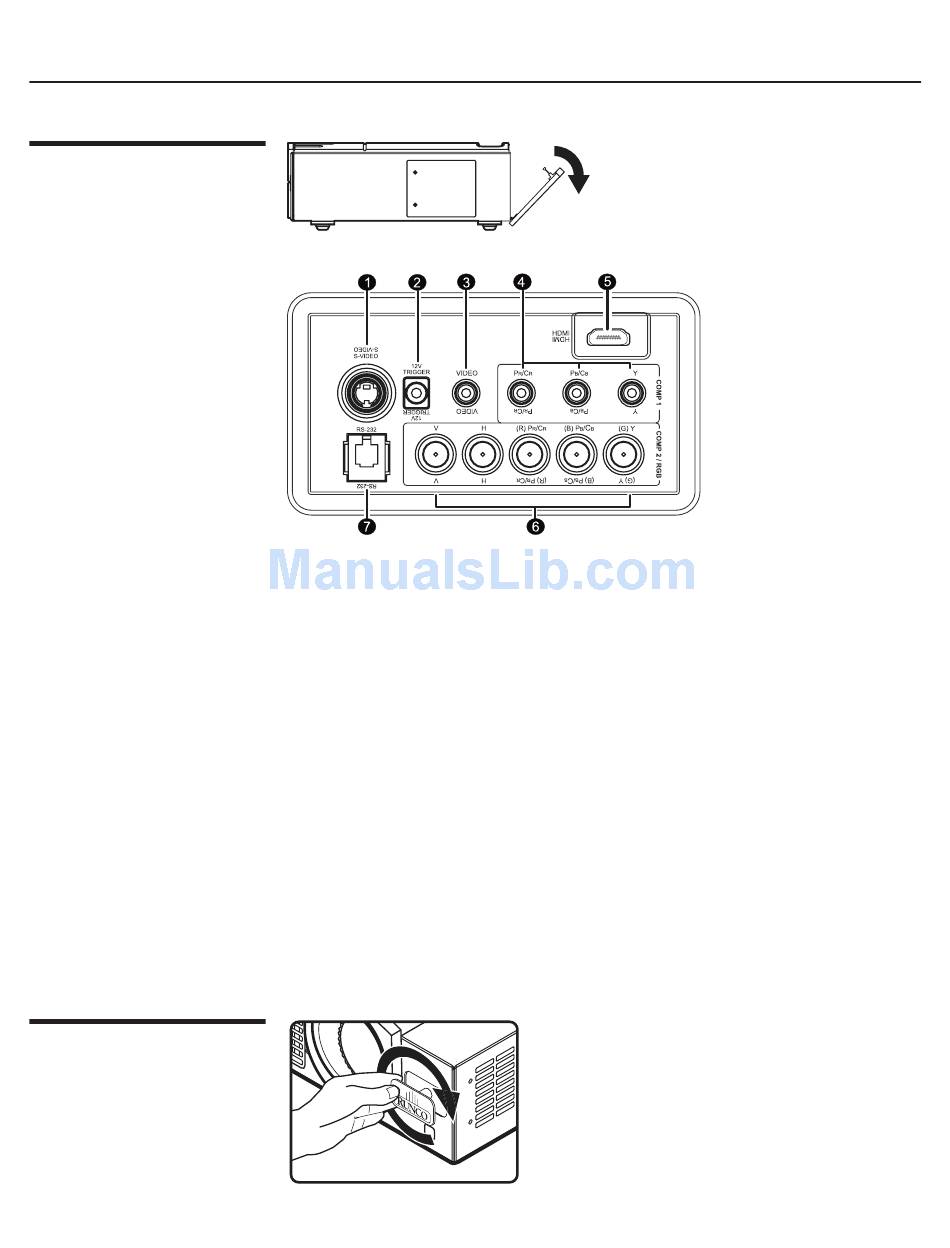

Connector Panel

Runco Logo

1. S-Video (mini DIN 4-pin) Y/C (S-video) signal input
2. 12v Trigger (mini jack, diameter 5.5 mm outside, 2.5 mm inside)
+12V output, active when the projector is turned on
3. Video (RCA Jack)
Composite video signal input
4. Component (RCA Jacks)
480i Component (Y/CB/CR) video signal input
5. HDMI (High-Definition Multimedia Interface) Input
Digital video signal input
6. RGB/ HDTV (BNC) or Progressive Scan DVD players
DTV Y/P /P or DTV RGB video signal input
B R
7. RS-232C (RJ-11 Jack)
RS-232C control signal input (refer to page 49 for details)
14
To access the connector panel, pull firmly
on the cable access cover to open it.
The Runco logos on the front and rear of the projector
can be rotated to match a floor or ceiling installation.
To rotate the logo, grip it at the sides, pull it away
from the projector and rotate it 180 degrees.
