Overview

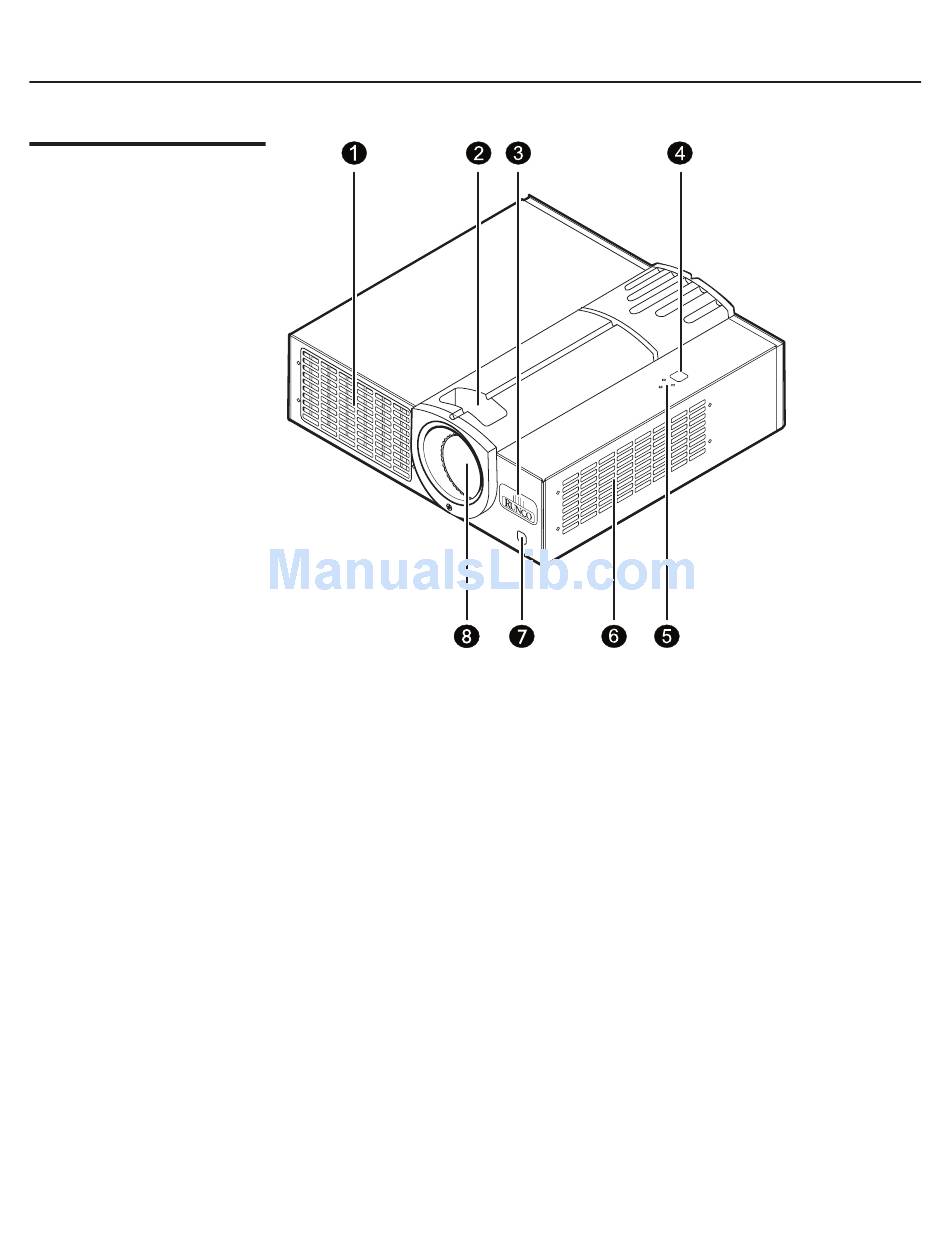

Front / Top View

1. Exhaust Vent
2. Focus Ring and Zoom Ring
Access
Adjust the focus and zoom of image.

3. Runco Logo

Can be rotated to match floor or
ceiling installation. See "Runco
Logo" on page 14.
10
4. Top IR Sensor

5. Status LEDs

See "Control Panel" on page 13.
6. Intake Vent
7. Front IR Sensor

8. Projection Lens

Runco CL-610 Owner's Operating Manual
