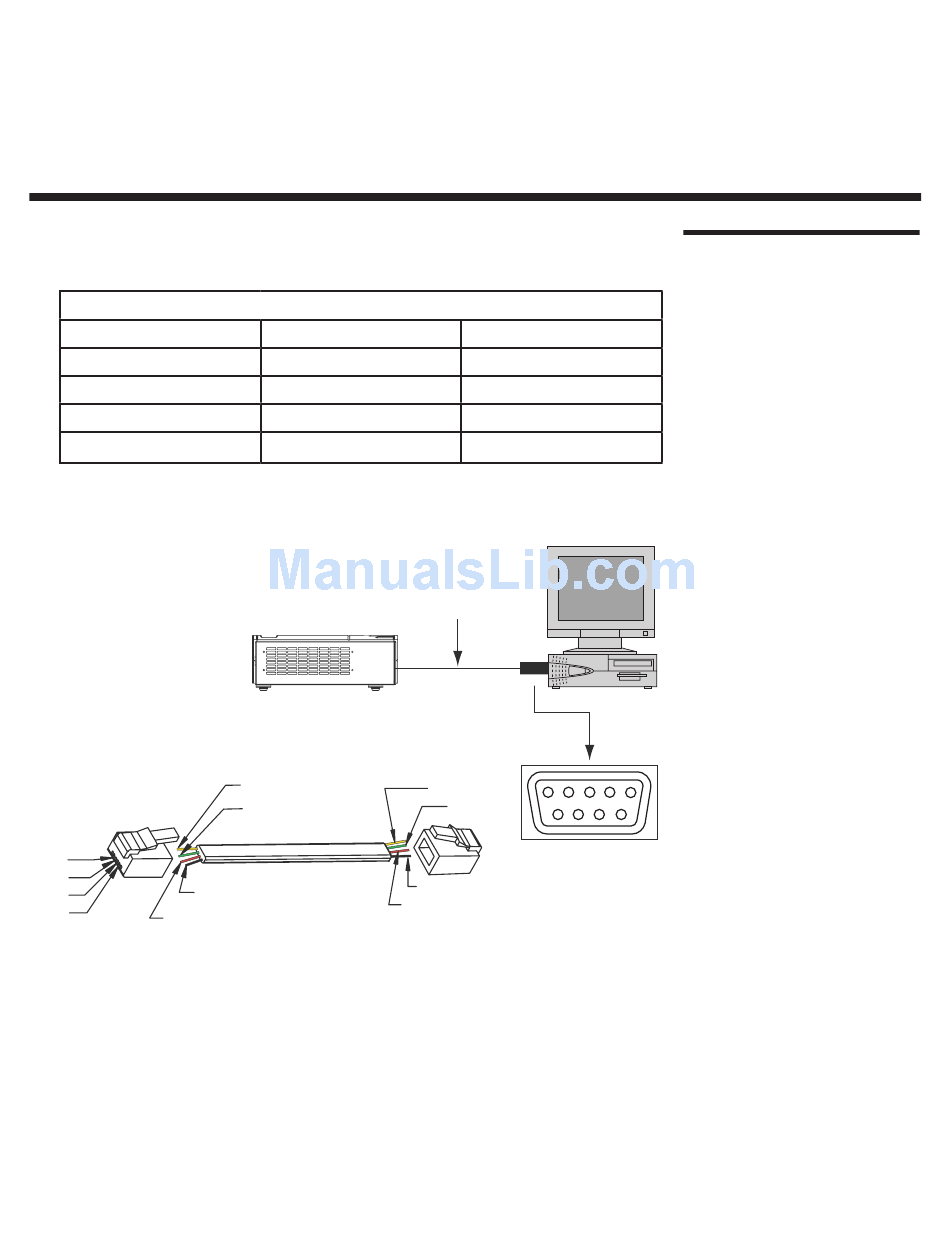

1. Connect a D-Sub 9-pin female-to-RJ-11 adapter (not included) to a COM port
on your PC. The adapter must be wired as follows:
D-Sub 9-pin female
2
3
5
1, 4, 6, 7, 8, 9
2. Connect the COM port to the RS-232 port on the projector. Use a standard,
4-wire RJ-11 telephone cable, wired straight-through.
1
2
Black
3
4
Red
3. Start a terminal session on your PC using a terminal-emulation program, such
as HyperTerminal.
4. Configure the COM port on the PC as follows: no parity, 8 data bits, 1 stop bit
and no flow control. Set the baud rate to match that of the projector (115200,
38400 or 9600).
5. Press Enter. You should see a command prompt (>) in the terminal window.
6. Type the desired command from the table that follows and press Enter. For
example, to set the aspect ratio to Letterbox, type x063x <Enter>.
Runco CL-610 Owner's Operating Manual
RS-232 Pin Assignments
4-pin RJ-11
2
3
1, 4
--
RJ-11 to D-Sub 9-pin (not included)
Yellow
Green
Black
Red
Function
Transmit Data
Receive Data
Ground
Not Connected
Yellow
5 4 3 2
Green
9 8 7
D-Sub 9-pin female
49

RS-232 Setup

Connecting RS-232 to the
Projector
1
6
