Proper placement of the projector relative to the screen will yield a rectangular, perfectly-
centered image that completely fills the screen.
Ideally, the projector should be positioned perpendicular to the screen and in such a
way that the lens center is aligned with either the top or bottom edge of the screen
area, and centered horizontally.
The top of the projected image is even with the lens center when the projector is
inverted (ceiling-mounted). Likewise, the bottom of the projected image is aligned with
the lens center when the projector is upright (as in a floor installation).

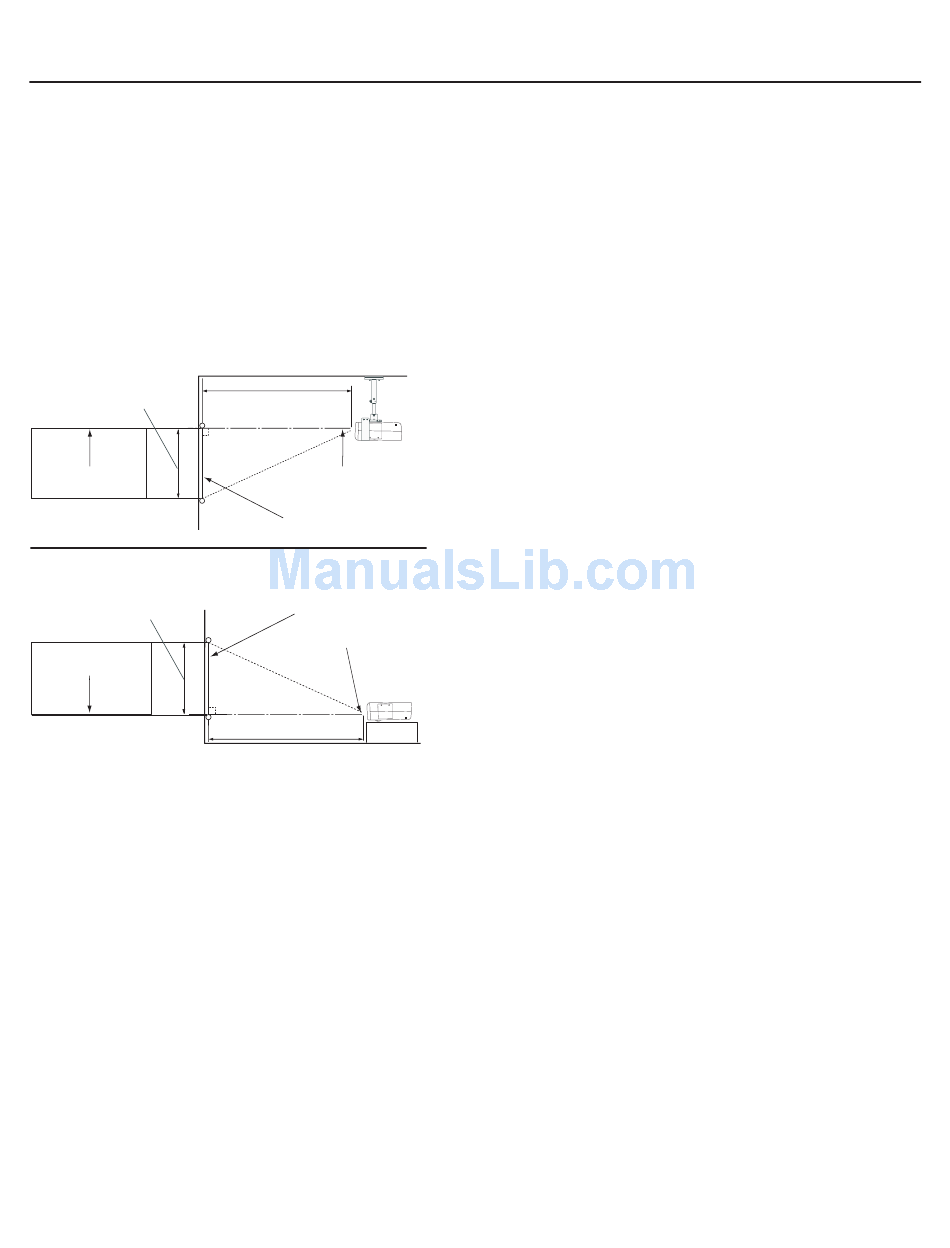

Ceiling Installation
Height
x
Lens Center
Floor Installation
Height
Lens Center
x
If it is not possible to align the projector and screen as shown above, you can tilt the
projector at a slight angle. In a ceiling installation, you do this by adjusting the ceiling
mount. For a floor installation, turn the four adjustable feet on the bottom of the projector
to adjust the projector height and/or projection angle.
If you do this, you may need to make keystone adjustments or vertically shift the image
using the on-screen display (OSD) controls, to compensate. For detailed instructions,
refer to On-Screen Display Menus, later in this manual.
Runco CL-610 Owner's Operating Manual
Ceiling
Projection Distance
Lens Center
Screen
Screen
Lens Center
Projection Distance
Floor
21
Installation
➤ Vertical and Horizontal
Position
➤ Adjusting the Projection
Angle
