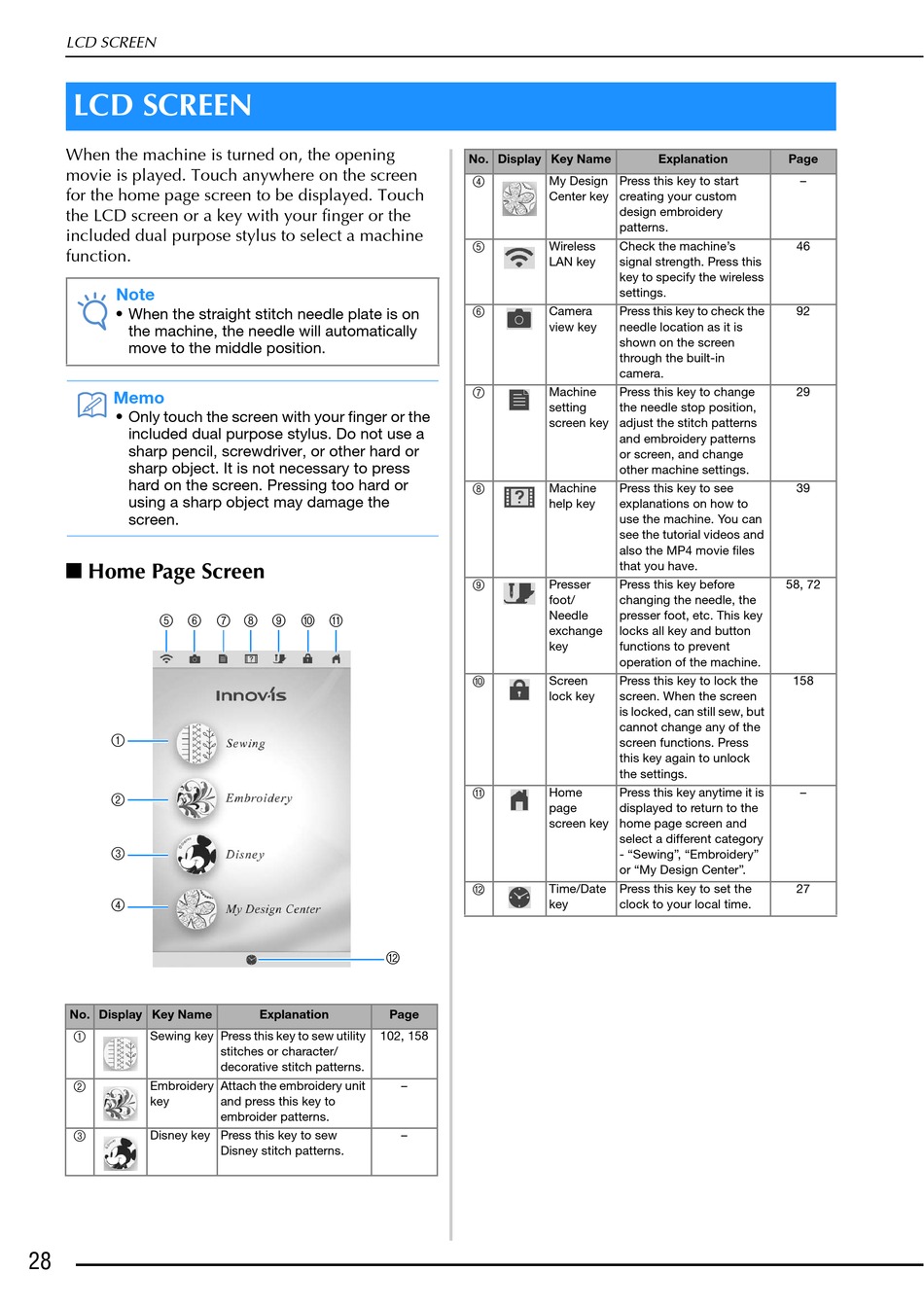

LCD SCREEN

LCD SCREEN
When the machine is turned on, the opening
movie is played. Touch anywhere on the screen
for the home page screen to be displayed. Touch
the LCD screen or a key with your finger or the
included dual purpose stylus to select a machine
function.
Note
• When the straight stitch needle plate is on
the machine, the needle will automatically
move to the middle position.
Memo
• Only touch the screen with your finger or the
included dual purpose stylus. Do not use a
sharp pencil, screwdriver, or other hard or
sharp object. It is not necessary to press
hard on the screen. Pressing too hard or
using a sharp object may damage the
screen.
■ Home Page Screen
e f
a
b
c
d
No. Display Key Name
a
Sewing key Press this key to sew utility
b
Embroidery
key
c
Disney key Press this key to sew
28
g h i
j
k
l
Explanation
Page
102, 158
stitches or character/
decorative stitch patterns.
Attach the embroidery unit
and press this key to
embroider patterns.
Disney stitch patterns.
No. Display Key Name
d
My Design
Center key
e
Wireless
LAN key
f
Camera
view key
g
Machine
setting
screen key
h
Machine
help key
i
Presser
foot/
Needle
exchange
key
j
Screen
lock key
k
Home
page
screen key
l
Time/Date
key
Explanation
Page
Press this key to start
creating your custom
design embroidery
patterns.
Check the machine's
signal strength. Press this
key to specify the wireless
settings.
Press this key to check the
needle location as it is
shown on the screen
through the built-in
camera.
Press this key to change
the needle stop position,
adjust the stitch patterns
and embroidery patterns
or screen, and change
other machine settings.
Press this key to see
explanations on how to
use the machine. You can
see the tutorial videos and
also the MP4 movie files
that you have.
Press this key before
58, 72
changing the needle, the
presser foot, etc. This key
locks all key and button
functions to prevent
operation of the machine.
Press this key to lock the
158
screen. When the screen
is locked, can still sew, but
cannot change any of the
screen functions. Press
this key again to unlock
the settings.
Press this key anytime it is
displayed to return to the
home page screen and
select a different category
- "Sewing", "Embroidery"
or "My Design Center".
Press this key to set the
clock to your local time.
46
92
29
39
27
