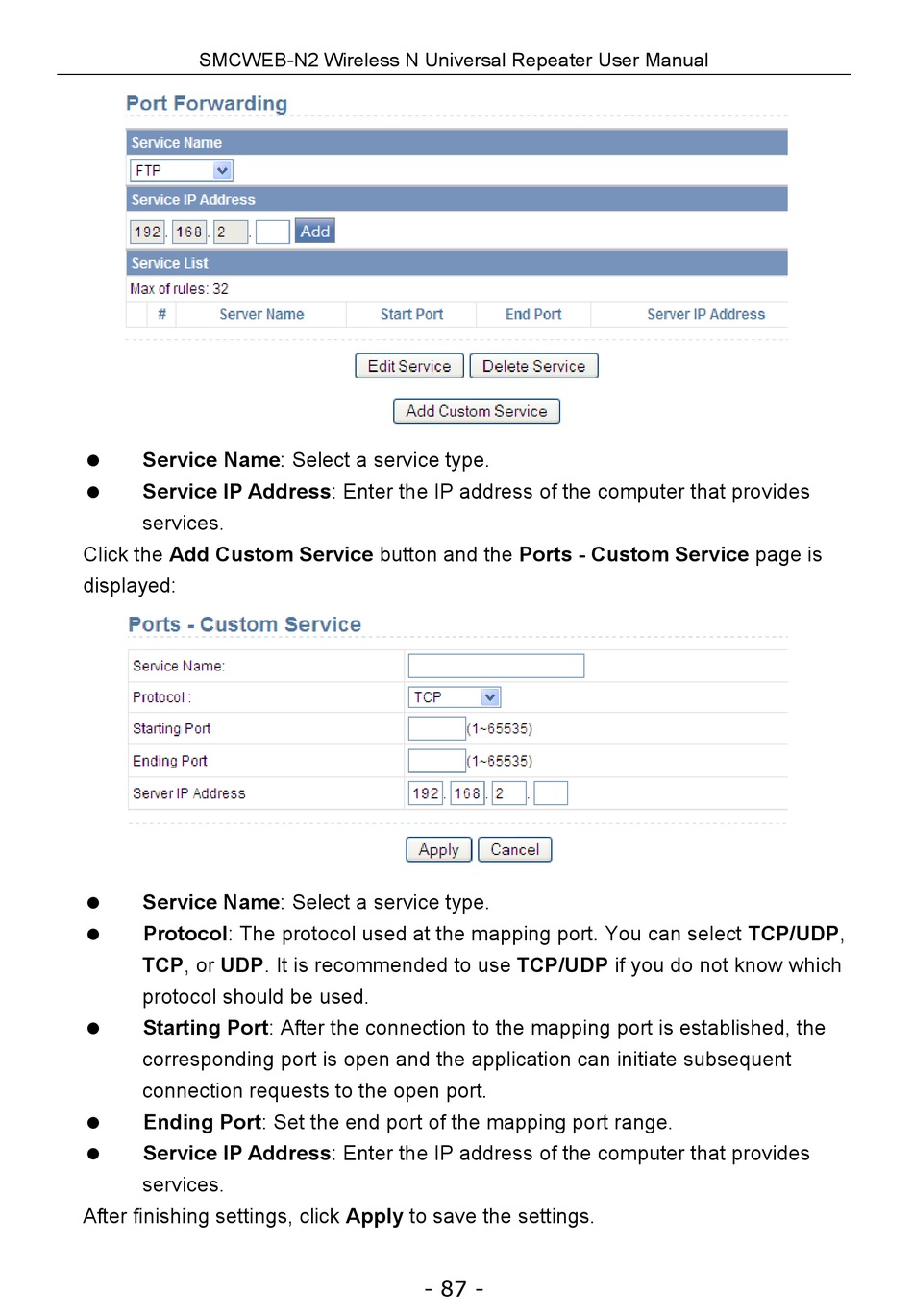

SMCWEB-N2 Wireless N Universal Repeater User Manual
Service Name: Select a service type.

Service IP Address: Enter the IP address of the computer that provides

services.
Click the Add Custom Service button and the Ports - Custom Service page is
displayed:
Service Name: Select a service type.

Protocol: The protocol used at the mapping port. You can select TCP/UDP,

TCP, or UDP. It is recommended to use TCP/UDP if you do not know which
protocol should be used.
Starting Port: After the connection to the mapping port is established, the

corresponding port is open and the application can initiate subsequent
connection requests to the open port.
Ending Port: Set the end port of the mapping port range.

Service IP Address: Enter the IP address of the computer that provides

services.
After finishing settings, click Apply to save the settings.
- 87 -
