SMCWEB-N2 Wireless N Universal Repeater User Manual

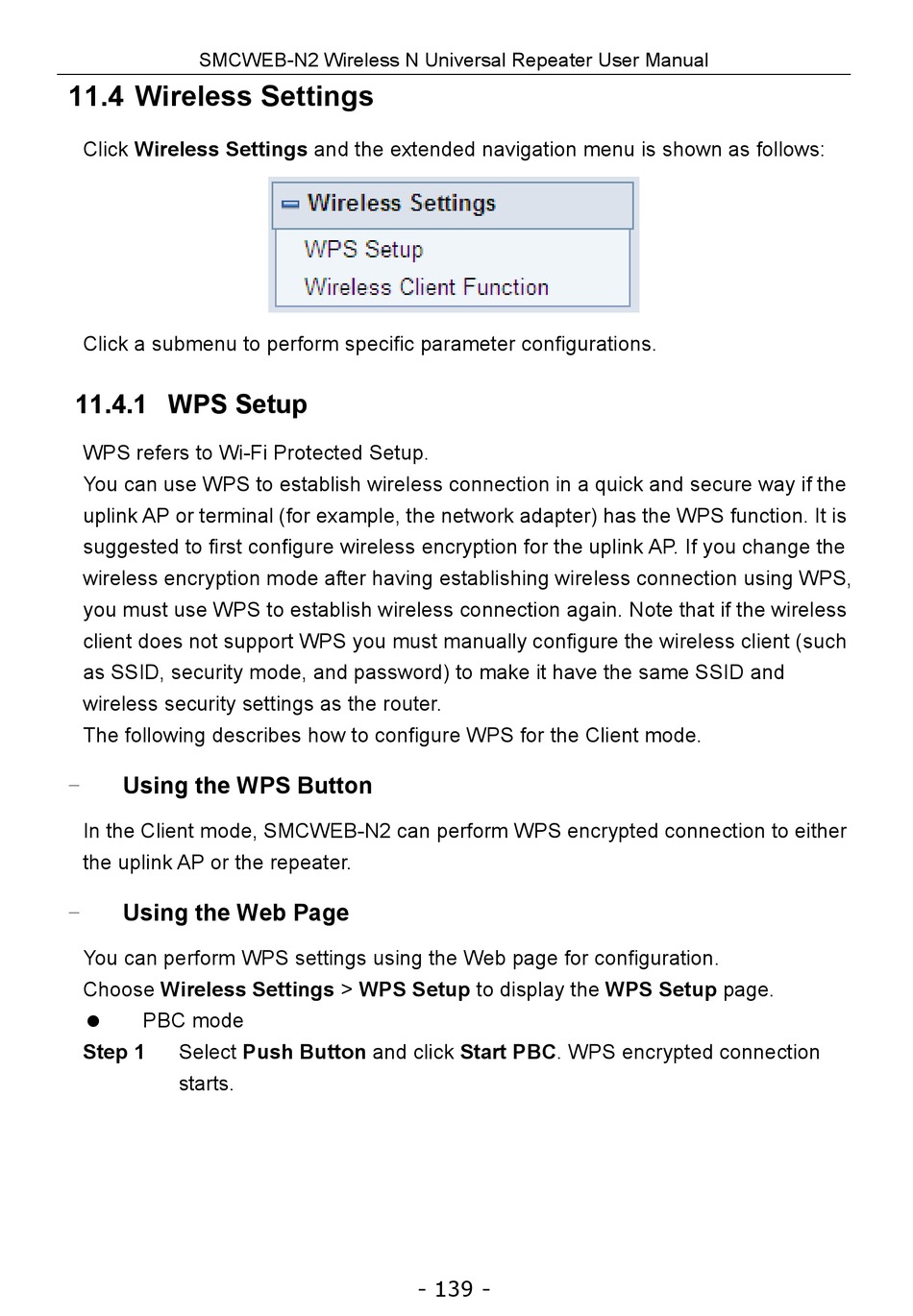

11.4 Wireless Settings

Click Wireless Settings and the extended navigation menu is shown as follows:
Click a submenu to perform specific parameter configurations.

11.4.1 WPS Setup

WPS refers to Wi-Fi Protected Setup.
You can use WPS to establish wireless connection in a quick and secure way if the
uplink AP or terminal (for example, the network adapter) has the WPS function. It is
suggested to first configure wireless encryption for the uplink AP. If you change the
wireless encryption mode after having establishing wireless connection using WPS,
you must use WPS to establish wireless connection again. Note that if the wireless
client does not support WPS you must manually configure the wireless client (such
as SSID, security mode, and password) to make it have the same SSID and
wireless security settings as the router.
The following describes how to configure WPS for the Client mode.
Using the WPS Button
-
In the Client mode, SMCWEB-N2 can perform WPS encrypted connection to either
the uplink AP or the repeater.
Using the Web Page
-
You can perform WPS settings using the Web page for configuration.
Choose Wireless Settings > WPS Setup to display the WPS Setup page.
PBC mode

Step 1 Select Push Button and click Start PBC. WPS encrypted connection
starts.
- 139 -
