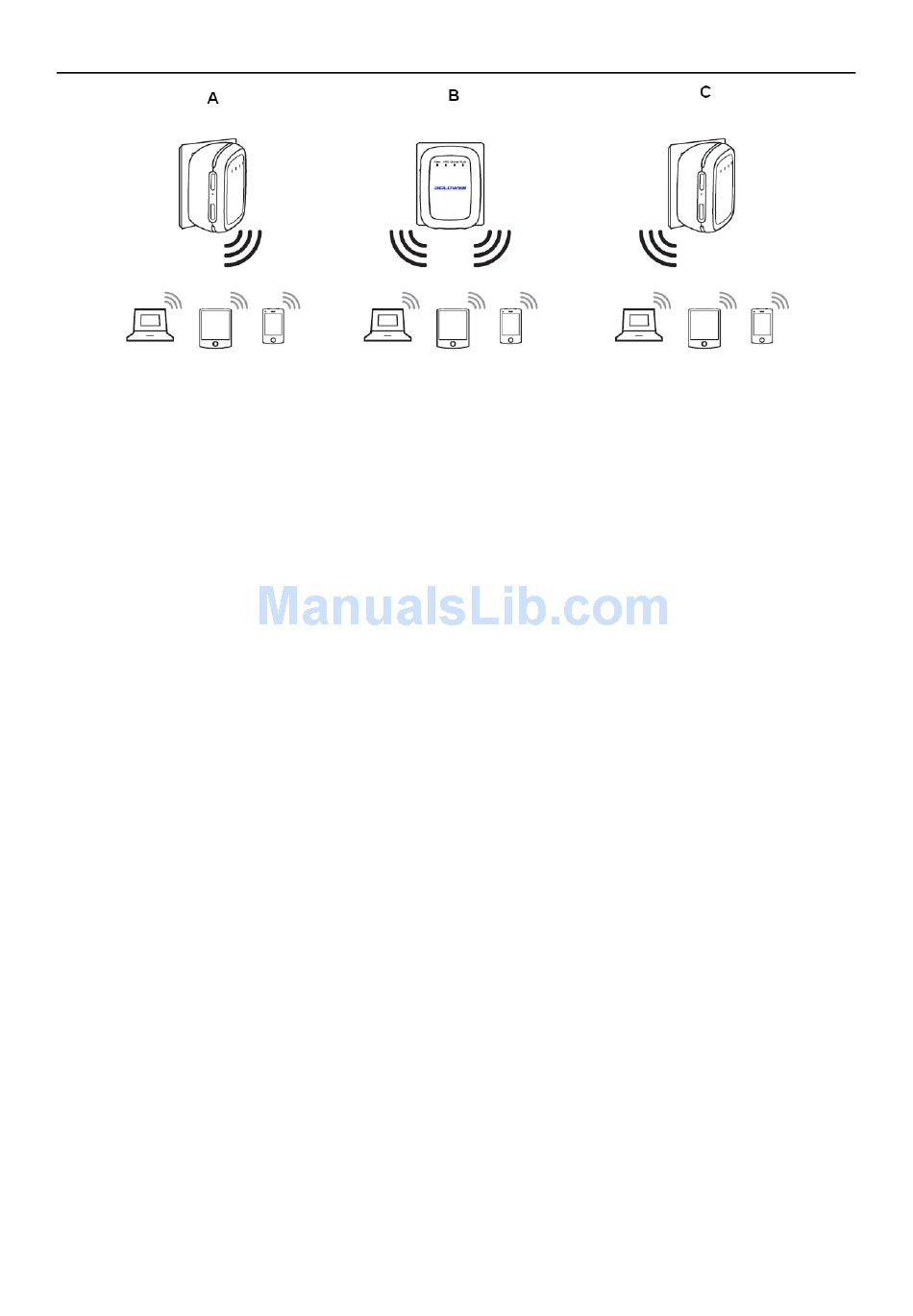

Configure the three routers in this way:
Wireless N Universal Repeater B functions as the wireless basic station; Wireless
N Universal Repeaters A and C connect to Wireless N Universal Repeater B by
using WDS.
(1) Configuring Wireless N Universal Repeater B as the wireless
basic station
Step 1 Log in to the Web management page of Wireless N Universal Repeater
B. Choose Wireless Settings > Wireless Basic Settings and set the
SSID, channel, and wireless encryption information. Write down the
SSID, channel, and wireless encryption information that are required
when you are configuring wirelss router A and C.
Step 2 Choose Wireless Settings > WDS Function and enable the WDS
function. Enter MAC addresses of repeaters (that is, Wireless N
Universal Repeaters A and C in this example). Click Apply to save the
settings.
(2) Configuring Wireless N Universal Repeater A
Do as follows to establish WDS connection between Wireless N Universal
Repeaters A and B:
Step 1 Set Wireless N Universal Repeater A with the same channel and
encryption information as Wireless N Universal Repeater B.
Step 2 Choose Wireless Settings > WDS Function and enable the WDS
function. Set the IP address of Wireless N Universal Repeater B different
from that of Wireless N Universal Repeater B to avoid IP address conflict
(for example, change the IP address to 192.168.2.20 in the LAN
