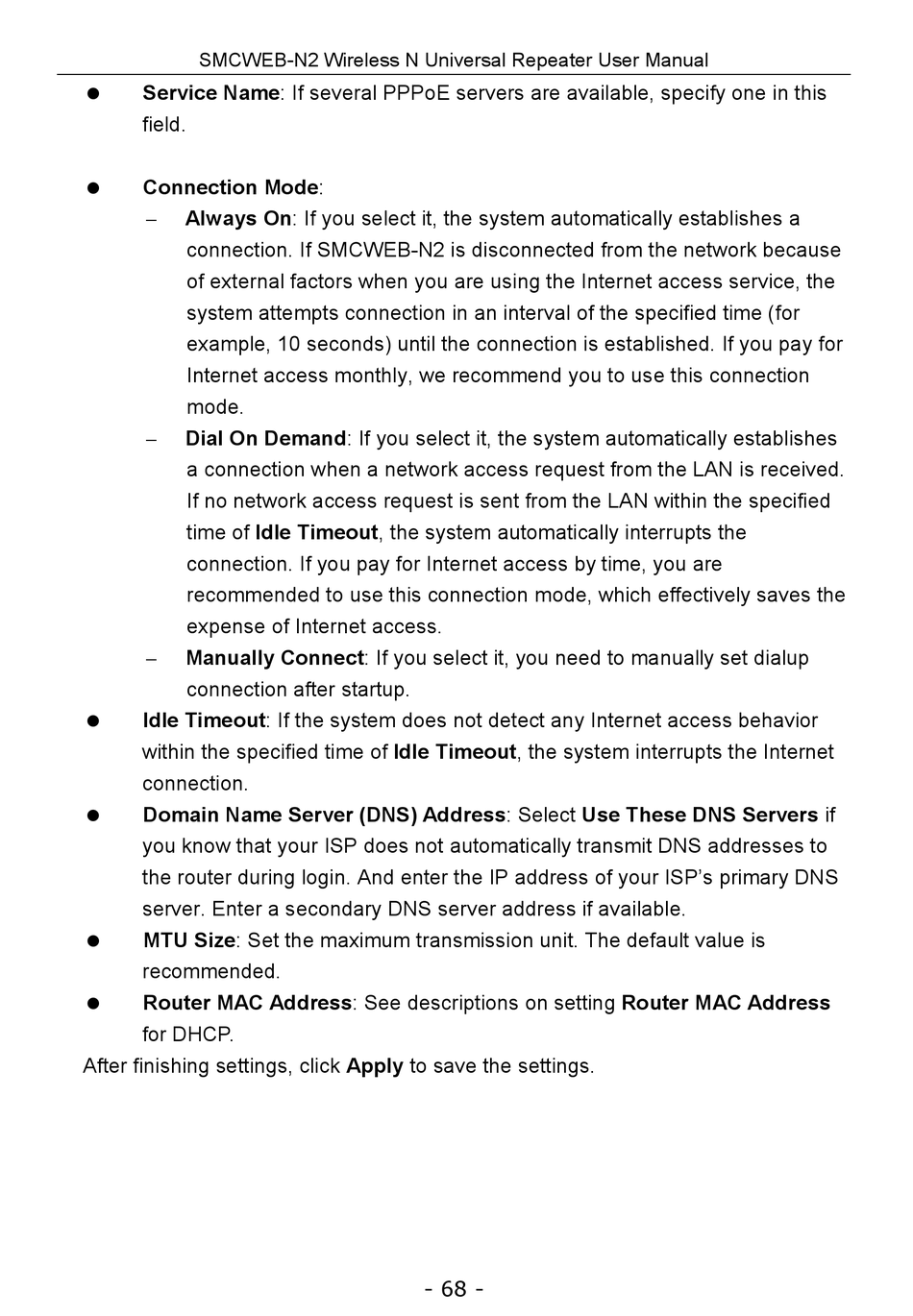

SMCWEB-N2 Wireless N Universal Repeater User Manual
Service Name: If several PPPoE servers are available, specify one in this

field.
Connection Mode:

– Always On: If you select it, the system automatically establishes a
connection. If SMCWEB-N2 is disconnected from the network because
of external factors when you are using the Internet access service, the
system attempts connection in an interval of the specified time (for
example, 10 seconds) until the connection is established. If you pay for
Internet access monthly, we recommend you to use this connection
mode.
– Dial On Demand: If you select it, the system automatically establishes
a connection when a network access request from the LAN is received.
If no network access request is sent from the LAN within the specified
time of Idle Timeout, the system automatically interrupts the
connection. If you pay for Internet access by time, you are
recommended to use this connection mode, which effectively saves the
expense of Internet access.
Manually Connect: If you select it, you need to manually set dialup
–
connection after startup.
Idle Timeout: If the system does not detect any Internet access behavior

within the specified time of Idle Timeout, the system interrupts the Internet
connection.
Domain Name Server (DNS) Address: Select Use These DNS Servers if

you know that your ISP does not automatically transmit DNS addresses to
the router during login. And enter the IP address of your ISP's primary DNS
server. Enter a secondary DNS server address if available.
MTU Size: Set the maximum transmission unit. The default value is

recommended.
Router MAC Address: See descriptions on setting Router MAC Address

for DHCP.
After finishing settings, click Apply to save the settings.
- 68 -
