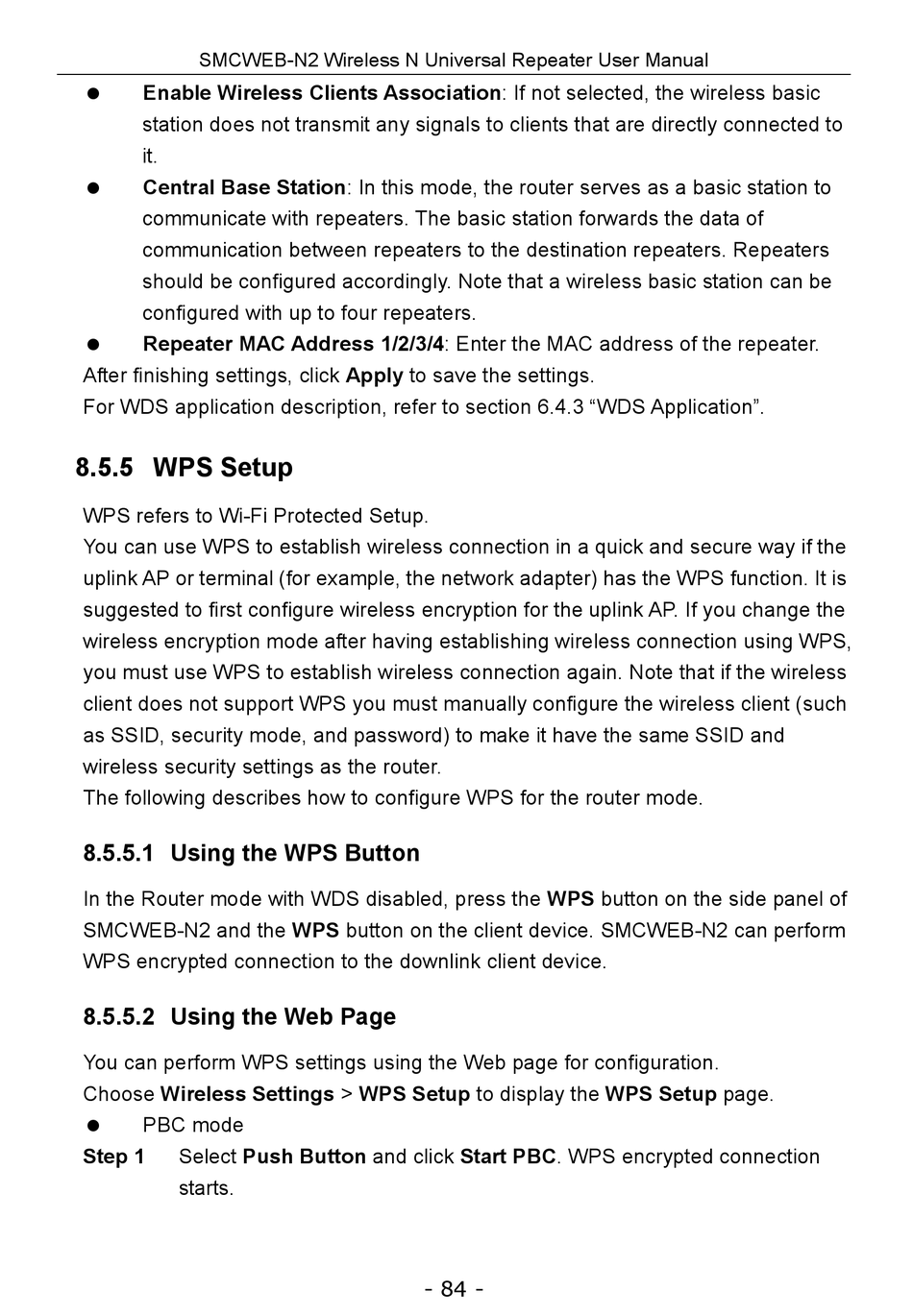

Enable Wireless Clients Association: If not selected, the wireless basic

station does not transmit any signals to clients that are directly connected to
it.
Central Base Station: In this mode, the router serves as a basic station to

communicate with repeaters. The basic station forwards the data of
communication between repeaters to the destination repeaters. Repeaters
should be configured accordingly. Note that a wireless basic station can be
configured with up to four repeaters.
Repeater MAC Address 1/2/3/4: Enter the MAC address of the repeater.

After finishing settings, click Apply to save the settings.
For WDS application description, refer to section 6.4.3 "WDS Application".

8.5.5 WPS Setup

WPS refers to Wi-Fi Protected Setup.
You can use WPS to establish wireless connection in a quick and secure way if the
uplink AP or terminal (for example, the network adapter) has the WPS function. It is
suggested to first configure wireless encryption for the uplink AP. If you change the
wireless encryption mode after having establishing wireless connection using WPS,
you must use WPS to establish wireless connection again. Note that if the wireless
client does not support WPS you must manually configure the wireless client (such
as SSID, security mode, and password) to make it have the same SSID and
wireless security settings as the router.
The following describes how to configure WPS for the router mode.

8.5.5.1 Using the WPS Button

In the Router mode with WDS disabled, press the WPS button on the side panel of
SMCWEB-N2 and the WPS button on the client device. SMCWEB-N2 can perform
WPS encrypted connection to the downlink client device.

8.5.5.2 Using the Web Page

You can perform WPS settings using the Web page for configuration.
Choose Wireless Settings > WPS Setup to display the WPS Setup page.
PBC mode

Step 1 Select Push Button and click Start PBC. WPS encrypted connection
starts.
- 84 -
