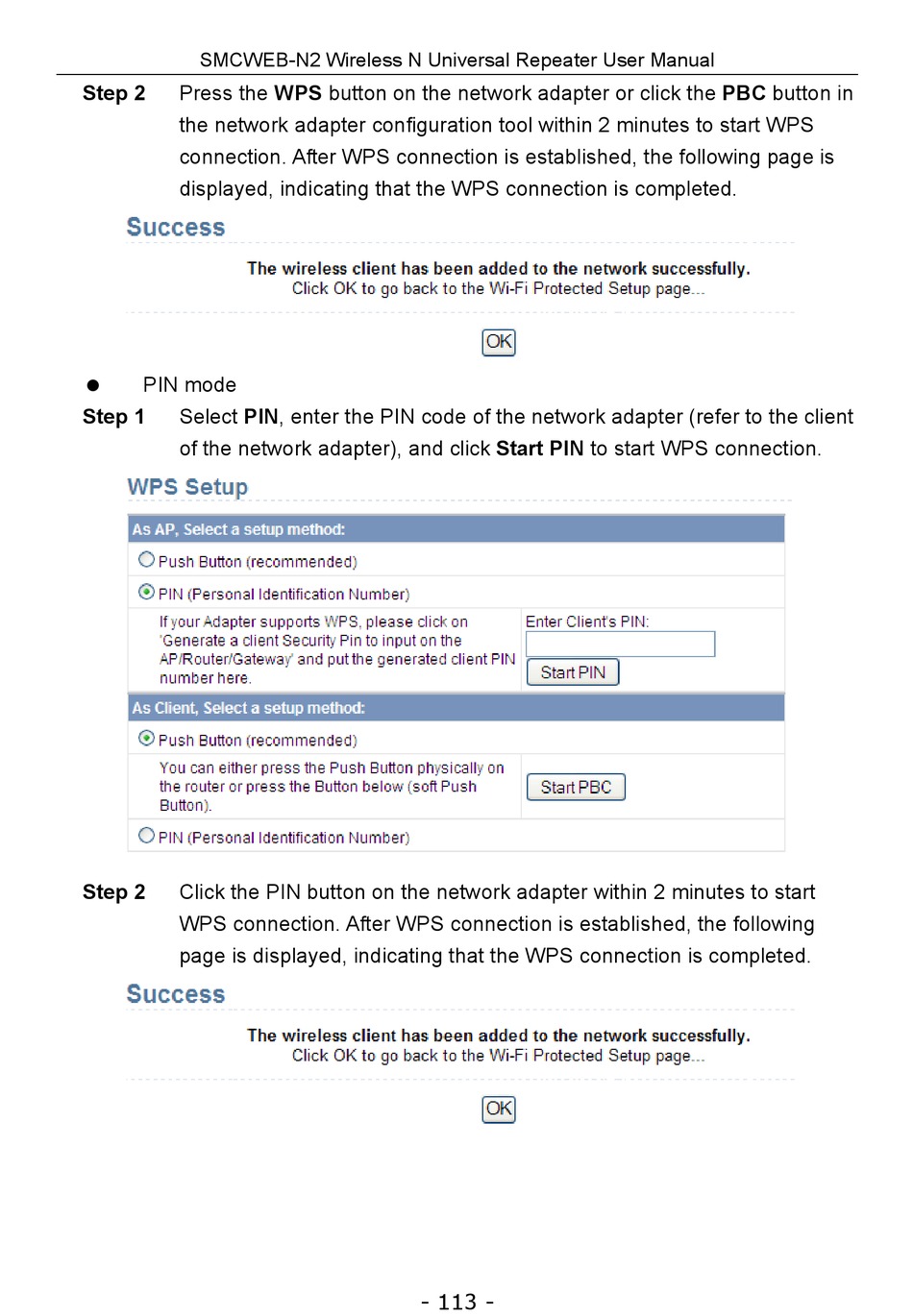

SMCWEB-N2 Wireless N Universal Repeater User Manual
Step 2 Press the WPS button on the network adapter or click the PBC button in
the network adapter configuration tool within 2 minutes to start WPS
connection. After WPS connection is established, the following page is
displayed, indicating that the WPS connection is completed.
PIN mode

Step 1 Select PIN, enter the PIN code of the network adapter (refer to the client
of the network adapter), and click Start PIN to start WPS connection.
Step 2 Click the PIN button on the network adapter within 2 minutes to start
WPS connection. After WPS connection is established, the following
page is displayed, indicating that the WPS connection is completed.
- 113 -
