SMCWEB-N2 Wireless N Universal Repeater User Manual

11.3.2.2 Using Address Reservation

When you specify a reserved IP address for a computer in the LAN, the computer
always receives the same IP address each time it accesses the router's DHCP
server. Reserved IP addresses should be assigned to computers or servers that
require permanent IP settings.
To reserve an IP address:

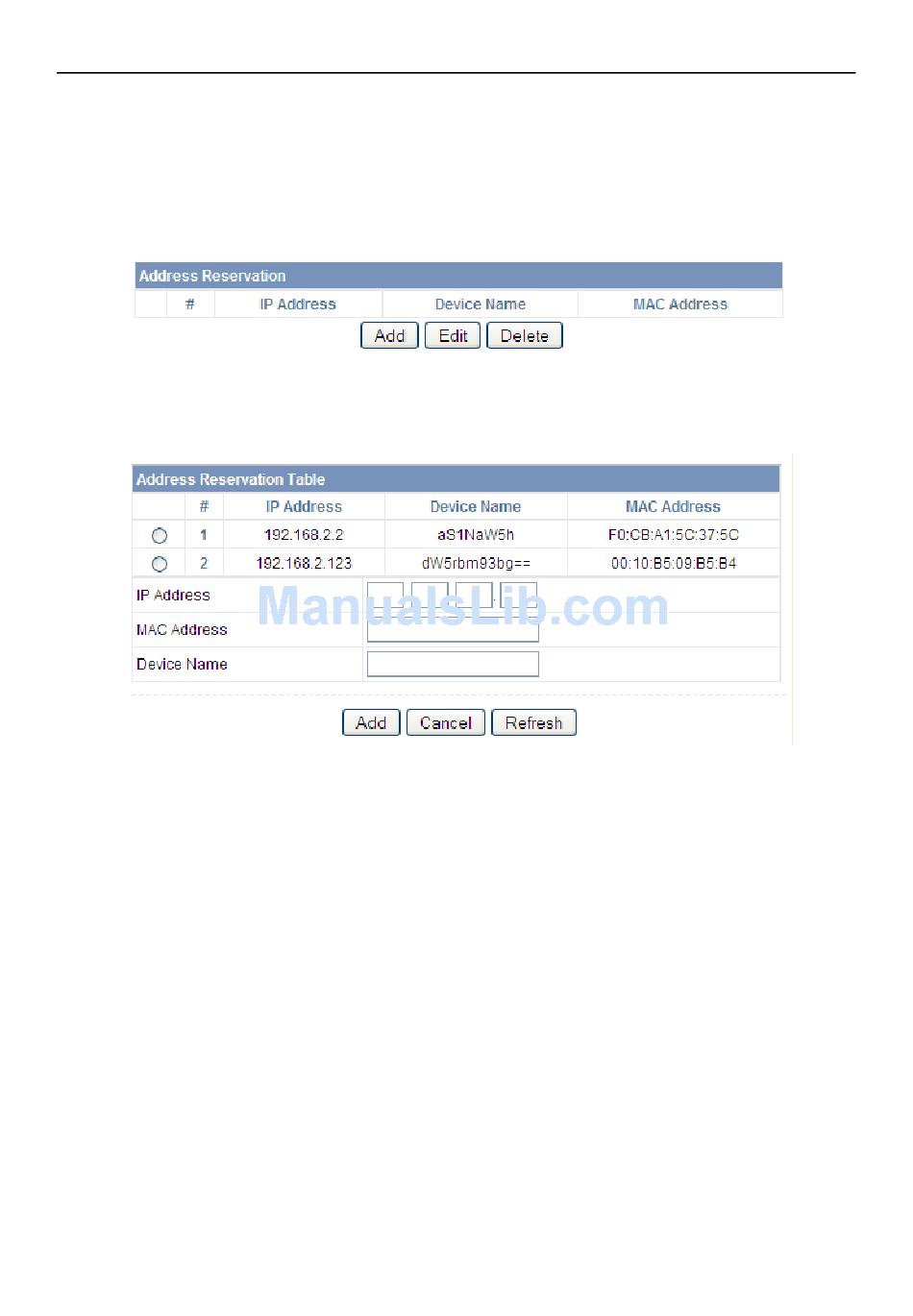

Step 1 Click Add to enter the Address Reservation page.
Step 2 Select one item from Address Reservation Table, or enter the IP
address in the IP Address field to assign to the computer or server
(Choose an IP address from the IP address pool that you have specified,
for example 192.168.2.x). Enter the MAC address and device name of
the computer or server.
Step 3 Click Add to add a new item into Address Reservation.
Step 4 Click Apply to save the settings.
- 138 -
