4.1.2 Side Panel and Interface Description

Side Panel

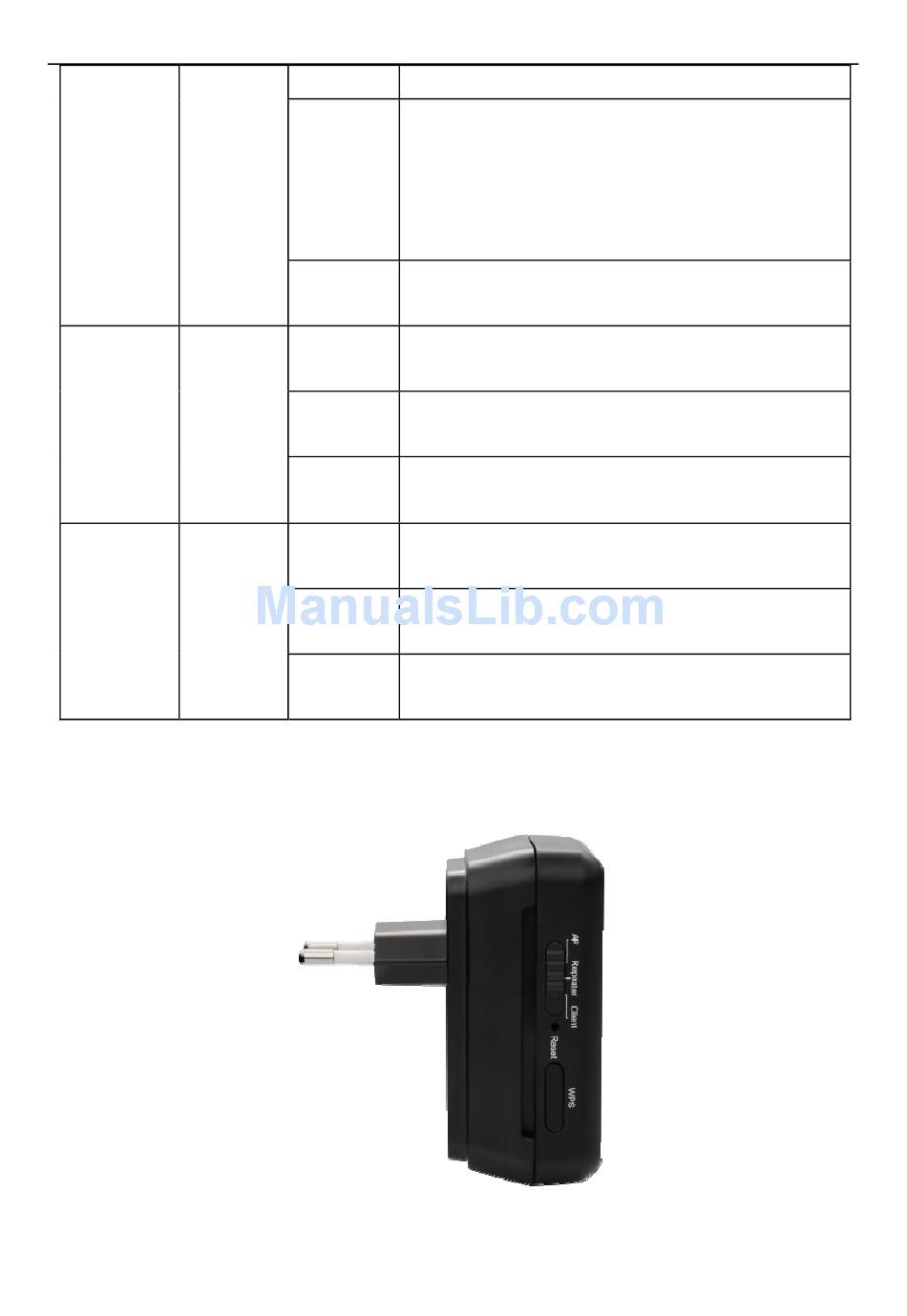

Table 4.2 SMCWEB-N2 interface and button status
blink SMCWEB-N2 through WPS but fails.
Quick
blink Multiple terminals are connecting to the
with a SMCWEB-N2 through WPS at the same
certain time. WPS sessions conflict.
interval
Slow
The WPS session is up.
blink
The Ethernet port is in the
Off
non-communication state.
The Ethernet port is in the communication
On
state.
The Ethernet port is transmitting and
Blink
receiving data.
The WLAN connection is in the
Off
non-communication state.
The WLAN connection is in the
On
communication state.
Data is being transmitted and received in the
Blink
WLAN.
