SMCWEB-N2 Wireless N Universal Repeater User Manual

6.1 Bridge Mode Configuration

Step 1 Set the three-way switch on the side panel to AP after SMCWEB-N2 is
powered on. Log in to the configuration page after the system is started.

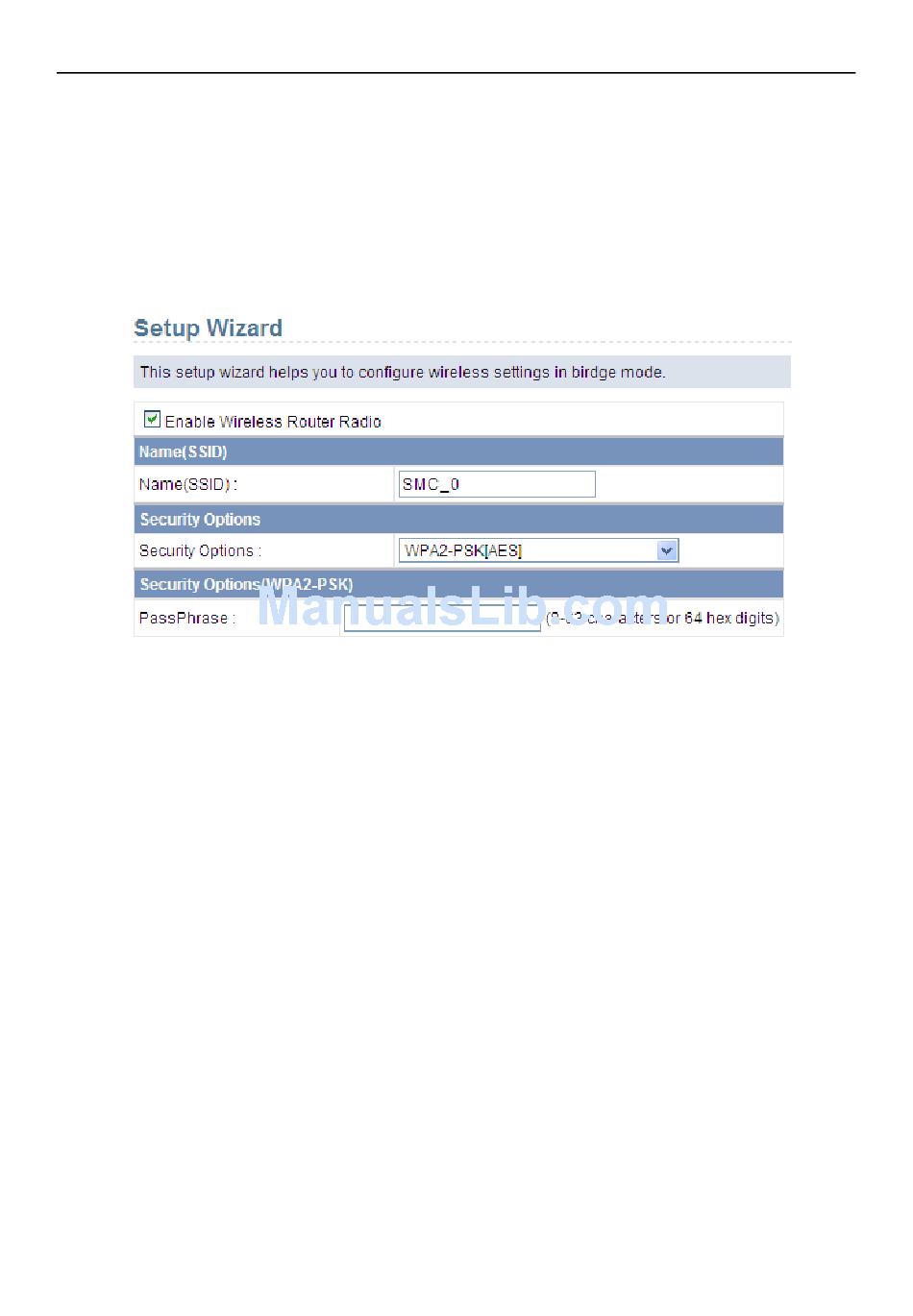

Step 2 Click Setup Wizard in the navigation bar on the left pane of the page.
Set the SSID and encryption password and note them down. Click
Finish to complete the settings.

6.2 Router Mode Configuration

Step 1 Set the three-way switch on the side panel to AP after SMCWEB-N2 is
powered on. Log in to the configuration page after the system is started.
Step 2 Click Mode Settings and select Router Mode. (The default mode is
Bridge Mode.)
Step 3 Connect your PC to SMCWEB-N2 using a wireless network adapter
after SMCWEB-N2 is restarted successfully. Log in to the configuration
page. Click Setup Wizard in the navigation bar on the left pane of the
page. Select Yes and click Next. SMCWEB-N2 will automatically detect
the broadband type.
Step 4 SMCWEB-N2 can detect three types of broadband: DHCP, Static IP, and
PPPoE. Perform configurations according to the broadband type you are
using.
Parameter configuration for DHCP
- 29 -
