SMCWEB-N2 Wireless N Universal Repeater User Manual

8.4.2 WAN Interface Settings

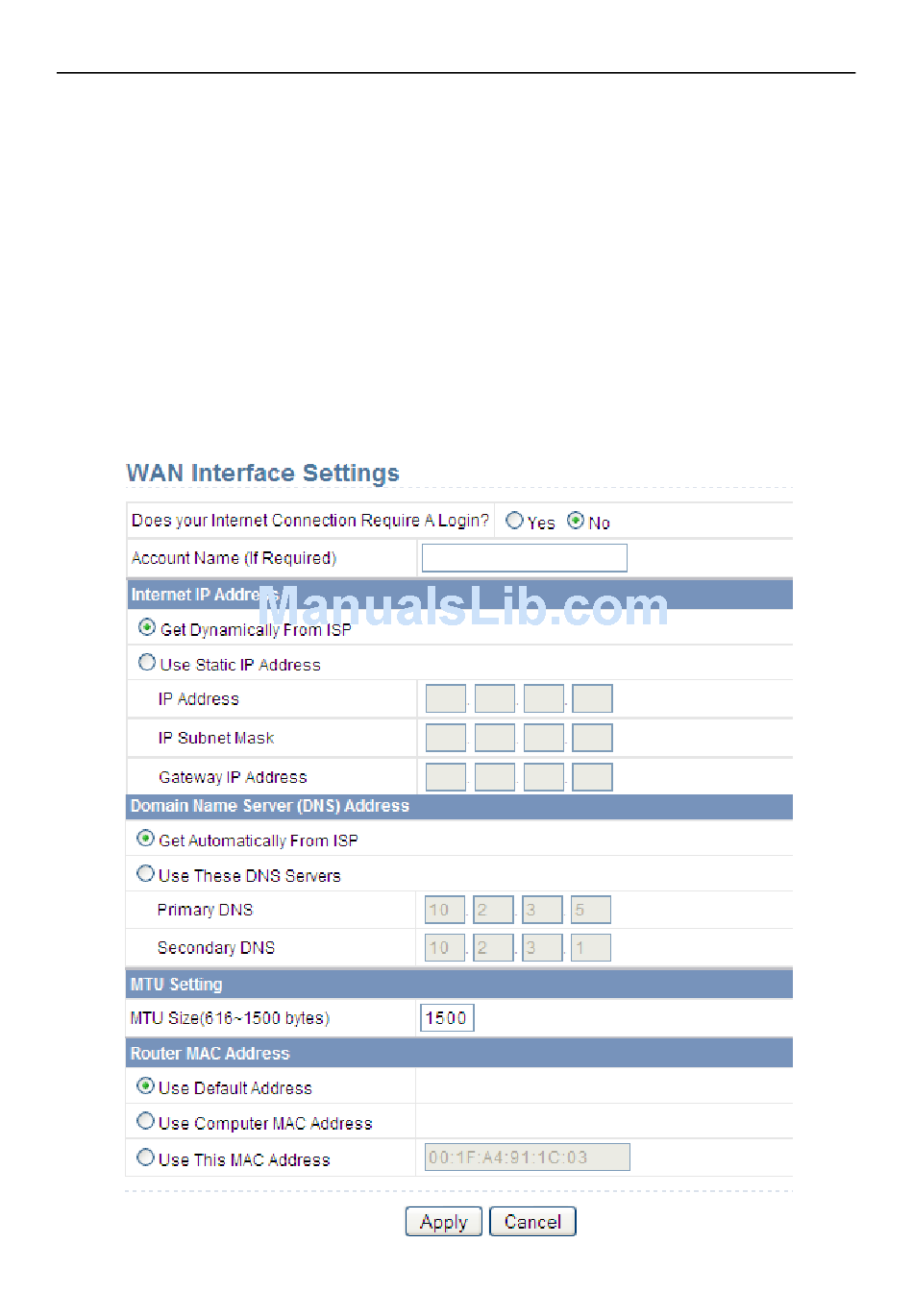

Choose Network Settings > WAN Interface Settings and the WAN Interface
Settings page is displayed.
The router supports 5 modes of WAN connection, including Dynamic IP (DHCP),
Static IP, PPPoE, PPTP, and L2TP. Select the WAN connection you use. Contact
your ISP if you do not know your WAN connection mode.
(1) Dynamic IP (DHCP)
If you select dynamic IP (DHCP), SMCWEB-N2 automatically obtains the IP
address from the ISP automatically. Select DHCP when the ISP does not provide
any IP network parameters. See the following figure:
- 64 -
