2.0 Installing the rack hardware
Connect the Ethernet port to your management network.
1.
Attach the SmartNode
to the equipment rack

3.0 Connecting to the VoIP Network

Connect a CAT5 Ethernet cable to VoIP0 at the rear of the SN10100. Connect the other end of the same
1.
CAT5 cable to the Gigabit Ethernet switch.
2. If your system employs a second Gigabit Ethernet switch for redundancy, connect a second CAT5 Ethernet
cable to VoIP1and the other end to the second Gigabit Ethernet switch.
4

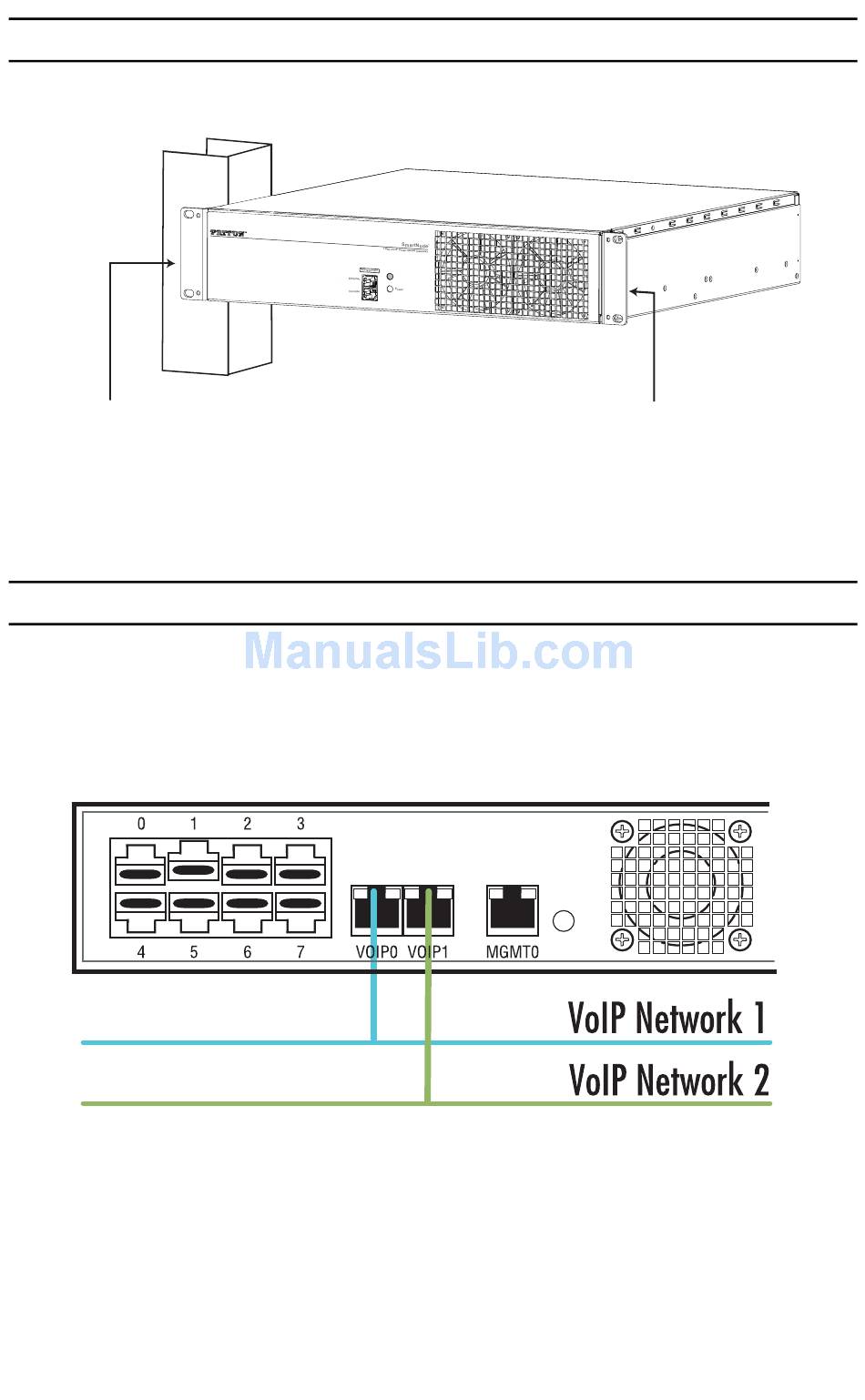

Figure 1.
Installing the SN10100
Figure 2. Connecting the VoIP ports
Attach the bracket
to the SmartNode
