Power up the SN10100 by turning on its power switch(es).
2.
5.2 DC Power
The SN10100 DC models are furnished with one or two DC power connection ports and is supplied with two DC
power cables.
Connect one DC cable to the DC outlet at the rear of the SN10100
1.
Connect one lead of the DC power cable to the positive terminal of the DC power source.
2.
Connect the other lead of the DC power cable to the negative side of the DC power source.
3.
4. Repeat steps 1-3 for the second DC power source, if necessary.
6

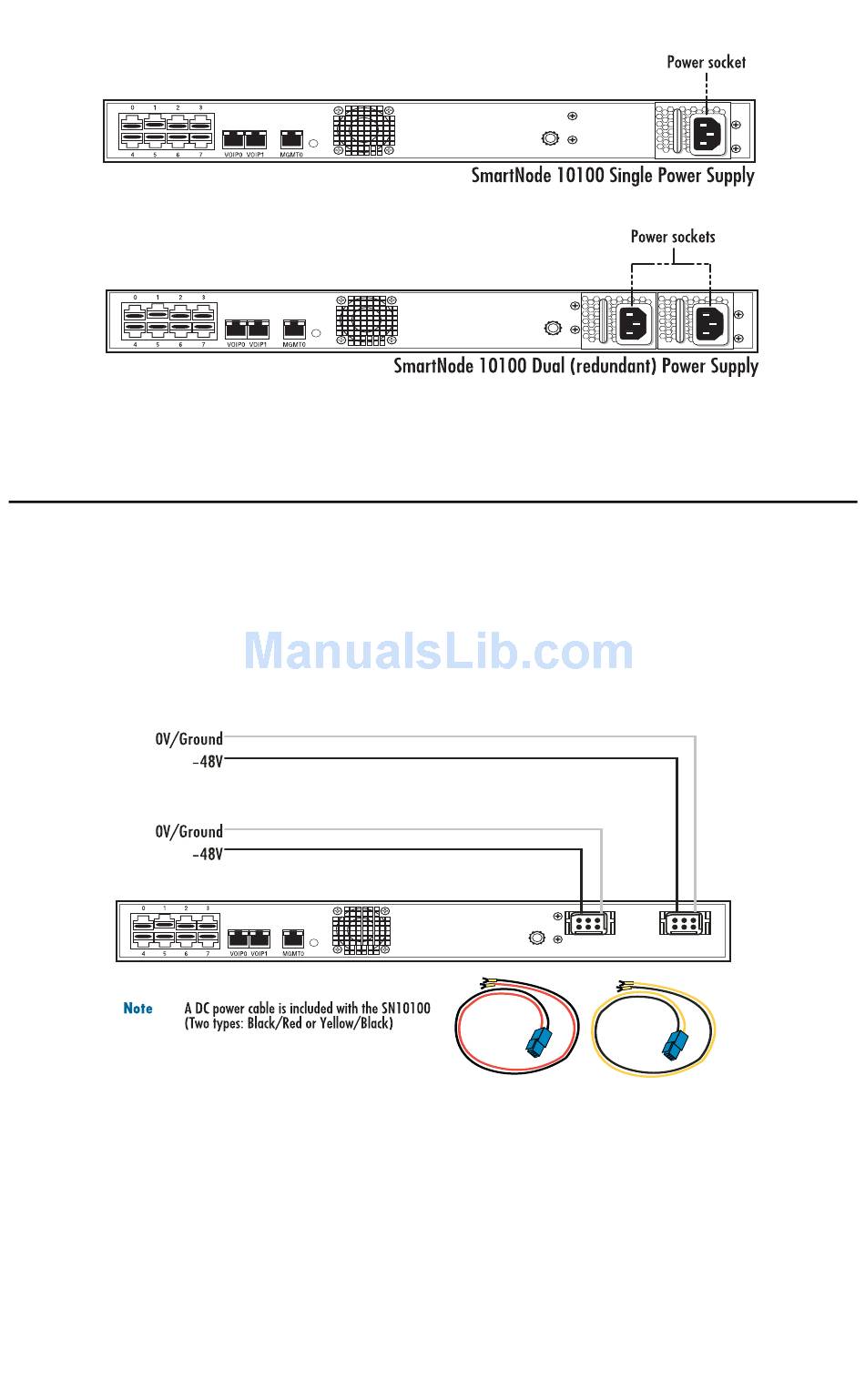

Figure 4.
AC Power Connection(s)
Figure 5.
DC Power Connection(s)
SmartNode 10100 Series Quick Start Guide
