HD CTL 100 Workspace Controller • Setup Guide
Attaching a Logitech
This supplementary setup guide provides instructions for
setting up the HD CTL 100 with the Logitech Tap.
The Extron HD CTL 100 is a compact workspace controller
designed for automatic display control in small meeting
rooms and huddle spaces. It features an HDMI pass-through
port that detects signal presence and can facilitate automatic
display power. When an active signal is connected to the
HDMI input from the Logitech Tap, the HD CTL 100
automatically turns on the display via CEC control. When
no signal is detected, the HD CTL 100 powers off the display
after a predetermined period.
NOTE: For more details about installation, configuration,
and operation, see the HD CTL 100 User Guide,
available at www.extron.com.

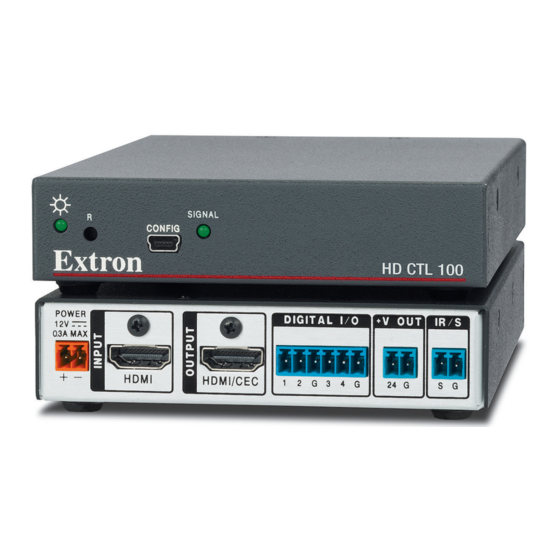

HD CTL 100 Panels

The front and rear panel connectors include:
Rear Panel
POWER
12V
0.3A MAX
HDMI HDMI/CEC
A A B B C C
A
Power input connector
B
HDMI input connector
C
HDMI/CEC output connector
D
Digital I/O ports
Figure 1. HD CTL 100 Rear and Front Panels

Connecting the Logitech Tap to the HD CTL 100

1. Connect the supplied Logitech power supply to the Tap Power connector (see figure 2).
POWER
Power USB-C
Figure 2. Tap Rear Connections
® Tap
DIGITAL I / O +V OUT
1 2 G 3 4 G
24 G
D D E E
E
Voltage output connector
F
IR/S control connector
G
Power LED
USB-C HDMI
USB-A
HDMI USB-A

Example of Logitech Tap Room Setup

G H H
IR / S
R
CONFIG
S G
F F I I J J
H
Reset button
I
USB configuration port
J
Signal LED
HD CTL 100
(HDMI & CEC)
Logitech
MeetUp
logi logi
Logitech Tap
Laptop
(HDMI)
SIGNAL
HD CTL 100
Intel NUC
tech tech
Front Panel
