CEM312/313 COM Express Type 6 Compact Module

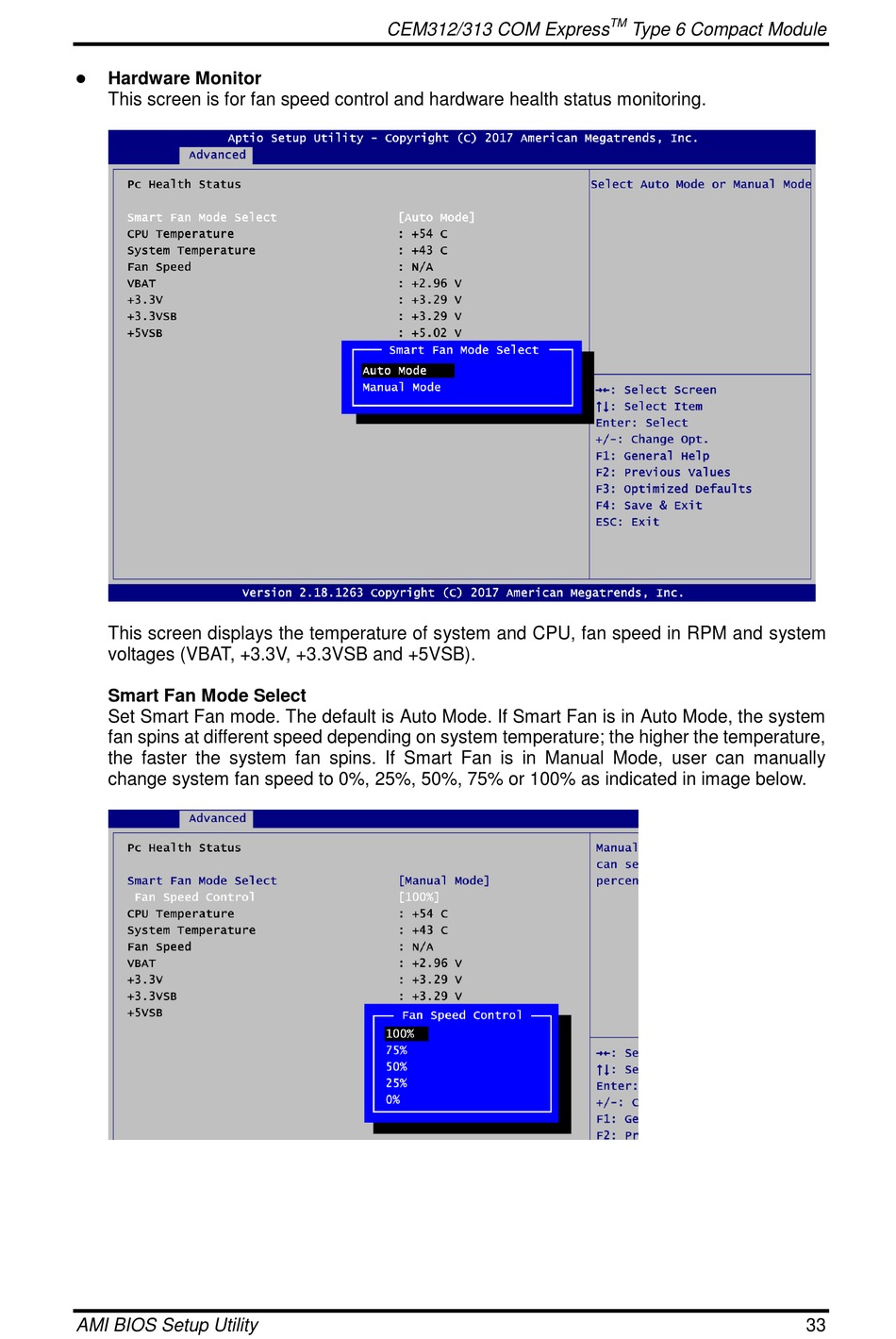

 Hardware Monitor
This screen is for fan speed control and hardware health status monitoring.
This screen displays the temperature of system and CPU, fan speed in RPM and system
voltages (VBAT, +3.3V, +3.3VSB and +5VSB).
Smart Fan Mode Select
Set Smart Fan mode. The default is Auto Mode. If Smart Fan is in Auto Mode, the system
fan spins at different speed depending on system temperature; the higher the temperature,
the faster the system fan spins. If Smart Fan is in Manual Mode, user can manually
change system fan speed to 0%, 25%, 50%, 75% or 100% as indicated in image below.
AMI BIOS Setup Utility 33
