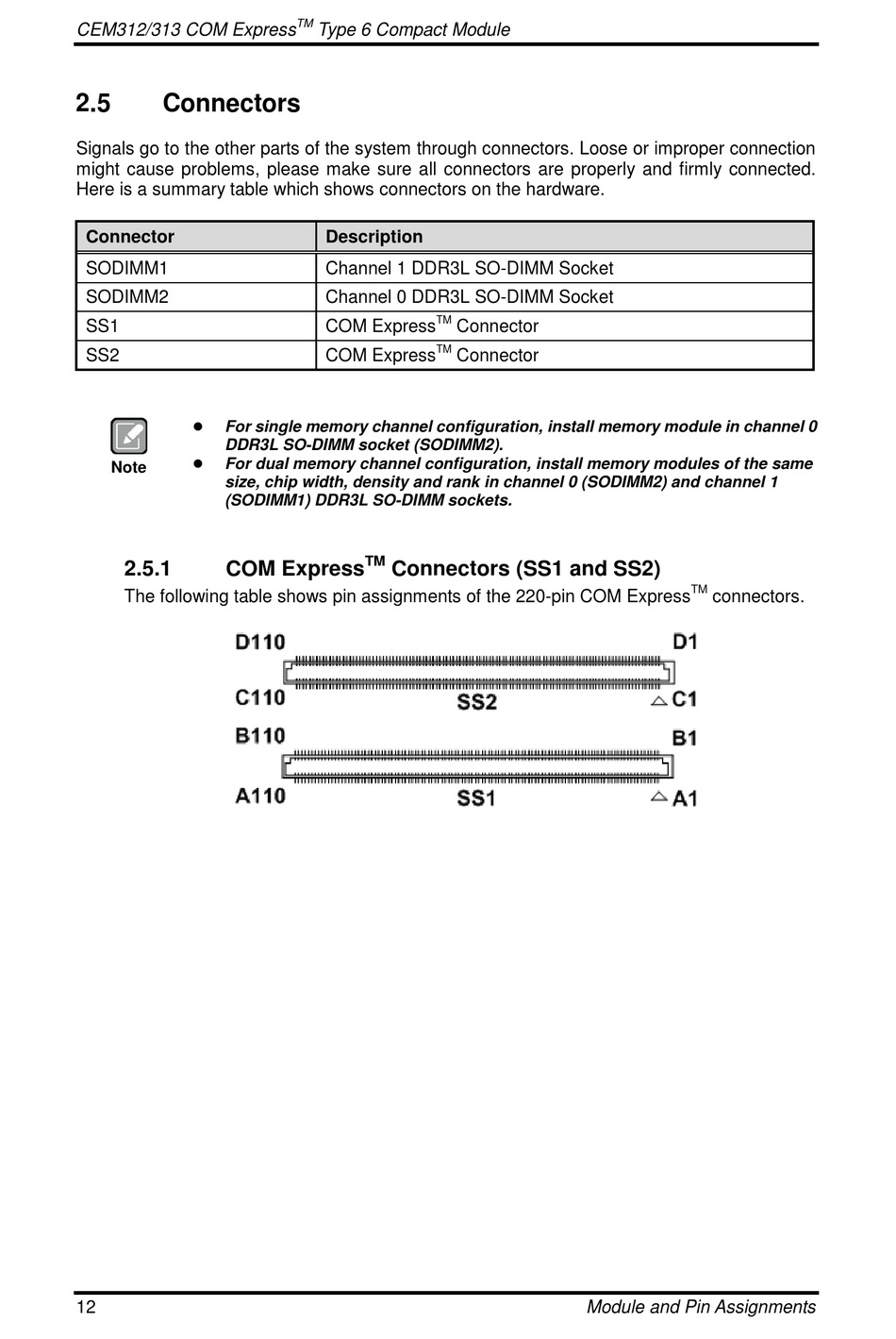

Connectors

Signals go to the other parts of the system through connectors. Loose or improper connection
might cause problems, please make sure all connectors are properly and firmly connected.
Here is a summary table which shows connectors on the hardware.
Connector
SODIMM1
SODIMM2
SS1
SS2

For single memory channel configuration, install memory module in channel 0
DDR3L SO-DIMM socket (SODIMM2).

For dual memory channel configuration, install memory modules of the same
Note
size, chip width, density and rank in channel 0 (SODIMM2) and channel 1
(SODIMM1) DDR3L SO-DIMM sockets.
2.5.1 COM Express
The following table shows pin assignments of the 220-pin COM Express
12
TM
Type 6 Compact Module
Description
Channel 1 DDR3L SO-DIMM Socket
Channel 0 DDR3L SO-DIMM Socket
TM
COM Express Connector
TM
COM Express Connector
TM
Connectors (SS1 and SS2)
TM
connectors.
Module and Pin Assignments
