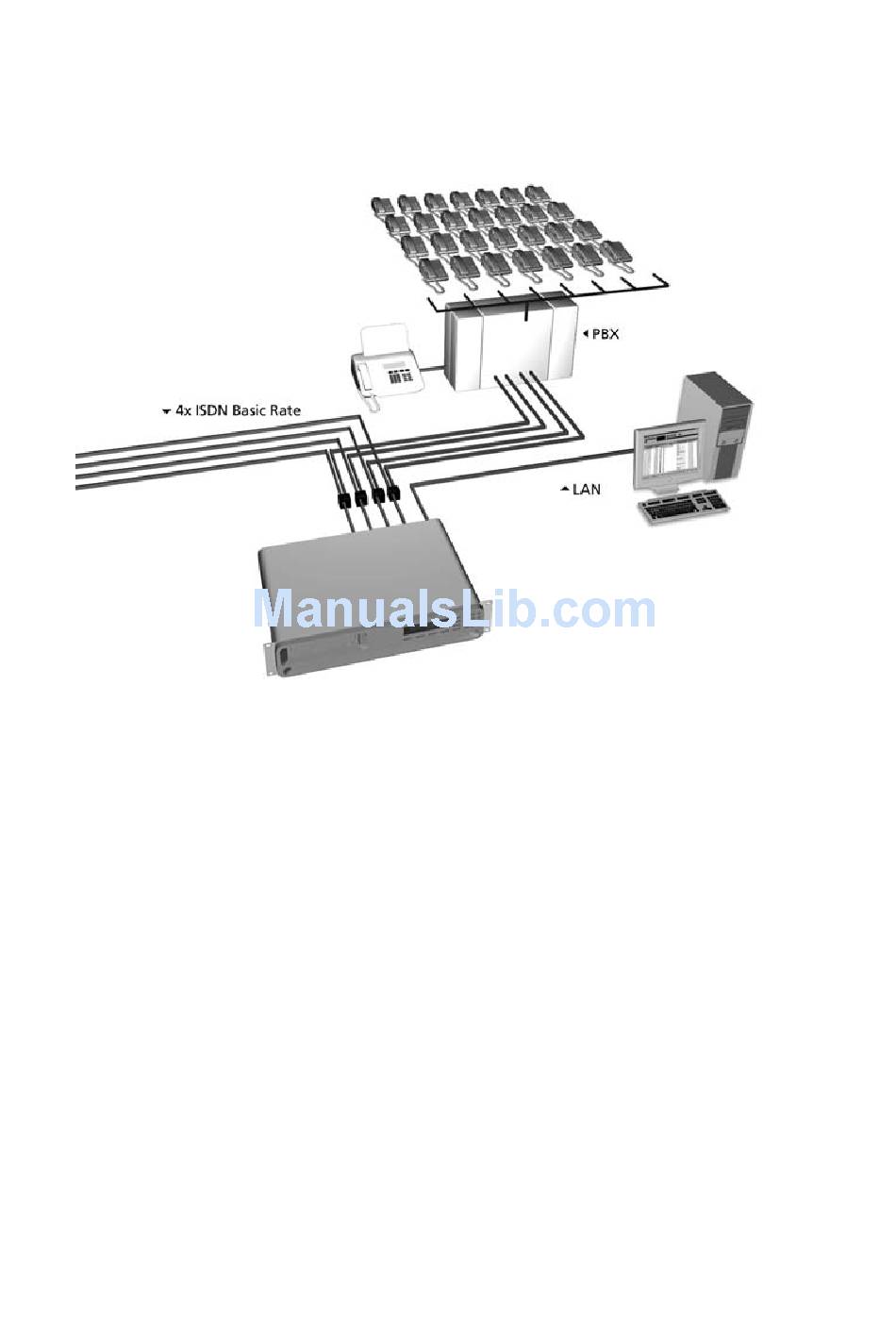

The figure below is an example of a possible setup of the Call Recorder
ISDN II, using the 19" model.
2.4.2

Alternative way to connect

Some users do not like to disconnect the lines when they install a Call
Recorder. They prefer to connect the Call Recorder the way other ISDN
terminal equipment is used on a point to multipoint basic rate line in a
star like network structure.
This alternative connection method is a possibility. The drawback
however is that pass through mode with all its advantages is not
possible.
To use the alternative method to connect you must use a traditional
ISDN T-adapter and a 4 wire ISDN cable for the connection to the
recorder. When the Call Recorder is added to the little point to
multipoint network it can passively record all equipment connected.
Please note: It is important that you use a 4 wire cable for this
connection method. If you are in doubt about the correct connection
method for this alternative, order the T-adapters and 4 wire cables from
your Call Recorder dealer.
