2.3 Connecting the ISDN lines
2.3.1
Connecting to E1 Primary Rate ISDN
The Call Recorder PRI is connected in series to the E1 ISDN line between
the line port and other equipment. With the Call Recorder PRI you have
received a cable with two RJ45 connectors. This cable is used to connect
the Call Recorder PRI to the wall socket. The existing cable can be used

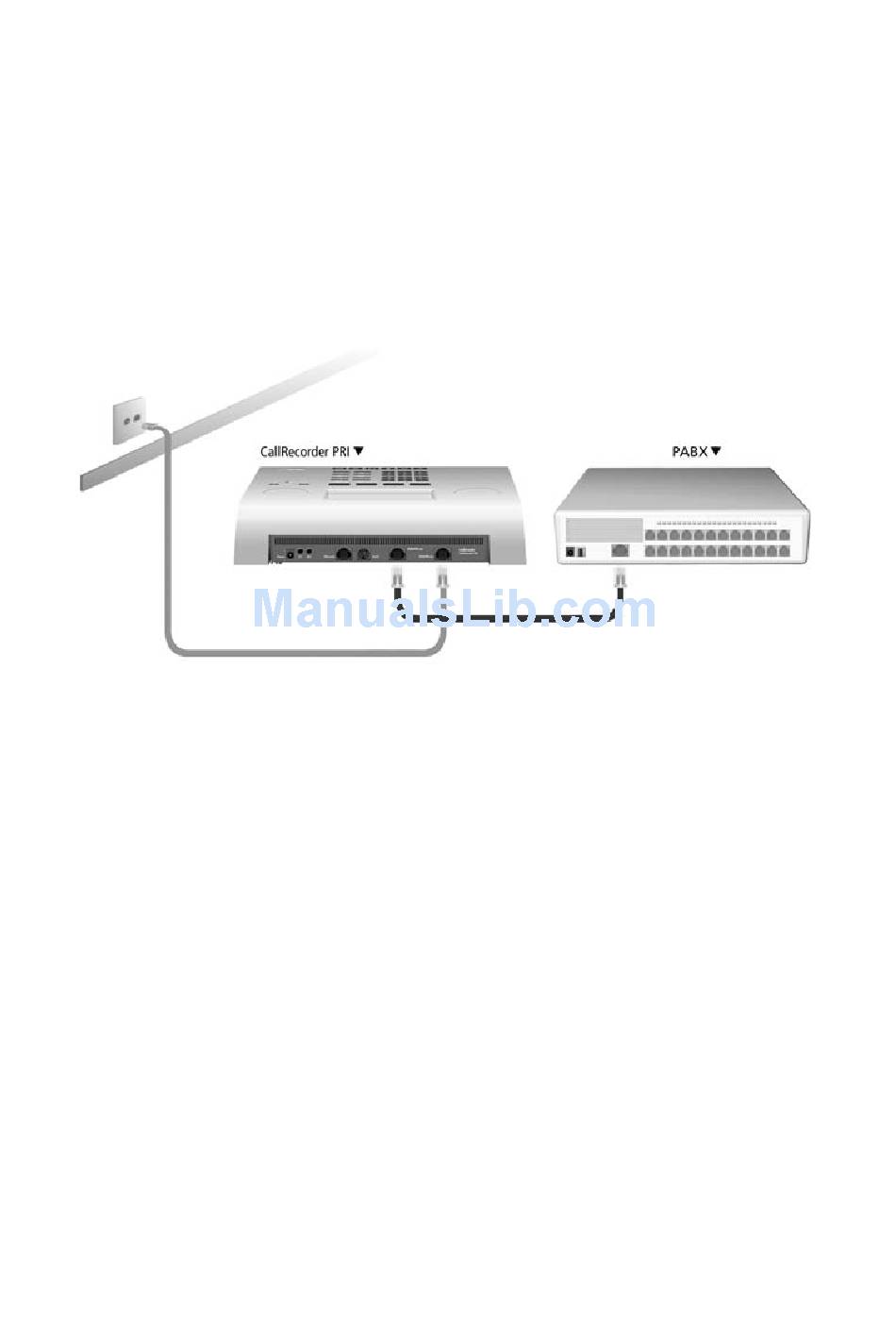

to connect the Call Recorder PRI to the PBX as is shown in the figure
below.
As explained in the introduction, the Call Recorder can work in pass
through mode where it is processing the complete data stream and in
passive mode where it is just listening. Although this is a substantial
difference it does not affect the connection to the line. It is controlled
internally with relays and can be configured in software.
Call Recorder PRI ISDN manual ©-Vidicode 2008
