Web interface: Quick access to the MSX-E system

MSX-E1701
6 Web interface: Quick access to the MSX-E system

6.1 "I/O Configuration"

In this manual, the function-specific pages of the MSX-E1701 web interface, which are located under
the menu item "I/O Configuration", are described.
For further information on the MSX-E web interface, please refer to the general manual of the MSX-E
systems (see PDF link).

6.1.1 Menu item "Digital I/O"

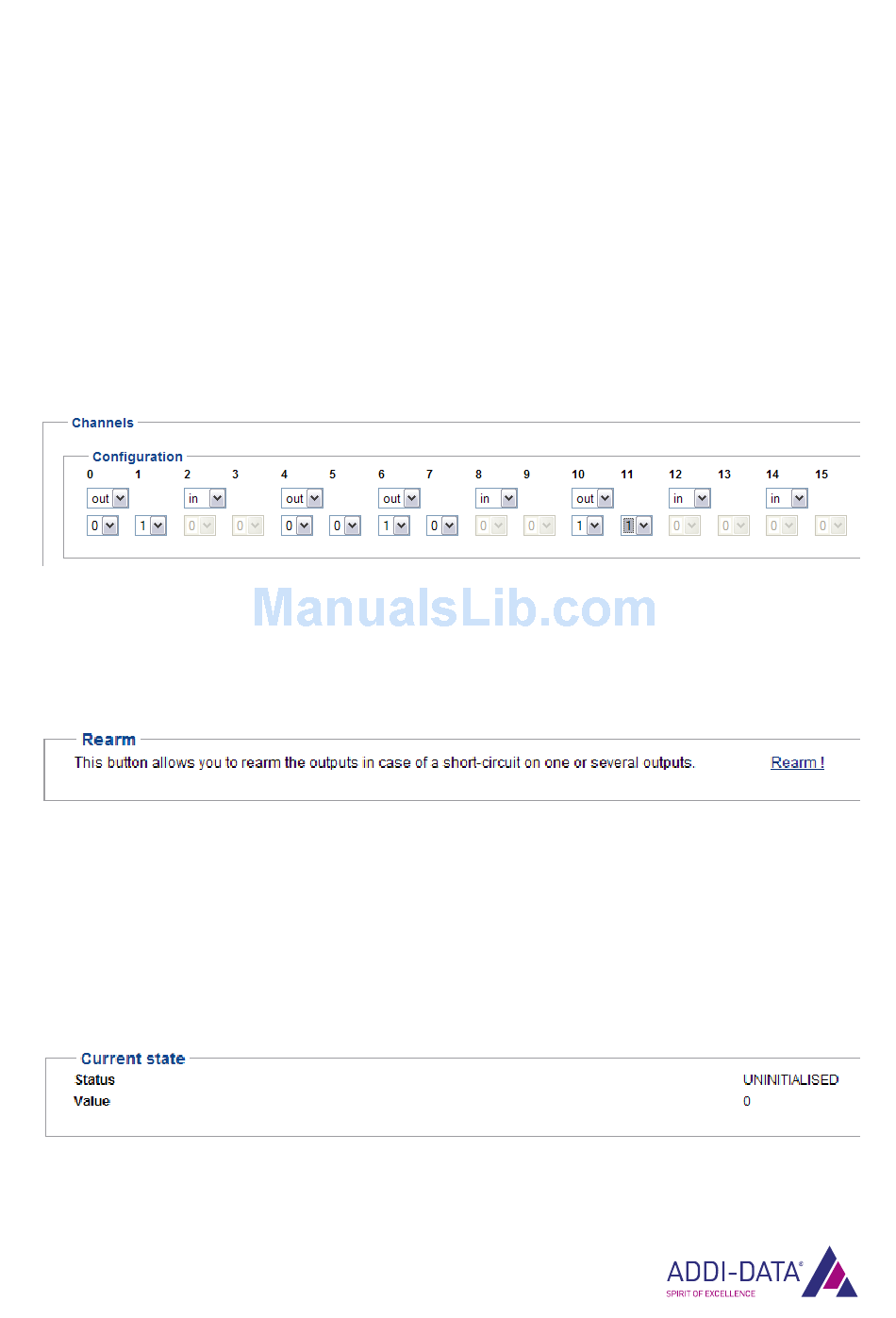

Fig. 6-1: Digital I/O: Channels

On this page, you can configure the digital channels as pairs of inputs or outputs. For each output, also
the status (0 or 1) has to be defined.

Fig. 6-2: Digital I/O: Rearm

After a short-circuit occurred, the required rearm (see Chapter 4.4) can be carried out via the
correspondent button.

6.1.2 Menu item "I/O Watchdog"

Fig. 6-3: I/O Watchdog: Current state

On this page, the current status of the watchdog for the digital inputs and outputs is displayed.
www.addi-data.com
27
