Connection Examples; Digital Inputs (24 V); Fig. 4-1: Connection Example: Digital Inputs (24 V) - Addi-Data MSX-E1701 Technical Description

Function description: Digital inputs/outputs MSX-E1701

4.3 Connection examples

4.3.1 Digital inputs (24 V)

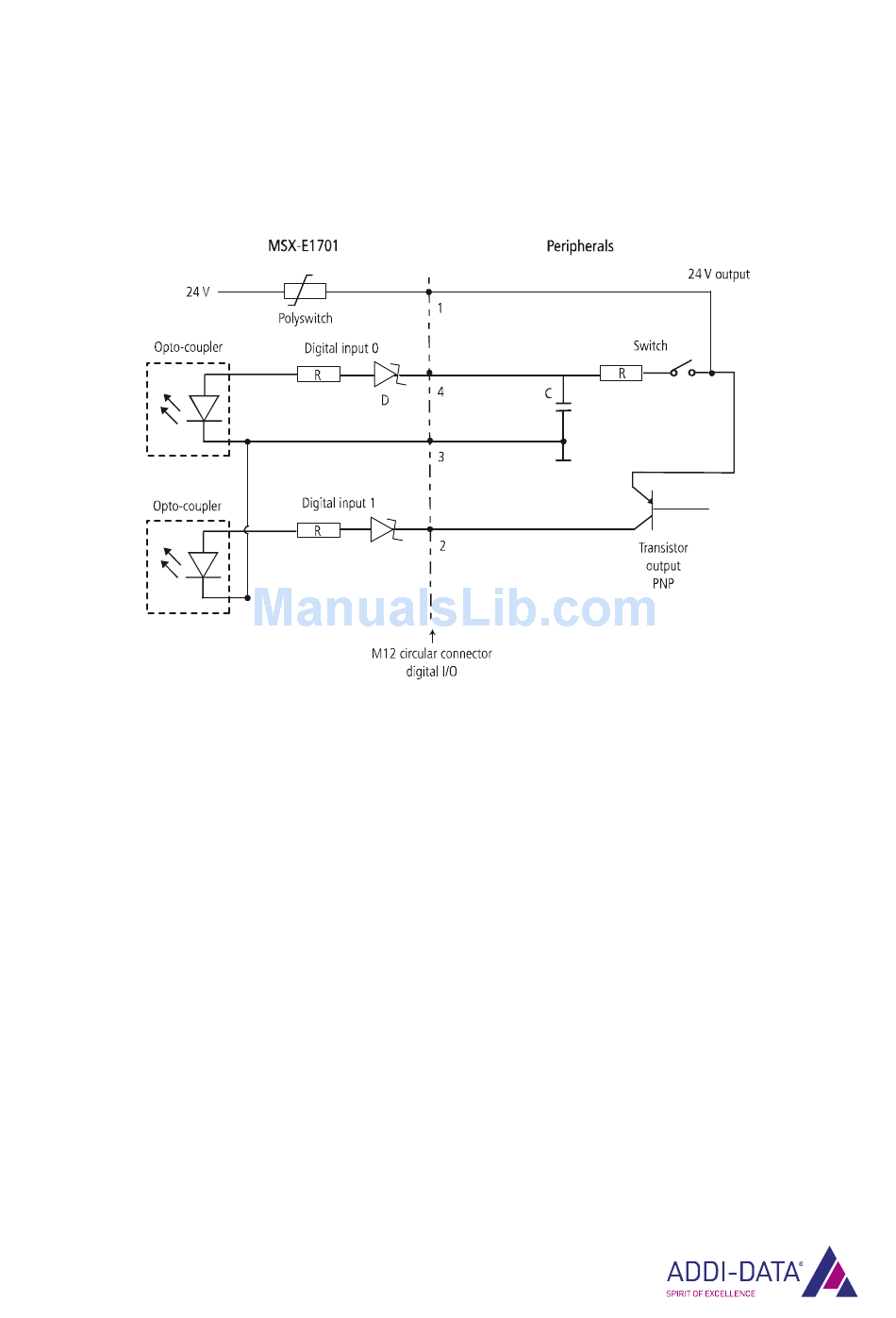

Fig. 4-1: Connection example: Digital inputs (24 V)
