Web interface: Quick access to the MSX-E system
MSX-E1701

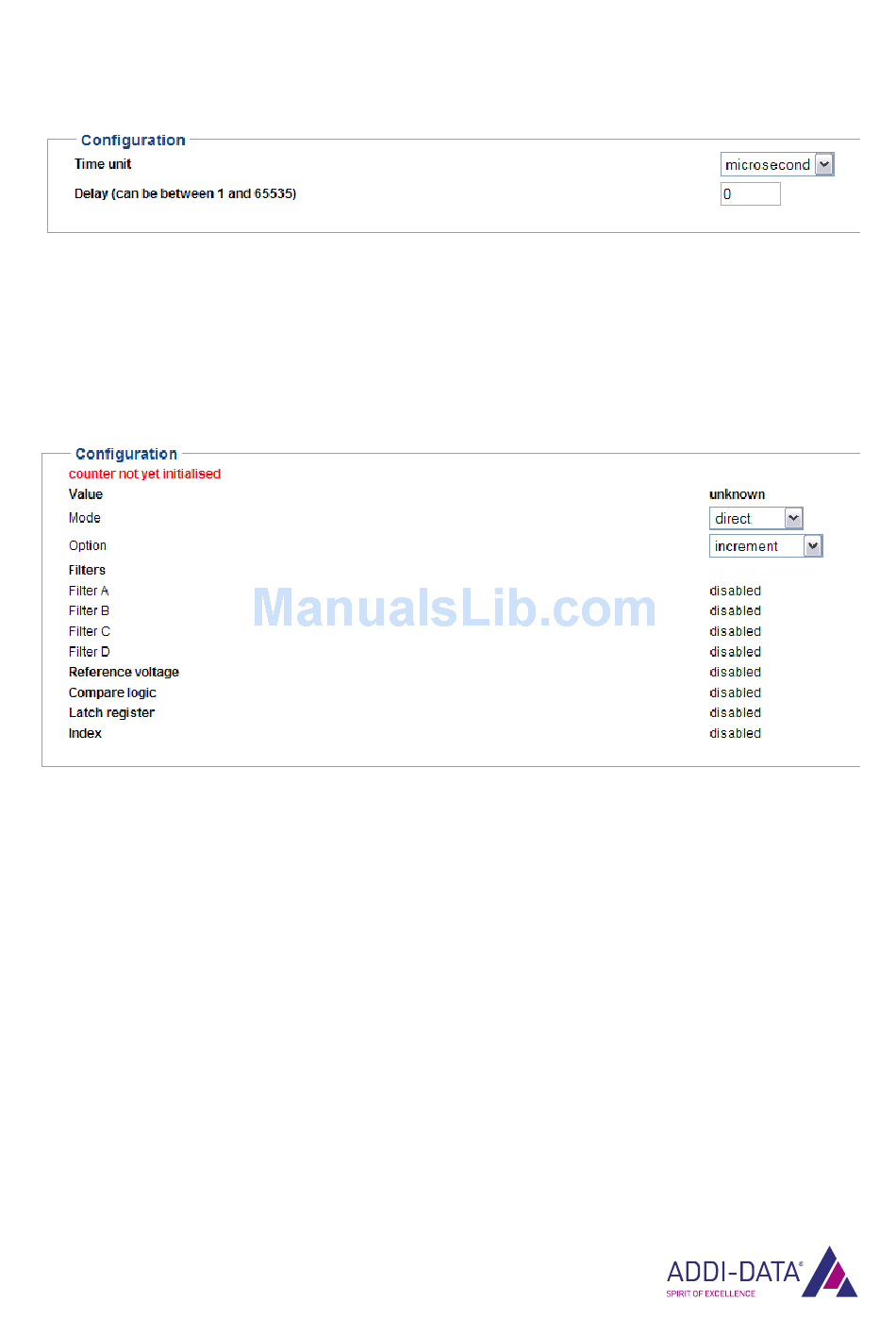

Fig. 6-4: I/O Watchdog: Configuration

You can configure the watchdog by defining the time unit and the watchdog time.

6.1.3 Menu item "Incremental counter"

Fig. 6-5: Incremental counter: Configuration

In this section, you can select the acquisition mode of the incremental encoder signal and the
corresponding options. A description of these is to be found in Chapter 3.5.
Moreover, you can see in this section if the following options are activated:
digital filter of the incremental counter inputs A to D, reference voltage for TTL signal, compare logic,
latch register of the synchro trigger and index logic.
www.addi-data.com
28
