Technical data and limit values

7 Technical data and limit values

7.1 Electromagnetic compatibility (EMC)

The Ethernet system MSX-E1701 complies with the European EMC directive. The tests were carried out
by a certified EMC laboratory in accordance with the norm from the EN 61326 series (IEC 61326).
The limit values as set out by the European EMC directive for an industrial environment are complied
with.
The respective EMC test report is available on request.

7.2 Mechanical structure

Weight:
www.addi-data.com

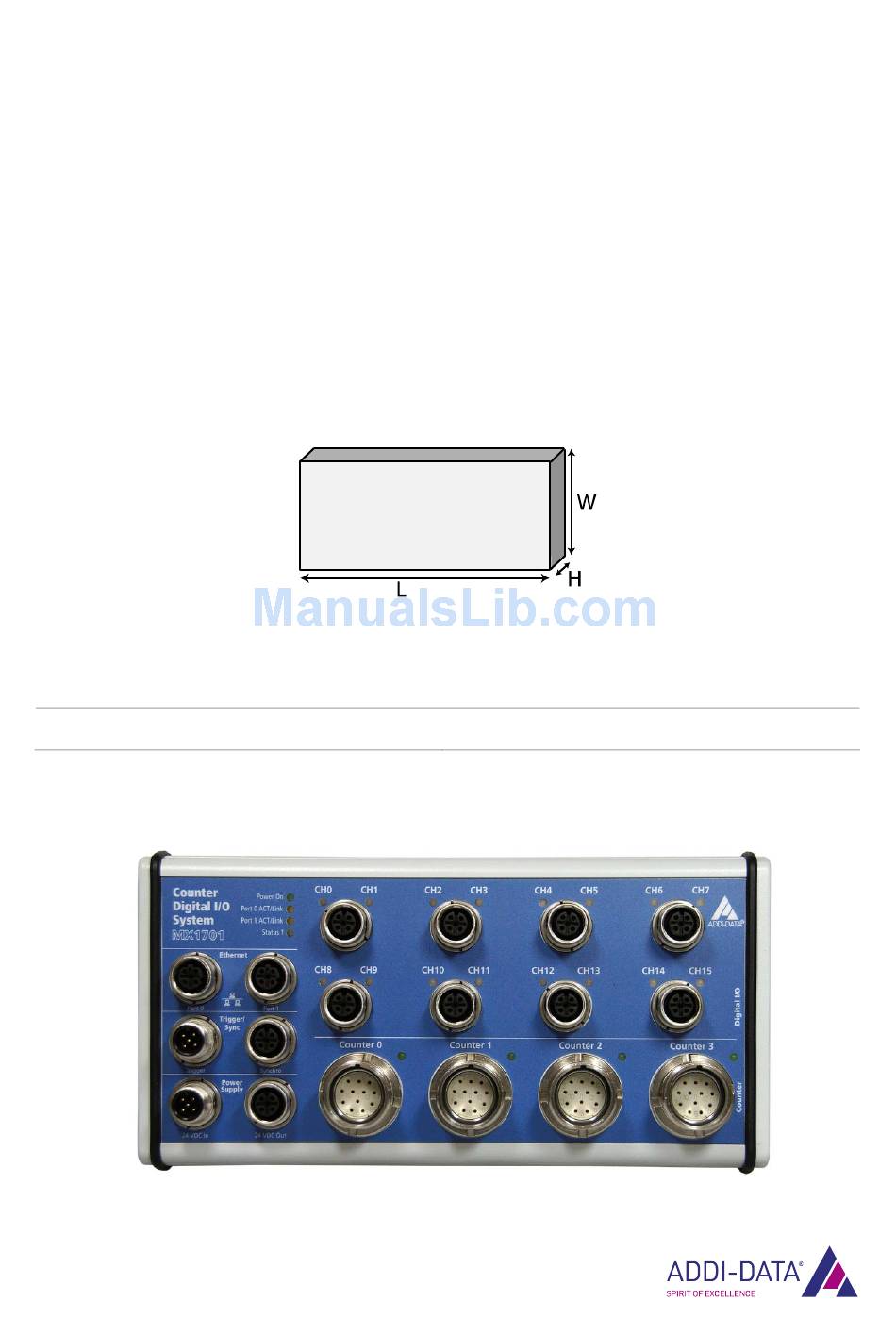

Fig. 7-1: MSX-E1701: Dimensions

215 mm (L) x 110 mm (W) x 54 mm (H)
900 g
960 g (with MX-Rail)

Fig. 7-2: MSX-E1701: View from above

31
MSX-E1701
