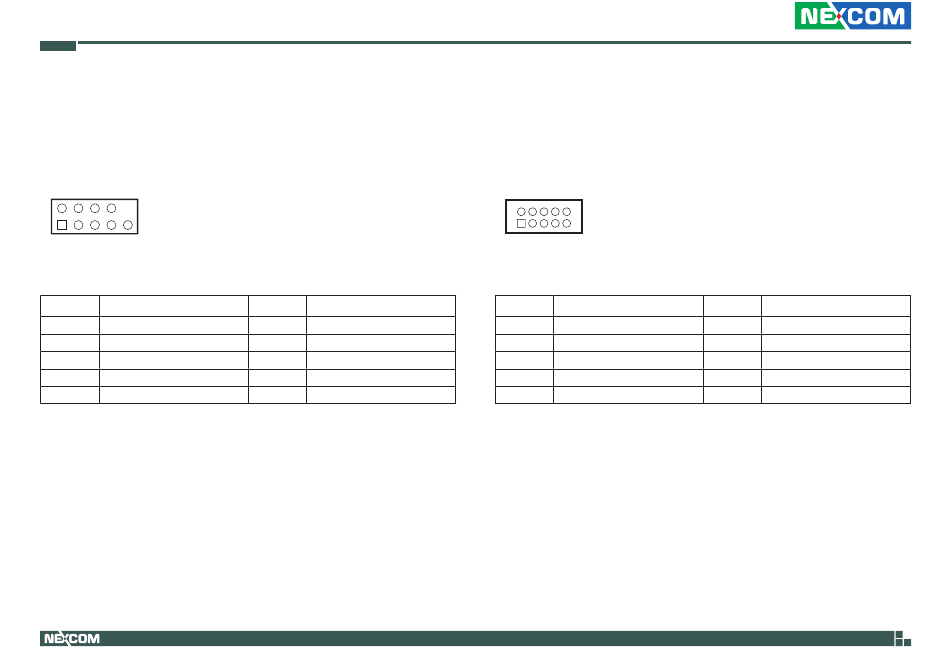

System Panel Connector

Connector type: 2x5 10-pin header
Connector location: F_PANEL
2 10
1 9
Pin Definition
1 HDD_LED+
3 HDD_LED-
5 Ground
7 HWRST#
9 NC
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 PWR_LED+
4 PWR_LED-
6 PWR
8 GND
10

Digital I/O Connector

Connector type: 2x5 10-pin header
Connector location: DIO1
2 10
1 9
Pin Definition
1 DIO_I#1
3 DIO_I#3
5 DIO_O#1
7 DIO_O#3
9 +5V
13
Pin Definition
2 DIO_I#2
4 DIO_I#4
6 DIO_O#2
8 DIO_O#4
10 GND
