EVALUATION BOARD SOFTWARE

SOFTWARE INSTALLATION PROCEDURES

The EVAL-AD7176-2SDZ evaluation kit includes a CD
containing software to be installed on your PC before you begin
using the evaluation board.
There are two parts to the installation:
•
AD7176-2 evaluation board software installation
•
EVAL-SDP-CB1Z system demonstration platform board
drivers installation
Warning
The evaluation software and drivers must be installed before
connecting the evaluation board and
the USB port of the PC to ensure that the evaluation system is
correctly recognized when it is connected to the PC.
Installing the AD7176-2 Evaluation Board Software
To install the AD7176-2 evaluation board software,
1. With the EVAL-SDP-CB1Z
USB port of the PC, insert the installation CD into the CD-
ROM drive.
2. Double-click the setup.exe file to begin the evaluation board
software installation. The software is installed to the
following default location: C:\Program Files\Analog
Devices\AD7176-2.
3. A dialog box appears asking for permission to allow the
program to make changes to your computer. Click Yes.

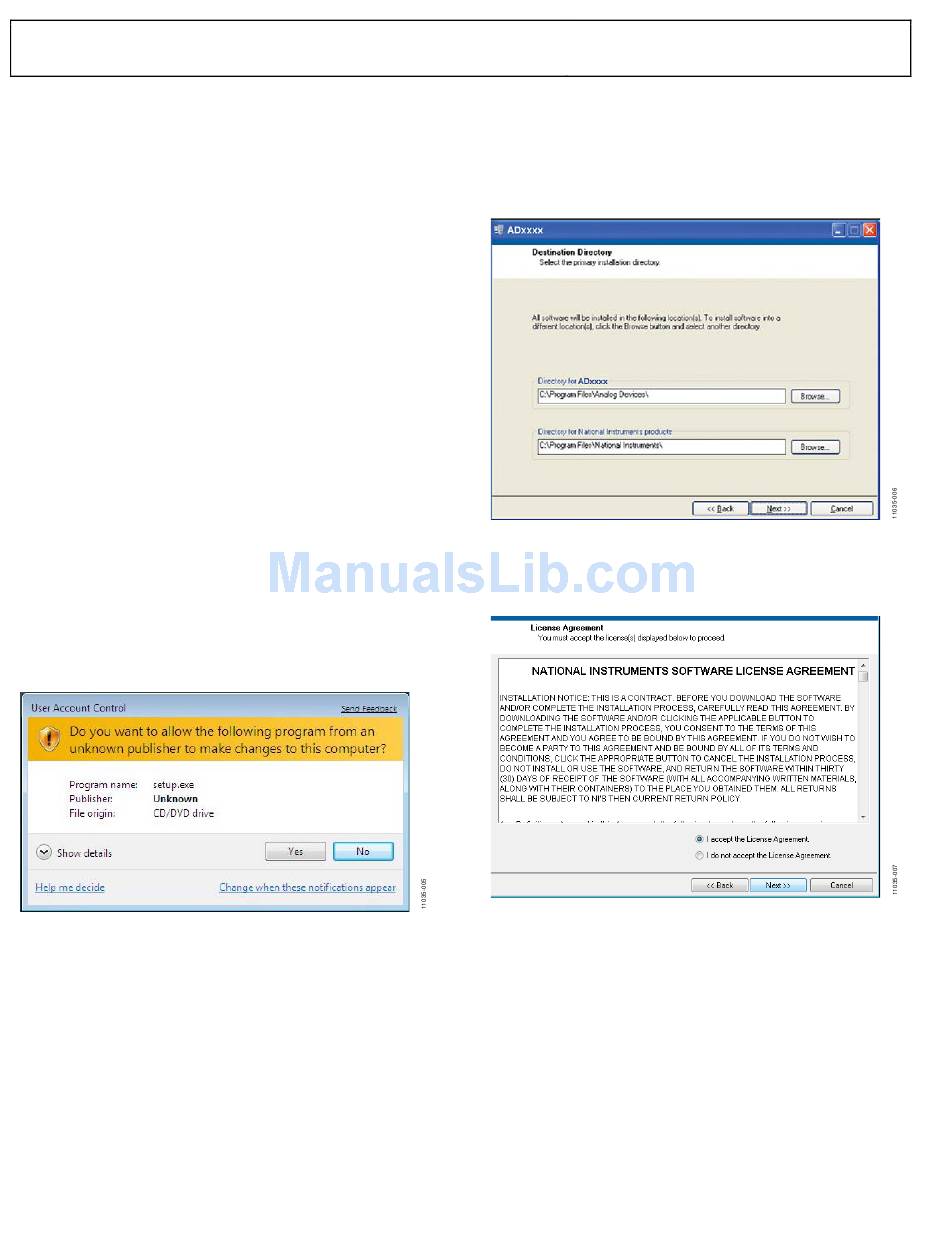

Figure 8. AD7176-2 Evaluation Software Installation:
Granting Permission for the Program to Make Changes to Your Computer
EVAL-SDP-CB1Z board to
board disconnected from the
Rev. 0 | Page 12 of 40
Evaluation Board User Guide
4. Select the location to install the software, and then click Next.
(Figure 9 shows the default locations, which are displayed
when the window opens, but you can select another location
by clicking Browse.)
Figure 9. AD7176-2 Evaluation Software Installation:
Selecting the Location for Software Installation
5. A license agreement appears. Read the agreement, and then
select I accept the License Agreement and click Next.
Figure 10. AD7176-2 Evaluation Software Installation:
Accepting the License Agreement
