Evaluation Board User Guide
EVAL-AD7176-2SDZ
To begin using the evaluation board, do the following:
1. With the EVAL-SDP-CB1Z
USB port of the PC, install the
software from the CD included in the evaluation board kit.
The PC must be restarted after the software installation is
complete. (For complete software installation instructions,
see the Software Installation Procedures section.)
2. Connect the EVAL-SDP-CB1Z
AD7176-2SDZ board as shown in Figure 2.
a. Screw the two boards together using the plastic screw-
washer set included in the evaluation board kit to
ensure that the boards are connected firmly together.
QUICK START GUIDE
board disconnected from the
AD7176-2 evaluation board
board to the EVAL-

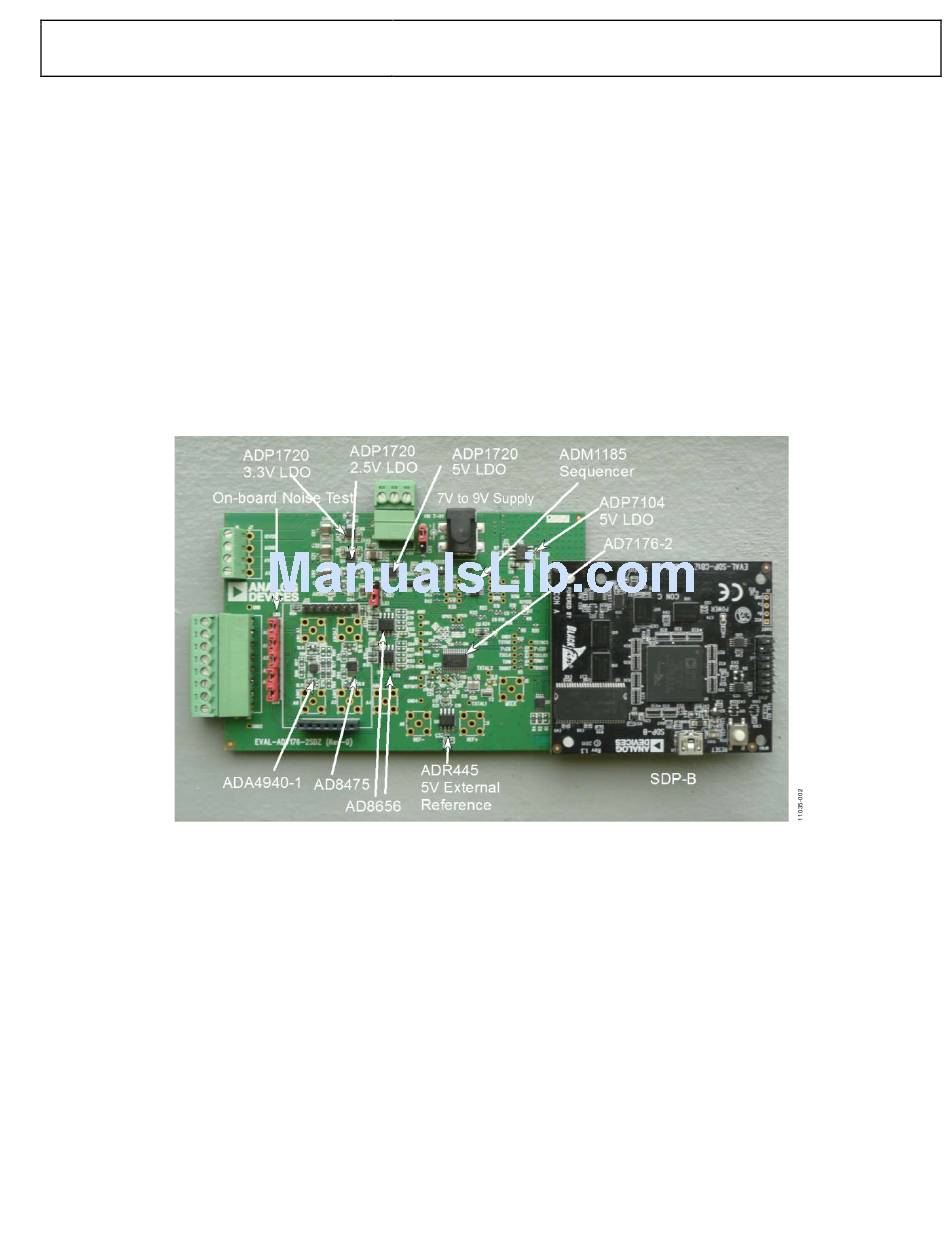

Figure 2. Hardware Configuration—Setting Up the
3. Apply an external voltage in the range of 7 V to 9 V to the
J4 or J5 connecter of the
shown in Figure 2 (see Table 3 for more information). This
provides the power supply for the board.
4. Connect the
supplied USB cable. If you are using Windows® XP, you may
need to search for the
automatically search for the drivers for the
CB1Z board if prompted by the operating system.
5. Launch the
Analog Devices subfolder in the Programs menu.
EVAL-AD7176-2SDZ
Rev. 0 | Page 3 of 40
EVAL-AD7176-2SDZ
EVAL-SDP-CB1Z board to the PC using the
EVAL-SDP-CB1Z
EVAL-AD7176-2SDZ software from the
UG-478
board, as
drivers. Choose to
EVAL-SDP-
