golmar G2+ Art 4 XLite User Manual

2-wire monitor
Hide thumbs Also See for G2+ Art 4 XLite:
Table of Contents

Advertisement

Quick Links

Download this manual
Kit Soul
TECHNOLOGY
G2+ 2-wire installation
Art 4
XLite
monitor
N REV.0124
TS5110 ART
4 X
LITE E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G2+ Art 4 XLite and is the answer not in the manual?

Questions and answers

Related Manuals for golmar G2+ Art 4 XLite

Summary of Contents for golmar G2+ Art 4 XLite

  • Page 1 Kit Soul TECHNOLOGY G2+ 2-wire installation Art 4 XLite monitor N REV.0124 TS5110 ART LITE E...

  • Page 2: Table Of Contents

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT CONTENTS Contents ..................................2 Recommendations..............................3 System operation ...............................3 FA-G2+/ LITE power supply ............................4 Description ..............................4 Installation ...............................4 Soul panel 4.3 /LITE .............................5 to 7 Description ..............................5 Installation ...............................6 Installation terminals ............................6 Configuration switches.............................7 Setting the audio level ............................7 Art 4 LITE...

  • Page 3: Recommendations

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT RECOMMENDATIONS - Preferably use a Golmar RAP-GTWIN/HF cable (2x1mm²). - The wiring must run at least 40cm away from any other wiring. Always disconnect the power supply before making modifications to the device.

  • Page 4: Fa-G2+/ Lite Power Supply

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT FA-G2+/ LITE POWER SUPPLY Description BUS(M) BUS(PL) A. Monitor Bus connection terminals. B. Door panel Bus connection terminals. C. Protective cover for the current input. D. Current input connection terminals. E. Detail of the current input terminals without protective cover.

  • Page 5: Soul Panel 4.3 /Lite

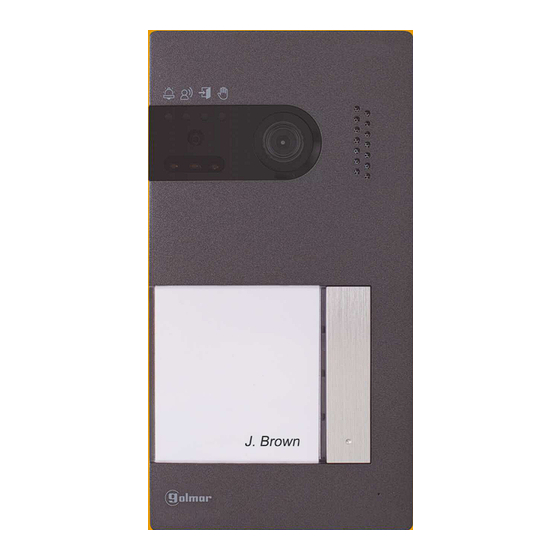

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT SOUL PANEL 4.3 /LITE Description A. System status icons: Call in progress. Communication established. Lock release activated. System busy. B. System status indicator lights. C. Ambient lighting sensor. D. Night viewing lighting. E.

  • Page 6: Installation

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT SOUL PANEL 4.3 /LITE Installation The door panel has been designed to withstand diverse environmental conditions. It is however advisable to take extra precautions to prolong its service life, such as locating it in a covered area. For optimum image quality, avoid direct contact from light sources (sunshine, street lights, etc.).
  • Page 7 SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT SOUL PANEL 4.3 /LITE Configuration switches (R) Configuration changes should be made with the equipment turned off. If they are performed with the equipment turned on, disconnect it for 10 seconds after any modification. All switches are factory set to OFF.
  • Page 8 Above these raised dots is the 'Door opening' button. G. Configuration switches. One press starts the auto-on function on door panel 1. Installation terminals Golmar Use. One press activates "staircase light" (requires SAR-G2+ and J. Wall mounting connector fixing (x4). SAR-12/24).

  • Page 9: Installation Terminals

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 XLITE/G2+ MONITOR Installation Avoid dusty or smoky environments or locations near sources of heat. For proper installation, use the template supplied with the product. 1. Position the top of the template at a height of 1.65m. 2.

  • Page 10: Function Buttons, Access And Selection Of Menu Functions

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 XLITE/G2+ MONITOR Function buttons, access and selection of menu functions Monitor in standby Description of the buttons on the front of the monitor, when the equipment is in standby (screen off), Press the push button to access the settings menu "Select melody", "call volume"...

  • Page 11: Settings Menu

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 XLITE/G2+ MONITOR Settings menu With the monitor in standby mode (screen off), press the push button to access the menu screen for "Select melody", "Call tone volume", "Do not disturb" mode and "Tone duration 45 seconds". Monitor in standby Settings menu Adjust call volume: Press the push button...
  • Page 12 SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 XLITE/G2+ MONITOR Settings menu Select "Do not disturb" mode: Press the push-button below the icon until you get to the maximum call tone volume setting, then press the push-button again selecting the "Do not disturb"...
  • Page 13 SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 XLITE/G2+ MONITOR Settings menu In order to identify the origin of the calls when you are not in front of the monitor, select different melodies and activate/deactivate the duration of the ringing tones 45 seconds.

  • Page 14: Door Panel Call Screen

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 XLITE/G2+ MONITOR Door panel call screen This screen is shown when receiving a call or pressing the push button on the monitor in standby. In a call the push buttons with function will be illuminated in white and the push button will blink in white.

  • Page 15: Communication Screen

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 XLITE/G2+ MONITOR Communication screen This display is shown during a communication process. During communication, the function buttons will be illuminated in white. The communication has a time of 90 seconds. Monitor volume settings.

  • Page 16: Installer Settings Menu

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 XLITE/G2+ MONITOR Installer settings menu With the monitor in standby (screen off), 5 quick presses on the push button to access the installer settings menu screen: "Master or slave", "Special codes", "Defaults" and " Image settings". Monitor in standby Installer settings menu 5 quick...
  • Page 17 SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 XLITE/G2+ MONITOR Installer settings menu QR code screen: Press the push button below the icon for 3 seconds, it will display a screen with a QR code that allows you to download the updated manual to your mobile or tablet, you need to have installed an App for QR reader.
  • Page 18 SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 XLITE/G2+ MONITOR Installer settings menu Then press the push button below the icon to execute this function, if you do not want to reset the monitor to default settings, press the push button below the icon to return to the installer...
  • Page 19 SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 XLITE/G2+ MONITOR Installer settings menu Adjust to the desired level by pressing the push buttons below the icons . To access the colour adjustment press the push button below the icon .

  • Page 20: Installer Settings Menu

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 XLITE/G2+ MONITOR Installer settings menu Then, the contrast adjustment screen will be displayed, change to the desired level by pressing the push buttons below icons. To return to the brightness adjustment (carousel mode) press the push button below the icon .

  • Page 21: Intercom Menu In The Apartment

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 XLITE/G2+ MONITOR Intercom menu (in the apartment) With the monitor in standby (screen off), press the push button to access the internal intercom menu screen (in the same apartment). From this menu you will be able to contact between two points in the same apartment.
  • Page 22 SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 XLITE/G2+ MONITOR Intercom menu (in the apartment) The communication has a duration of 90 seconds or until the push button is pressed. Monitor in communication Monitor ends communication 90"...

  • Page 23: Wiring Diagrams

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS Cross sections and distances - Maximum 1 apartment. ART 4 XLITE/G2+ ART 4 XLITE/G2+ - The maximum number of monitors in the apartment is 4. - The maximum number of monitors in cascade is 4. - Maximum two access door panels.

  • Page 24: One Apartment With Up To Two Access Panels And Up To Four Monitors In Cascade

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS One apartment with up to two access panels and up to four monitors in cascade SOUL/ LITE SOUL- /LITE ART 4 XLITE/G2+ ART 4 XLITE/G2+ ART 4 XLITE/G2+ DOOR PANEL 2 DOOR PANEL 1 APARTMENT 1 APARTMENT 1...

  • Page 25: Connection Of A Lock Release

    12Vd.c / 270mA If the lock release to be used is alternating current, use a relay and transformer suitable for the consumption, as well as the varistor supplied. The example shows a Golmar SAR-12/24 relay and a TF-104 transformer (12Vac/1.5A).

  • Page 26: Connection Of An Output Button

    2 . Connection of an external camera It is possible to connect a Golmar AHD4-3601x analogue CCTV camera to each of the door panels, which can be viewed (see pp. 2 2 ) from the monitor. The camera needs to have a local PSU-121 power supply.

  • Page 27: Special Codes

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer settings menu must be accessed from the monitor. With the monitor in standby (screen off), 5 quick presses on the push button to access the installer settings menu screen.
  • Page 28 SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. SPECIAL CODES Then, press the button below icon to select the field to be modified and press the buttons below icons enter the desired code. Once the code has been entered, press the button below icon to validate it.
  • Page 29 SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. SPECIAL CODES Video sources available on a monitor (only setting on master monitor). Visible No Visible Factory setting Door panel 1 0111 0110 0111 Door panel 2 0121 0120 0120...

  • Page 30: Cleaning The Monitor

    SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT CLEANING THE MONITOR - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp cloth (not wet) that sheds no fibres. - Always wipe the monitor in the same direction, from top to bottom.
  • Page 31 SOUL S5110/ART 4 XLITE VIDEO DOOR ENTRY SYSTEM KIT NOT S...

  • Page 32: Compliance

    C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
