Page 1: User Manual

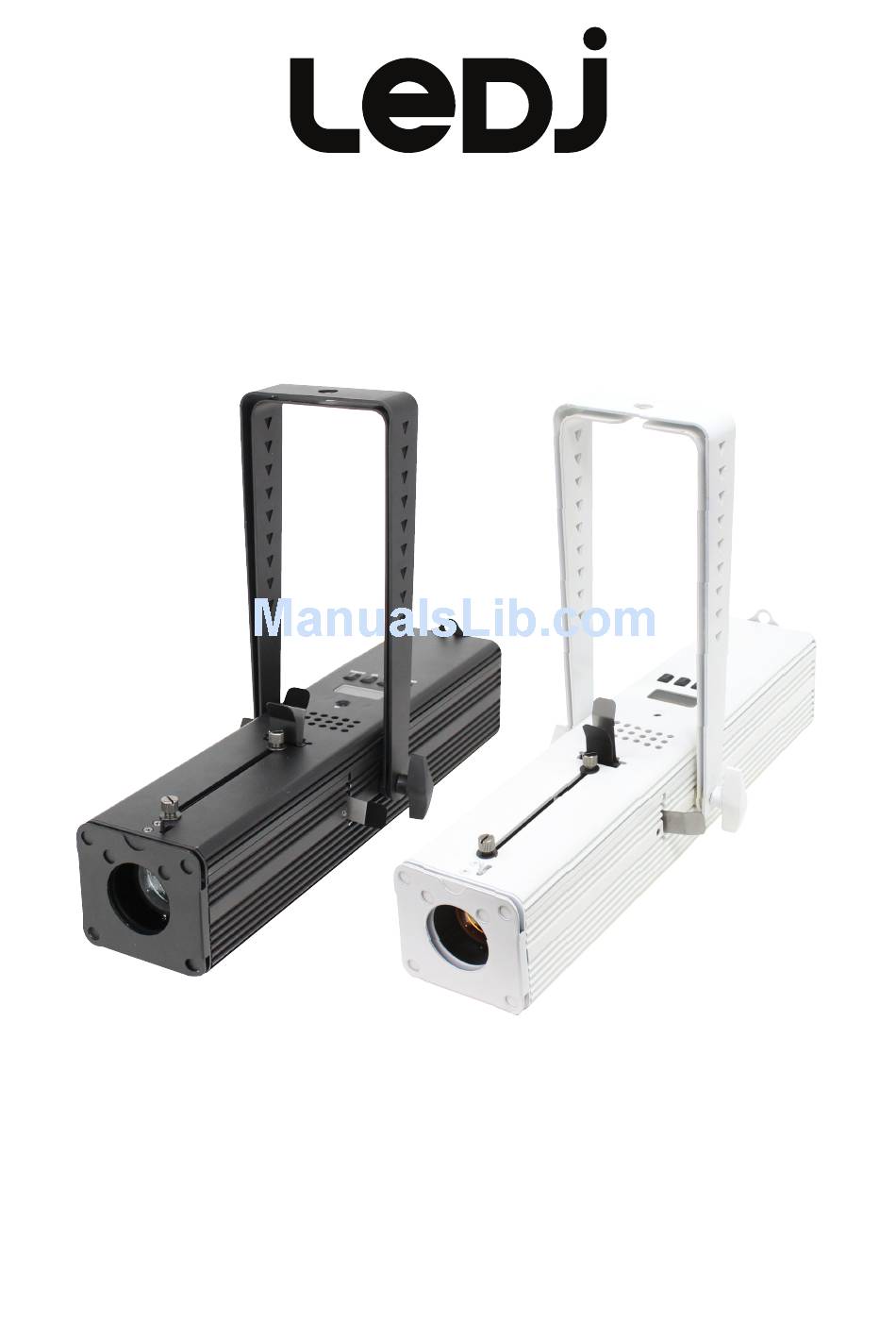

PF 35 Profile Spot User Manual Order codes: LEDJ163 - CW Black Housing LEDJ163A - CW White Housing LEDJ164 - WW Black Housing LEDJ164A - WW White Housing... -
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 PF 35 Profile Spot • 4 framing shutters Power consumption • Removable colour frame for filters Power supply 100~240V, 50/60Hz • Easy access gobo slot Fuse T2A 250V • Includes a textured glass and 4 metal gobos Dimensions 340 x 160 x 430mm • Bracket allows for multiple rigging or floor standing applications Weight 3.2kg • PowerCON input/output Order code LEDJ163 - CW Version, Black Housing • 3-Pin XLR input/output LEDJ163A - CW Version, White Housing • Fan cooled LEDJ164 - WW Version, Black Housing LEDJ164A - WW Version, White Housing • Supplied with IR remote CW version WW version 15° - Lux 16000 4000 1780 1000 15° - Lux 14100 3519 1560 30°...
-
Page 4: Technical Specifications
Technical specifications ZOOM FOCUS FUSE: T2A 250V POWER INPUT: POWER OUTPUT: 100-240V~50/60Hz 100-240V~50/60Hz MENU ENTER DOWN DMX INPUT DMX OUTPUT PF 35 Pro le Spot www.prolight.co.uk 01 - Earth point 09 - Focus adjustment 02 - LCD display 10 - 3-Pin DMX input In the box: 1 x fixture, 03 - Function buttons 11 - 3-Pin DMX output 4 x metal gobos, 04 - IR remote sensor 12 - PowerCON input 1 x textured glass, 05 - Colour frame release mechanism... -
Page 5: Backlight Setting
Operating instructions DMX MODE CHAN: 01 DMX MODE DMX MODE ADDR:001 DELAY:01 DMX MODE DMX MODE address ADDR:001 CHAN: 02 setting DMX MODE DMX MODE ADDR:512 DELAY:04 DMX MODE CHAN: 03 Slave mode SLAVE MODE MANUAL MANUAL WHIE:000 STROB:00 MANUAL Manual dimming mode WHIE:255 MANUAL... -
Page 6: Master/Slave Mode
Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX address mode, press the “MENU” button on the top of the unit to show “DMX MODE ADDR” on the LCD display. Now use the “UP” and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to show “DMX MODE CHAN” on the LCD display and use the “UP” and “DOWN” buttons to select the required the DMX channel (1/2 or 3 selectable). Press the “ENTER” button to confirm the setting. The dimming curve settings will now be displayed, use the “UP” and “DOWN” buttons on the rear of the unit to select between “DMX MODE DELAY:01” ~ “DMX MODE DELAY:04”. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. DELAY:01 - Linear DELAY:02 - Square Law DELAY:03 - Inverse Square Law DELAY:04 - S-Curve 1 channel mode: 3 channel mode: Channel Value Function Channel Value Function 000-255 Dimmer (0-100%) - Page 7 Operating instructions Manual dimming mode: To access the manual dimming mode press the “MENU” button until the display shows “MANUAL WHIE” on the LCD display. Use the “UP” and “DOWN” buttons to select the required brightness from “000” ~ “255”. Press the “ENTER” button and then use the “UP” and “DOWN” buttons to select the flash speed from from “00” ~ “15”. Press the “ENTER” button to confirm the setting. Value: 000 - 255 (000 = low brightness, 255 = high brightness) Value: 00 - 15 (00 = no flash, 15 = fast flash speed) To exit out of any of the above options, press the “MENU” button. Fade in/out mode: To access the fade in/out mode, press “MENU” until the display shows “FADE RUN” on the LCD display. Use the “UP” and “DOWN” buttons to select the required fade speed from “01”...
- Page 8 Operating instructions IR remote functions: 01 - Sets the unit into blackout off/on (LED on/off). 02 - Runs the fade in/out mode, use the ‘+’ and ‘–’ buttons to adjust the program speed. BLACKOUT AUTO RUN 03 - Runs the manual dimming mode. Press this button followed by the ‘+’ and ‘–’ buttons to adjust brightness (000-255). FLASH DMX MODE Press the Flash button followed by the ‘+’ and ‘–’ buttons to adjust the flash speed. 04 - Sets the flash speed in manual dimming mode. Press this SLAVE SET ADDR button followed by the ‘+’ and ‘–’ buttons to adjust the flash speed. DIMMING 05 - Sets the unit in slave mode. 06 - Sets the DMX address. Press this button followed by the ‘+’ and ‘–’/number buttons to adjust the DMX address. – 07 - Sets the DMX address, channel and dimming curve. When in DMX address mode press this button followed by the ‘+’ and ‘–’/number buttons to adjust the DMX address. When in DMX channel mode press this button followed by the ‘+’ and ‘–’ buttons to select the required DMX channel mode. When in dimming curve mode press this button followed by the ‘+’ and ‘–’ buttons to select the dimming curve required (see page 6 for dimming curves). 08 - Adjusts the fade in/out speed, flash speed, manual dimming brightness, DMX address, DMX channel and dimmer curves. 09 - Number buttons to be used when setting the DMX address. www.prolight.co.uk PF 35 Profile Spot User Manual...
-
Page 9: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 511. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. -
Page 10: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. It is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion. -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk PF 35 Profile Spot User Manual... - Page 12 www.prolight.co.uk PF 35 Profile Spot User Manual...
