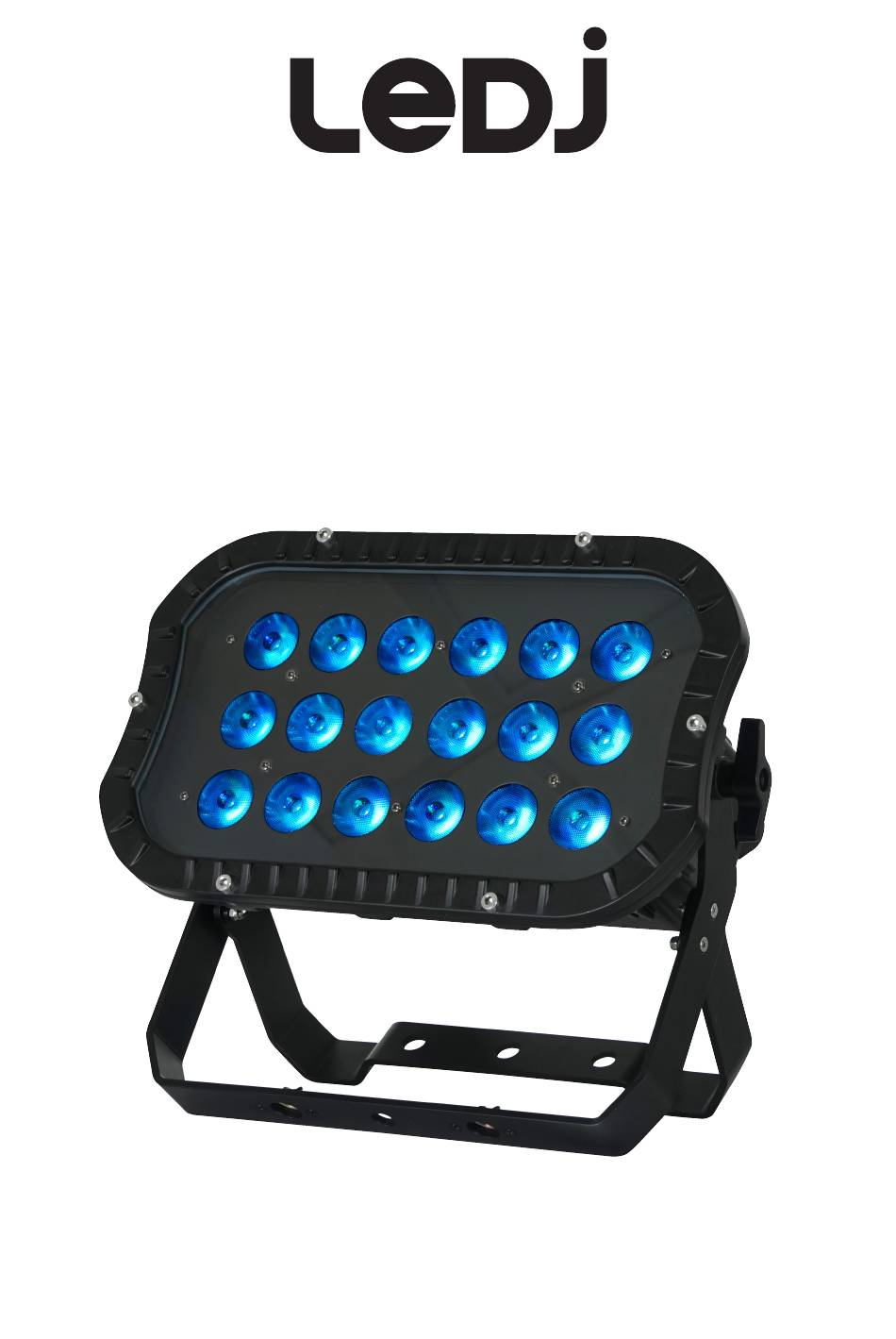

- Page 1 Spectra Flood 18T3 PRO Exterior Fixture User Manual Order code: LEDJ256A...
-
Page 2: Safety Advice
Please note: These fixtures are intended for stage lighting and entertainment applications only, and are not intended for extended periods of use, including but not limited to house-light, industrial or architectural applications and should only be operated with short duty cycles. www.prolight.co.uk Spectra Flood 18T3 PRO User Manual... - Page 3 Spectra Flood 18T3 PRO Exterior Fixture IP65 RATED The exterior Spectra Flood 18T3 PRO features 18 x 3W tri-colour LEDs, delivering a smooth wash of colour, ranging from intense, rich saturated hues through to pastel shades. Controllable via the on-board 4 button LED menu system for auto, static colour or master/slave modes, with the option of DMX control for larger installations.
-
Page 4: Technical Specifications
02 - Hanging bracket 05 - LED display 08 - IP rated DMX output 1 x fixture & adjustment knobs 06 - Function buttons 1 x power cable 03 - IP rated power input www.prolight.co.uk Spectra Flood 18T3 PRO User Manual... -
Page 5: Master/Slave Mode
S p f L r 0 0 0 r 2 5 5 g 0 0 0 g 2 5 5 C o L r Dimming mode b 0 0 0 b 2 5 5 www.prolight.co.uk Spectra Flood 18T3 PRO User Manual... -
Page 6: Factory Settings
Software version n o r t E n p I n F o - r t - Temperature detection - H I - L I f E x x x h Fixture hours www.prolight.co.uk Spectra Flood 18T3 PRO User Manual... - Page 7 000-255 Red (0-100%) 112-117 Seafoam Green 000-255 Green (0-100%) 118-123 Light Blue 000-255 Blue (0-100%) 124-129 Medium Blue 130-135 Blue 136-141 Deep Blue 142-147 Deep Purple 148-153 Purple 154-159 Dark Violet 160-165 Violet www.prolight.co.uk Spectra Flood 18T3 PRO User Manual...
- Page 8 142-147 Deep Purple 224-239 Fade 6 148-153 Purple 240-255 Fade 7 154-159 Dark Violet 000-255 Speed (slow-fast) 160-165 Violet 000-255 Red (0-100%) 166-171 Magenta 000-255 Green (0-100%) 172-177 Fuchsia Pink 000-255 Blue (0-100%) www.prolight.co.uk Spectra Flood 18T3 PRO User Manual...
- Page 9 To exit out of any of the above options, press the “MENU” button. Frequency Settings: SEt. To enter the dimming speed settings, press the “MENU” button on the rear of the unit to show www.prolight.co.uk Spectra Flood 18T3 PRO User Manual...
- Page 10 When shown on the unit, the unit temperature is too low and will -rt- automatically go into protection mode. When shown on the unit, the unit temperature is too high and will -Hi- automatically go into protection mode. www.prolight.co.uk Spectra Flood 18T3 PRO User Manual...
-
Page 11: Dmx Setup
LEDJ 5m Exterior LEDJ 10m Exterior LEDJ Spectra Series Power cable Power cable Power cable Power cable End Cap Set Order code: LEDJ146 Order code: LEDJ147 Order code: LEDJ148 Order code: LEDJ149 Order code: LEDJ93 www.prolight.co.uk Spectra Flood 18T3 PRO User Manual... -
Page 12: Line Termination
3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Spectra Flood 18T3 PRO User Manual... - Page 13 Please note: Caution should be used when power linking other fixtures to the Spectra Flood 18T3 PRO as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.
-
Page 14: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Spectra Flood 18T3 PRO User Manual... - Page 15 Spectra Flood 18T3 PRO User Manual...
- Page 16 Spectra Flood 18T3 PRO User Manual...
