- Page 1 Display Panel User Manual Order code: LEDJ452...
-
Page 2: Safety Advice

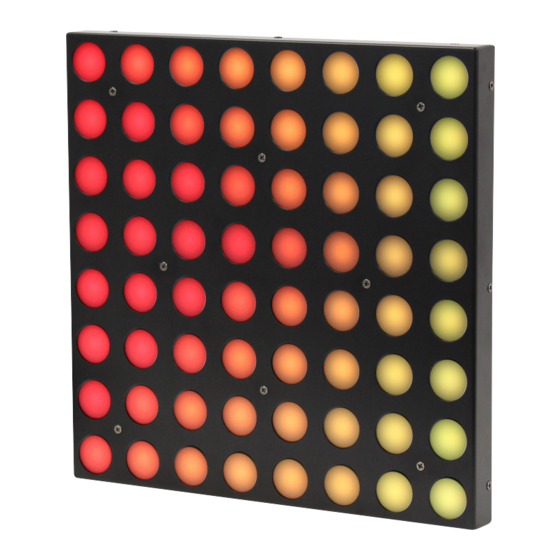

Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 Product overview & technical specifications Display Panel The Display Panel from LEDJ is a multi-pixel visual effect that will bring virtually any venue to life. With 64 tri-colour LEDs (RGB), this fixture creates a stunning display when used in multiples. When connected to the SD-1 controller (sold separately) the fixtures can run through dozens of built-in programs, change to the music or be controlled via DMX. • 64 tri-colour SMD 5050 LEDs (RGB) • Viewing angle: 180° • Auto shows, sound active and DMX modes when used with the SD-1 controller • Display Panel will not operate without SD-1 controller - (Order code: LEDJ462) • PowerCON input/output • RJ45 signal input/output • Convection cooled Specifications Display Panel Power consumption Power supply 100-240V~50/60Hz Fuse F1A 250V Dimensions 289 x 289 x 65mm Weight 2.7kg Order code LEDJ452 41mm 289mm 65mm www.prolight.co.uk Display Panel User Manual...
-
Page 4: Technical Specifications
Technical specifications Attention: SD-1 Controller (Order code: LEDJ462) and Display Panel CANNOT be switched on at the same time, as this will damage the files on the SD card. Always switch the SD controller on first. DISPLAY PANEL www.prolight.co.uk Each set of 6 Display Panels are supplied with: 6 x Display Panels, 1 x 13A PowerCON cable, 5 x 0.5m PowerCON link cables, 6 x RJ45 link cables, 6 x safety wires, & 1 x user manual 01 - PowerCON input Subsequent extra Panels will be supplied with: 02 - PowerCON output 07 - Safety eye 1 x Display Panel, 03 - RJ45 signal input... -
Page 5: Installation
Installation Installation: The Display Panel is designed to be mounted via the wall fixings or from the M10 rigging point on the rear of the unit. The units can be used together with the quick lock connector for alignment. DO NOT use the quick lock connectors to hang multiple panels The Panels SD controller (Order code: LEDJ462) has 8 RJ45 zone connections. Each one of these connections can control a maximum of 10 panels per zone with a maximum cable length of 20m (in total). For configurations where extra zones are required an extra controller/slave controller will be needed dependant on the application. Please note: the Panel requires the SD controller (Order code: LEDJ462) to operate. The Panel will not operate stand alone. Please note: - The maximum number of Display panels that can be connected are as follows: Power - 10 panels via 1 x 13A PowerCON cable followed by 9 PowerCON link cables RJ45 cables sold separately and can be purchased from most Prolight Concepts dealers. Please quote: CABL260 – 0.5m CABL261 – 1m CABL262 – 2m CABL263 – 5m CABL264 – 10m PowerCON link cables sold separately and can be purchased from most Prolight Concepts dealers. Please quote: CABL234 – 1m CABL235 – 1.5m CABL236 –... -
Page 6: Connection Diagram
Connection diagram Connection diagram: The Display Panels are designed to be wired left to right (per zone), with zone 1 being the top row of panels and the last zone to be used, being the bottom row of panels. Please see the Wiring Diagram below. Panel 1 Panel 2 Panel 3 Panel 4 Panel 5 Panel 6 Panel 7 Panel 8 Panel 9 Panel 10 Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6 Zone 7 Zone 8 When multiple panels are used together to create one large grid (as above), an SD card to suit the configuration will be needed. Please contact Prolight for more information. www.prolight.co.uk Display Panel User Manual... -
Page 7: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Display Panel User Manual... - Page 8 www.prolight.co.uk Display Panel User Manual...
