Summary of Contents for Ledj Spectra Par Q12B

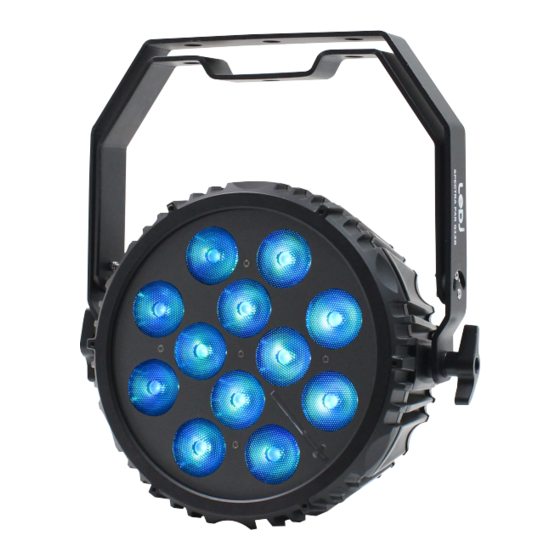

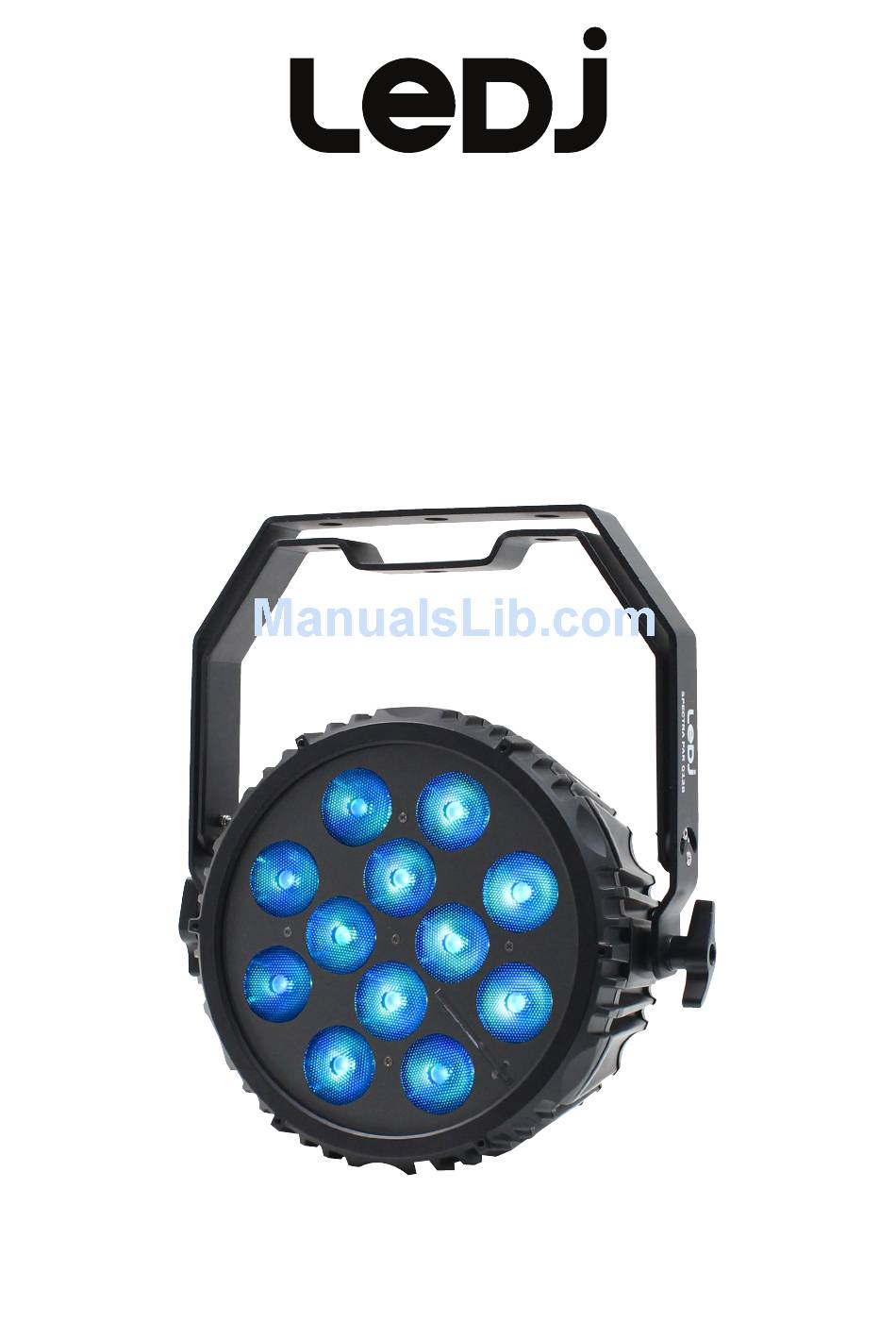

- Page 1 Spectra Par Q12B Exterior Fixture User Manual Order code: LEDJ289...
-
Page 2: Safety Advice
• Always disconnect the power from the mains when accordance with local territory regulations. The safety of equipment is not in use or before cleaning! Only handle the installation is the responsibility of the installer. The the power-cable by the plug. Never pull out the plug by fixture presents risks of severe injury or death due to fire pulling the power-cable. hazards, electric shock and falls. • Make sure that the available mains supply voltage is • Warning! Risk Group 2 LED product according to between 100~240V AC, 50/60Hz. EN 62471. Do not view the light output with optical • Make sure that the power cable is never crimped or instruments or any device that may concentrate the beam. damaged. Check the equipment and the power cable • WARRANTY: One year from date of purchase. periodically. • If the equipment is dropped or damaged, disconnect the mains power supply immediately and have a qualified engineer inspect the equipment before operating again. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Spectra Par Q12B User Manual... - Page 3 • IP rated 5-Pin XLR input/output trailing connections 19° - Lux FULL ON 13600 3400 1510 2660 Specifications Spectra Par Q12B 4240 1061 57.3 36.6 Power consumption 5320 1332 Power supply 100~240V, 50/60Hz Battery 22.2V 10,400mAh 19° Dimensions 330 x 300 x 160mm Weight 6.4kg Order codes LEDJ289 300mm 160mm www.prolight.co.uk Spectra Par Q12B User Manual...
-
Page 4: Technical Specifications
Technical specifications www.prolight.co.uk 01 - Bracket 05 - PowerCON TRUE1 output In the box: 1 x fixture, 02 - LCD display 06 - IP rated 5-Pin XLR trailing input 1 x power cable & 03 - Function buttons 07 - IP rated 5-Pin XLR trailing output 1 x user manual 04 - IPowerCON TRUE1 input www.prolight.co.uk Spectra Par Q12B User Manual... -
Page 5: Operating Instructions
08 (8 channel mode) SLAVE Slave Mode Setting 05 s 10 s LCD back light Time set 20 s LCD Backlight Setting 30 s SETTINGS Factory Reset Reset Factory Reset Wireless Setting Wireless Wireless DMX Setting Normal Temperature Fixture Temperature Warning Error INFO Software version Version Vx.x.x Software Version Battery Charge Battery xxx% Battery Charge Percentage W-DMX settings: To enable/disable W-DMX, press the “SETUP” button to show “SETTINGS”. Press and hold the “SETUP” button and use the “UP” and “DOWN” buttons to select “Wireless Setting”. Press and hold the “SETUP” button again and use the “UP” and “DOWN” buttons to select “ON”/“OFF”. Press the “SETUP” button to confirm the setting. www.prolight.co.uk Spectra Par Q12B User Manual... - Page 6 Green 045-059 Blue 060-074 White 075-089 Amber 090-104 Orange 105-119 Yellow 000-255 120-134 Purple Speed (slow-fast) Programs 02-10 135-149 Pink 150-164 Cyan 165-179 Light Yellow 180-194 Light Red 195-209 Light Green 210-224 Light Blue 225-239 Warm White 240-255 Cold White 000-255 Strobe (slow-fast) www.prolight.co.uk Spectra Par Q12B User Manual...
-
Page 7: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Spectra Par Q12B User Manual... - Page 8 5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Spectra Par Q12B User Manual...
-
Page 9: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Spectra Par Q12B User Manual... - Page 10 Spectra Par Q12B User Manual...
- Page 11 Spectra Par Q12B User Manual...
- Page 12 Spectra Par Q12B User Manual...
