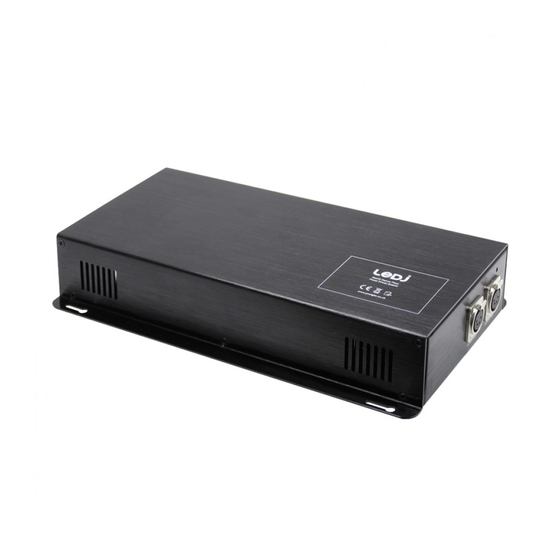

500W Power Supply - LEDJ405
750W Power Supply - LEDJ427
1000W Power Supply - LEDJ428
1500W Power Supply - LEDJ429
White Remote Control Pack - LEDJ406
White 2ft x 2ft Dance Floor Panel
(4 sided) - LEDJ400
White 2ft x 2ft Dance Floor Panel
(3 sided) - LEDJ400A
White 2ft x 4ft Dance Floor Panel - LEDJ401
Black 2ft x 2ft Dance Floor Panel
(4 sided) - LEDJ420
Black 2ft x 2ft Dance Floor Panel
(3 sided) - LEDJ420A
Black 2ft x 4ft Dance Floor Panel - LEDJ421
Starlit Dance Floor
User Manual
4ft Edge Trim - LEDJ402
4ft Edge Trim and Cable - LEDJ402A
2ft Edge Trim - LEDJ403
Corner Edge Trims (2 x L, 2 x R) - LEDJ404
RGB Remote Control Pack - LEDJ437
White RGB 2ft x 2ft Dance Floor Panel
(4 sided) - LEDJ431
White RGB 2ft x 2ft Dance Floor Panel
(3 sided) - LEDJ432
White RGB 2ft x 4ft Dance Floor Panel - LEDJ433
Black RGB 2ft x 2ft Dance Floor Panel
(4 sided) - LEDJ434
Black RGB 2ft x 2ft Dance Floor Panel
(3 sided) - LEDJ435
Black RGB 2ft x 4ft Dance Floor Panel - LEDJ436
Advertisement
Related Manuals for Ledj LEDJ405
Summary of Contents for Ledj LEDJ405
- Page 1 Starlit Dance Floor User Manual Order codes: 500W Power Supply - LEDJ405 4ft Edge Trim - LEDJ402 750W Power Supply - LEDJ427 4ft Edge Trim and Cable - LEDJ402A 1000W Power Supply - LEDJ428 2ft Edge Trim - LEDJ403 1500W Power Supply - LEDJ429...
-
Page 2: Safety Advice
• The LEDJ starlit dance floor systems are design to • Always disconnect the power from the mains when withstand human foot traffic only. Do not load the floor... - Page 3 Component Cross Reference Chart The dancefloor panels are designed to be installed on dry, stable surfaces. All installations must feature complete edge trim systems to reduce the risk of any trip hazards. All components including locking mechanisms and electrical contacts should be carefully inspected each time before laying a starlit floor system.
- Page 4 Black 2ft x 2ft Dance Floor Panel (4 sided) (RGB LED Version) LEDJ435 Black 2ft x 2ft Dance Floor Panel (3 sided) (RGB LED Version) LEDJ436 Black 2ft x 4ft Dance Floor Panel (RGB LED Version) LEDJ405 500W Power Supply LEDJ427 750W Power Supply LEDJ428...

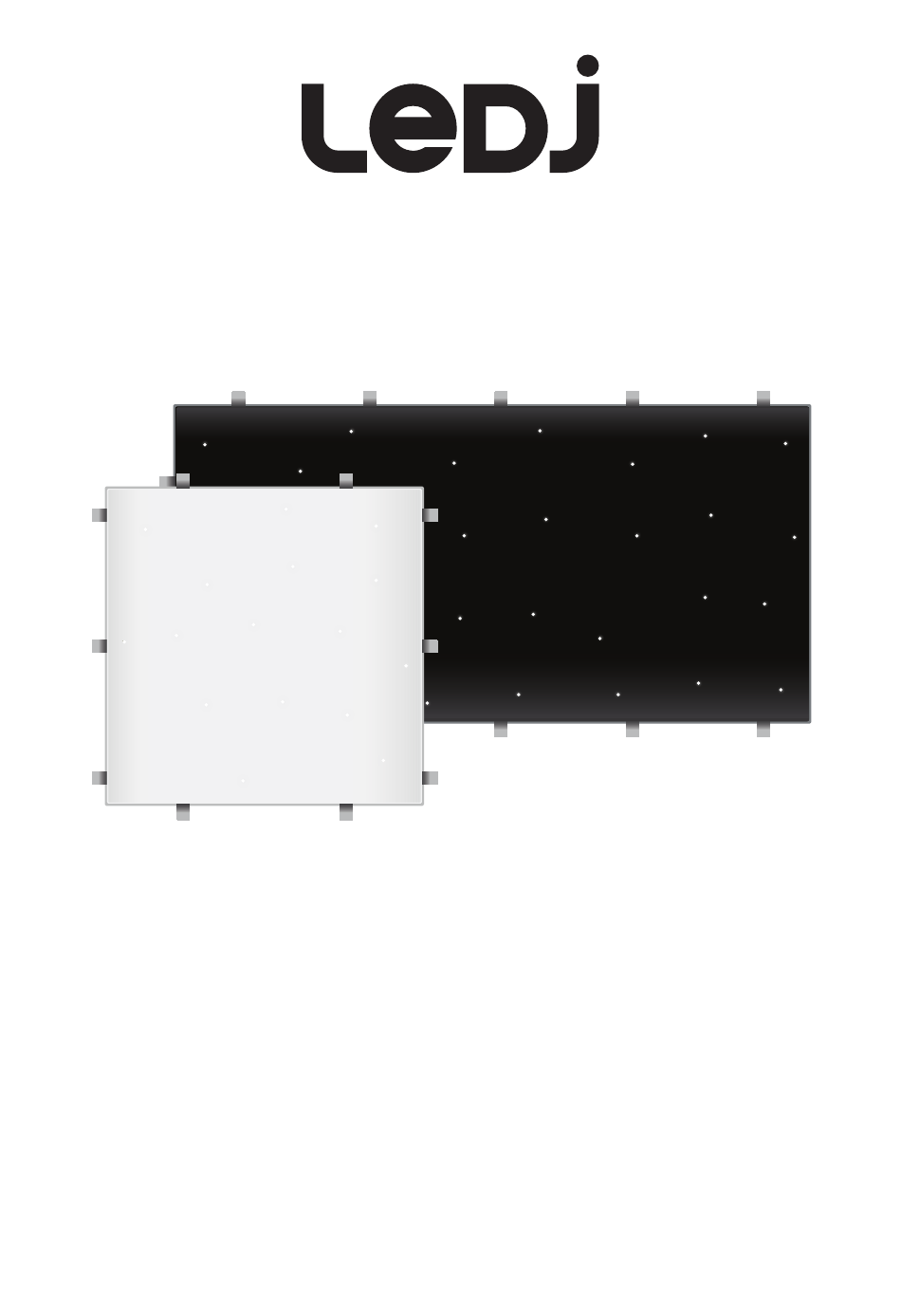

- Page 5 Starlit Dance Floor The LEDJ portable, starlit dance foors use crisp cool white or RGB LEDs inset into high gloss, interlocking panels. Constructed using a rugged aluminium chassis, each panel is finished with a glossy, acrylic upper panel giving a sprung feel while remaining fully supported.
- Page 6 Operating instructions Panel locking mechanism: The panels each lock together using a special locking mechanism. Lay the first panel flat on the floor in the orientation shown below. Hold the second panel at an angle as shown in the diagram and push towards the first panel allowing the aluminium lugs to locate.
- Page 7 Operating instructions Power Edge First Panel Second Panel The first row of edging should include the appropriate number of 4ft edge strips with power connec- tion depending on the floor size (see component cross reference chart on page 3). When selecting the power supply, please consult the chart included in this user guide.
- Page 8 Operating instructions Row 2: Begin row 2 at the left hand side with a four sided half panel (2ft x 2ft) and the 2 end lugs pointing left. Continue with full panels ensuring all panels are laid with the 2 end lugs pointing to the right. Complete the row with another half panel.
- Page 9 Operating instructions Row 3: Lay with full panels the same as row 1. Fitting the corner: Corners are always positioned on the side of the floor as shown and never the top or bottom. Two corner pieces always on the same edge and always positioned on the same side. www.prolight.co.uk Starlit Dance Floor User Manual...
- Page 10 Operating instructions Remote Control (White Starlit Dancefloor): Connect the receiver unit to a suitable power source and power on. Ensure the handheld remote is fitted with a good quality battery (A23 12V Alkaline). Press the correct button as per the list below to select the required mode of operation.
- Page 11 Operating instructions Remote Control (RGB Starlit Dancefloor): Connect the receiver unit to a suitable power source and power on. Ensure the handheld remote is fitted with a good quality battery (A23 12V Alkaline). Press the correct button as per the list below to select the required mode of operation.
-
