Summary of Contents for Ledj Visio LP 600RGB

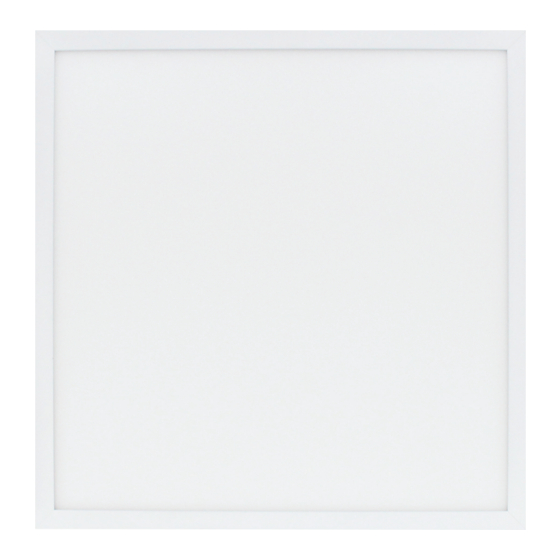

- Page 1 Visio LP 600RGB LED Panel User Manual Order code: LEDC250...
- Page 2 • Repairs, servicing and power connection must only be • Always disconnect the power from the mains when carried out by a qualified technician. THIS UNIT CONTAINS equipment is not in use or before cleaning! Only handle NO USER SERVICEABLE PARTS. the power-cable by the plug. Never pull out the plug by • This lighting fixture is for professional use only - it is pulling the power-cable. not designed for or suitable for household use. The • Make sure that the available voltage is 24V DC. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • WARRANTY: One year from date of purchase. • If the equipment is dropped or damaged, disconnect the OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Visio LP 600RGB LED Panel User Manual...
- Page 3 DMX ADDRESS & DIMMER SETTINGS Data - SWITCH 10 11 12 Data + + 12-24V DMX MODE + 12-24V DIMMING MODE BUILT-IN MODE 120W PSU Wiring: Red –24V DC White (black) Green –24V DC 240V AC +24V DC Blue –24V DC www.prolight.co.uk Visio LP 600RGB LED Panel User Manual...
- Page 4 OUTPUT Data + BLUE GREEN DMX ADDRESS & DIMMER SETTINGS Data - White (black) +24V DC SWITCH 10 11 12 Data + + 12-24V DMX MODE + 12-24V DIMMING MODE BUILT-IN MODE Red –24V DC Green –24V DC Blue –24V DC www.prolight.co.uk Visio LP 600RGB LED Panel User Manual...
- Page 5 Order code: FLEX31 (2 Panels max.) 5 Panels max.) Visio 160W 24V DC Power Supply Visio 320W 24V Power Supply Order code: LEDC236 Order code: LEDC237 (3 Panels max.) (6 Panels max.) To keep up-to-date on the latest accessories and product range additions please visit www.prolight.co.uk www.prolight.co.uk Visio LP 600RGB LED Panel User Manual...
- Page 6 Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk www.prolight.co.uk Visio LP 600RGB LED Panel User Manual...
- Page 7 Visio LP 600RGB LED Panel User Manual...
- Page 8 Visio LP 600RGB LED Panel User Manual...
