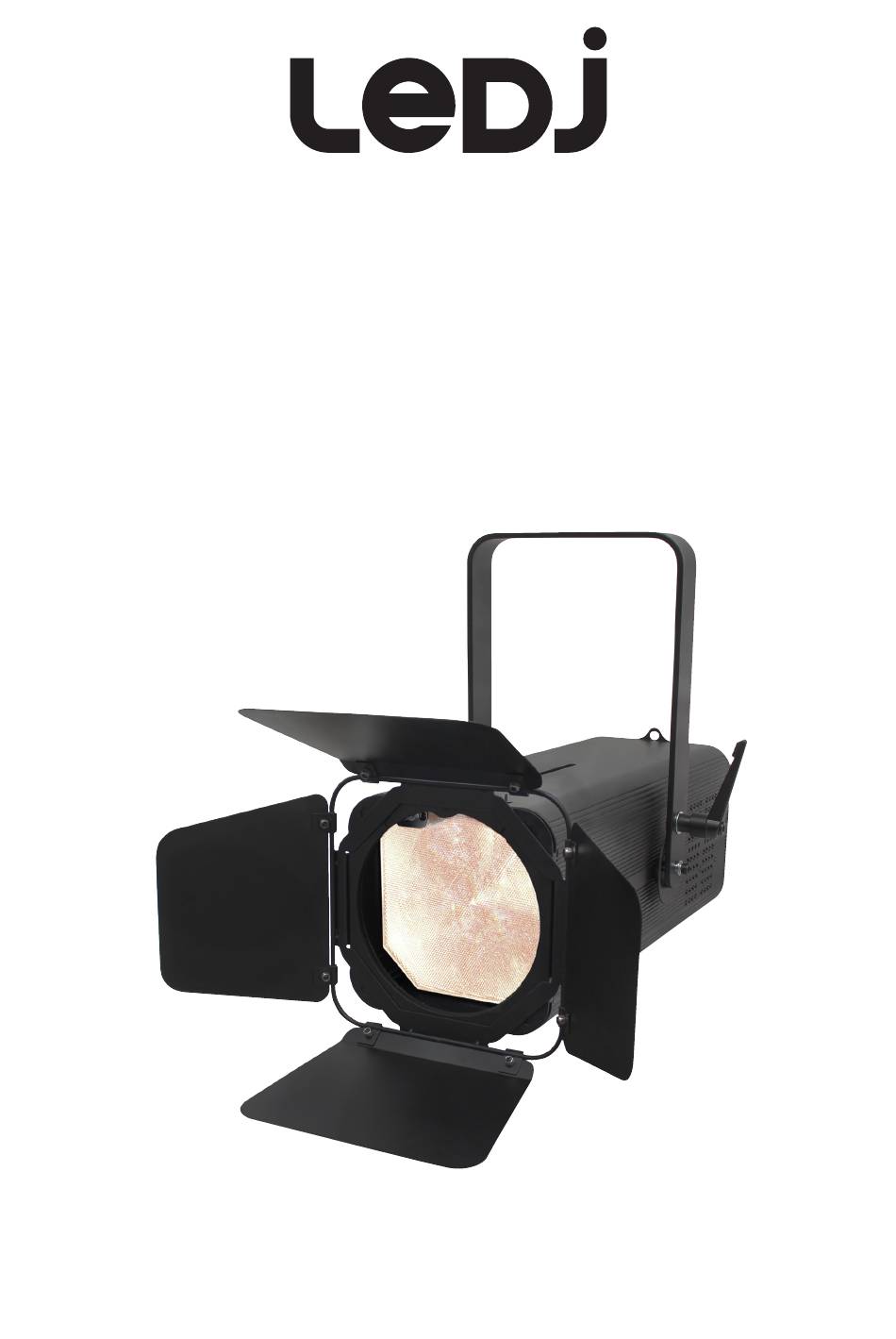

- Page 1 Artisan 2000 Dual White Fresnel User Manual Order code: LEDJ332...
-
Page 2: Safety Advice
Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual... - Page 3 Product overview & technical specifications Artisan 2000 Dual White Fresnel The Artisan 2000 Dual White Fresnel is ideal for schools, churches and stages and makes an ideal replacement for tungsten fixtures. Control of the unit is facilitated via a 4 button menu and LCD display, whilst the beam angle can be manually adjusted.
-
Page 4: Technical Specifications
Technical specifications 300mm 195mm 167mm 482mm 40mm 220mm 190mm www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual... - Page 5 13 - Hanging bracket adjustable knob 1 x power cable 07 - 5-Pin DMX output 14 - Carry handle & 1 x user manual 08 - PowerCON input 15 - Barn doors www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual...
-
Page 6: Slave Mode
MENU COLOR: 12 SPEED:99 AUTO RUN SPEED:00 AUTO RUN Auto run mode FAD+SNAP AUTO RUN SPEED:99 Slave mode SLAVE MODE DIMCURVE LINEAR DIMCURVE SQUARE DIMCURVE Dimming curve setting DIMCURVE I-SQUARE DIMCURVE S-CURVE www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual... - Page 7 OTHER IR : ON IR setting OTHER IR : OFF OTHER BLGT: ON Backlight setting OTHER BLGT:OFF OTHER OTHER Wireless IR: ON WIFI: ON setting OTHER WIFI:OFF Reset OTHER factory SYSRESET settings www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual...
-
Page 8: Dmx Mode
Value: 000 - 255 (000 = LED off, 255 = high brightness) Value: 00 - 99 (00 = no strobe, 99 = fast strobe speed) To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual... -
Page 9: Master/Slave Mode
Now use the “UP” and “DOWN” buttons on the rear of the unit to select between “HALOGEN” and “LED”. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual... -
Page 10: Reset Factory Settings
“DOWN” buttons together and the unit will reset to factory settings. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual... -
Page 11: Ir Remote Functions
6 for dimming curves). 08 - Adjusts the auto run speed, flash speed, manual dimming brightness, DMX address, DMX channel and dimmer curves. 09 - Number buttons to be used when setting the DMX address. www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual... - Page 12 3 seconds until the LED illuminates white. This indicates the wireless memory has been cleared. If the indicator on the receiving units flashes red quickly this indicates that the signal from the transmitting fixture has been lost. www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual...
-
Page 13: Dmx Setup
CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual... -
Page 14: Line Termination
3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual... - Page 15 Please note: Caution should be used when power linking other fixtures to the Artisan 2000 Dual White Fresnel as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source. www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual...
-
Page 16: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Artisan 2000 Dual White Fresnel User Manual... - Page 17 Artisan 2000 Dual White Fresnel User Manual...
- Page 18 Artisan 2000 Dual White Fresnel User Manual...
