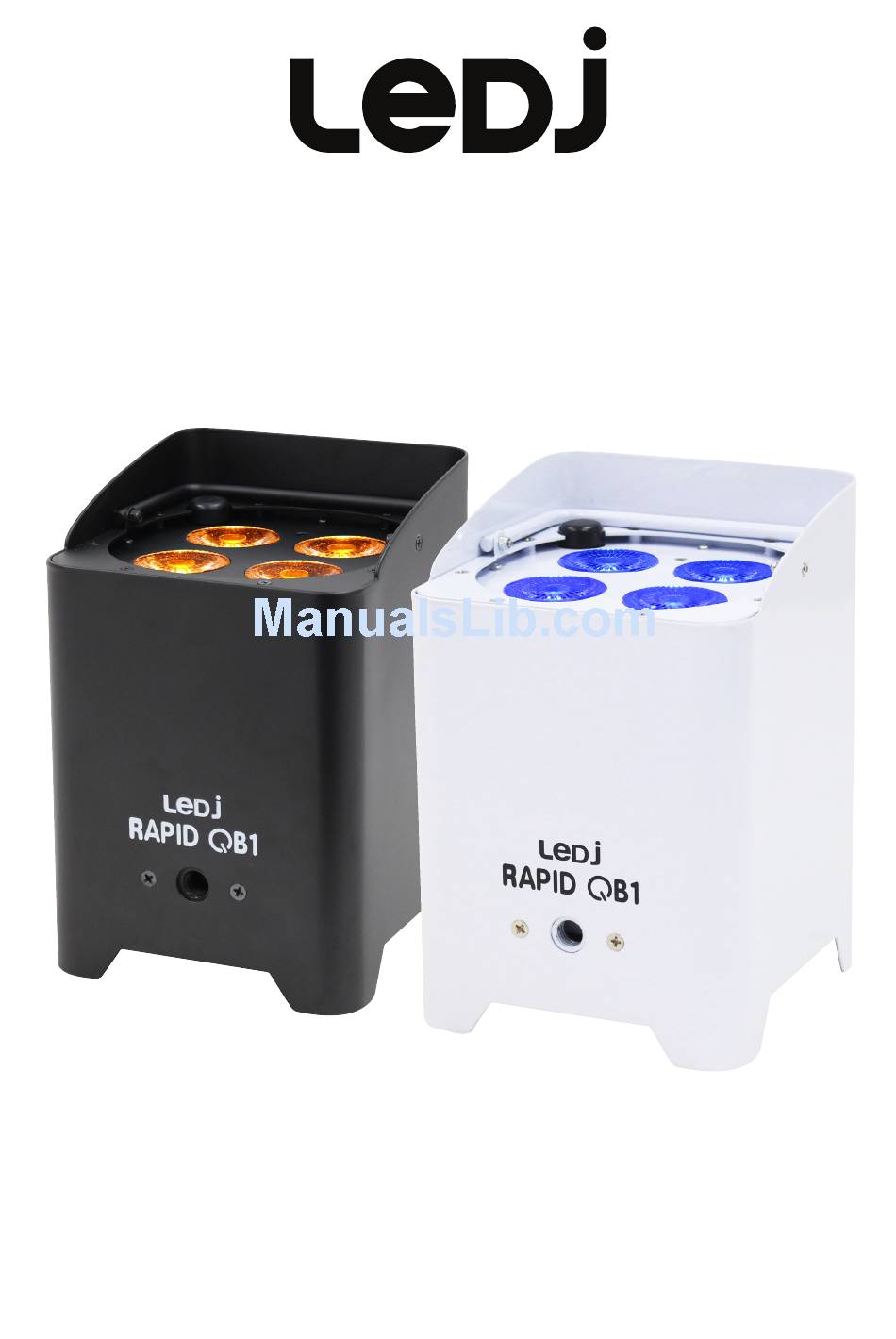

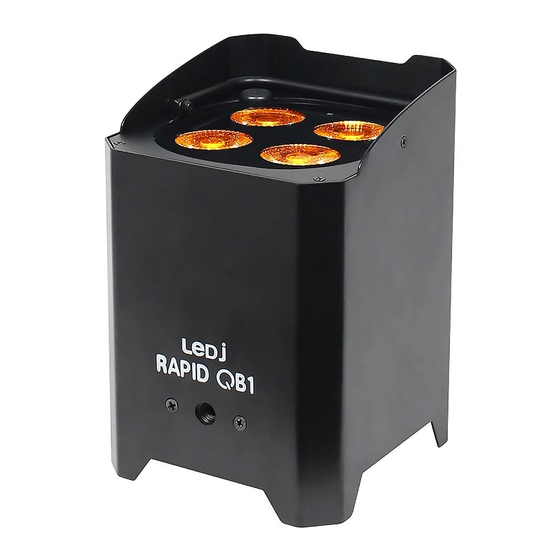

- Page 1 Rapid QB1 Battery Uplighter User Manual Order codes: LEDJ350 - Black Housing LEDJ350A - White Housing...
-
Page 2: Safety Advice
• This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Please note: Battery fuse must be fitted before use. the installation is the responsibility of the installer. The • Make sure that the power cable is never crimped or fixture presents risks of severe injury or death due to fire damaged. Check the equipment and the power cable hazards, electric shock and falls. periodically. • Warning! Risk Group 2 LED product according to • If the equipment is dropped or damaged, disconnect the EN 62471. Do not view the light output with optical mains power supply immediately and have a qualified instruments or any device that may concentrate the beam. engineer inspect the equipment before operating again. • WARRANTY: One year from date of purchase. • Please note: Batteries are classed as consumable items which are covered for 90 days from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Rapid QB1 User Manual... - Page 3 100~240V, 50/60Hz Fuse F3.15A 250V Battery 14.8V 5200mAh Battery fuse F5A 250V Dimensions 204 x 138 x 144mm Weight Order codes LEDJ350 - Black Housing LEDJ350A - White Housing *battery life subject to usage and the temperature where the fixture is situated. Please note: Battery fuse must be fitted before use. www.prolight.co.uk Rapid QB1 User Manual...
-
Page 4: Technical Specifications
01 - Earth point 07 - Microphone 02 - LED display 08 - M12 rigging point In the box: 1 x fixture, 03 - Function buttons 09 - On/off switch 13 - IEC power input 1 x IR remote, 1 x fuse, 1 x power cable 04 - Charge indicator 10 - Adjustable foot 14 - IEC power output & 1 x user manual 05 - Wireless DMX indicator 11 - 3-Pin DMX input 15 - Fuse F3.15A 250V 06 - IR receiver 12 - 3-Pin DMX output 16 - Battery fuse F5A 250V www.prolight.co.uk Rapid QB1 User Manual... - Page 5 S o U n Sound active S E 0 9 S t 0 0 S t r o Strobe S t 1 0 S L A V N - S Master/slave N A S t www.prolight.co.uk Rapid QB1 User Manual...
-
Page 6: Fixture Temperature
Remaining Battery life (percentage) Eco mode (available in 3 E C o or more colour programs) o F F t E N p - - - C Fixture temperature IR remote control o F F www.prolight.co.uk Rapid QB1 User Manual... - Page 7 000-255 Blue dimmer (0-100%) 000-005 No function 000-255 Amber dimmer (0-100%) 006-255 White colour temperature macros 000-255 Master dimmer (0-100%) 000-010 No function 000-010 No function 011-040 3 colour fade (RGB) 011-255 Strobe (slow-fast) 041-070 3 colour fade (CMY) 071-100 4 colour fade (RGBA) 101-130 7 colour fade (RGBACMY) 131-160 3 colour change (RGB) 161-190 3 colour change (CMY) 191-220 4 colour change (RGBA) 221-255 7 colour change (RGBACMY) 000-255 Program speed (slow-fast) 000-255 Sound active www.prolight.co.uk Rapid QB1 User Manual...
- Page 8 To clear the wireless DMX memory, press the “MENU” button and use the “UP” and “DOWN” buttons UiFi on the front of the unit to show on the LED display. Now press the “ENTER” button and use the CLEA “UP” and “DOWN” buttons to choose . Press and hold the “ENTER” button for 5 seconds to erase the wireless DMX memory. The Wireless DMX indicator will go off. To exit out of any of the above options, press the “MENU” button. Wireless DMX indicator information: When the Wireless DMX indicator LED is illuminated yellow, the fixture is paired. When the Wireless DMX indicator LED is flashing fast yellow, the fixtures settings from the last pair are saved but the fixture isn’t paired with the transmitter. When the Wireless DMX indicator LED is flashing slow yellow, the fixtures is paired with the transmitter but isn’t receiving signal. When the Wireless DMX indicator LED is off, the fixtures doesn’t have any remembered wireless DMX settings and isn’t paired with a transmitter. DMX Signal Fail: To access the DMX signal fail setting, press the “MENU” button and use the “UP” and “DOWN” buttons FAiL on the front of the unit to show on the LED display. Now press the “ENTER” button and use HoLd bLaC the “UP” and “DOWN” buttons to choose between (Hold), (Blackout) or AUto (Auto mode). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Rapid QB1 User Manual...
- Page 9 (01 = slow speed, 09 = fast speed). SoUn - Press the “ENTER” button and use the “UP” and “DOWN” buttons to select the sound SE01 SE09 sensitivity between . Press the “ENTER” button to confirm the setting. (01 = low sensitivity, 09 = high sensitivity). Stro - Press the “ENTER” button and use the “UP” and “DOWN” buttons to select the strobe speed St00 St10 between . Press the “ENTER” button to confirm the setting. (00 = strobe off, 09 = strobe fast). Please note: once the strobe is set this will take effect in all built-in programs. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Rapid QB1 User Manual...
-
Page 10: Master/Slave Mode
To exit out of any of the above options, press the “MENU” button. Please ensure that all slave units are set to the same DMX channel mode as the master unit. Software version: To display the software version, press the “MENU” button and use the “UP” and “DOWN” buttons on the front of the unit to show on the LED display. Press the “ENTER” button and the software version will be displayed. To exit out of any of the above options, press the “MENU” button. Fixture hours: To display the fixture hours, press the “MENU” button and use the “UP” and “DOWN” buttons on HoUr the front of the unit to show on the LED display. Press the “ENTER” button and the fixture hours will be displayed. To exit out of any of the above options, press the “MENU” button. Remaining battery life: To display the batteries charge, press the “MENU” button and use the “UP” and “DOWN” buttons on batt the front of the unit to show on the LED display. Press the “ENTER” button and the battery charge will be displayed between (0-100%). To exit out of any of the above options, press the “MENU” button. Battery reference information: When the battery charge indicator LED is illuminated red, the fixture is recharging. When the battery charge indicator LED is illuminated yellow, the fixture is has less than 30% charge. When the battery charge indicator LED is illuminated green, the battery is charged. The recharging time for the battery is 5 hours when the unit is powered off and 9 hours when the unit is powered on. The battery usage time from fully charged is dependant on the mode and brightness of the fixture. For more information please see the features on page 3. www.prolight.co.uk Rapid QB1 User Manual... - Page 11 Operating instructions Operating instructions Eco mode: To set the fixture into eco mode, press the “MENU” button and use the “UP” and “DOWN” buttons on the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between or . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Please note: Eco mode allows the fixture to run longer from a single charge when used in a 3 or more colour program with a slight reduction in intensity. Fixture temperature: To display the fixture temperature, press the “MENU” button and use the “UP” and “DOWN” buttons on tENP the front of the unit to show on the LED display. Press the “ENTER” button and the fixture temperature will be displayed. To exit out of any of the above options, press the “MENU” button. IR remote: To turn the IR remote function on/off, press the “MENU” button on the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between or . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Rapid QB1 User Manual...
- Page 12 C - Blue F - Cyan 03 - Runs the auto mode, use the ‘Speed’ button followed by the ‘ ’ and ‘ ’ buttons to adjust the auto speed Auto Sound Strob 04 - Runs the sound program, use the ‘ ’ and ‘ ’ buttons to adjust the sound sensitivity Speed Fade 05 - Runs the strobe program, use the ‘ ’ and ‘ ’ buttons to adjust the strobe speed 06 - Sets the auto/fade speed. Press this button followed by Full the ‘ ’ and ‘ ’ buttons to adjust the program speed 07 - Sets the unit in either master or slave mode Green Blue 08 - Runs the fade mode, use the ‘Speed’ button followed by the ‘ ’ and ‘ ’ buttons to adjust the fade speed 09 - Sets the DMX address. Press this button followed by the Amber ‘ ’ and ‘ ’ buttons to adjust the DMX address. Press this button again followed by the ‘ ’ and ‘ ’ buttons to adjust Cyan Pink the DMX channel 10 - Sets the unit in full on. Press this button followed by the ‘ ’ and ‘ ’ buttons to adjust brightness (000-255) 11 - Sets the unit in Eco mode. Press this button followed by the ‘ ’ and ‘ ’ buttons to turn eco mode on/off 12 - Adjusts the auto, fade and strobe speed, sound sensitivity, DMX address/channel, full on brightness and turns the eco mode on/off. www.prolight.co.uk Rapid QB1 User Manual...
-
Page 13: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Rapid QB1 User Manual... -
Page 14: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Rapid QB1 User Manual... -
Page 15: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Rapid QB1 User Manual... - Page 16 Rapid QB1 User Manual...
