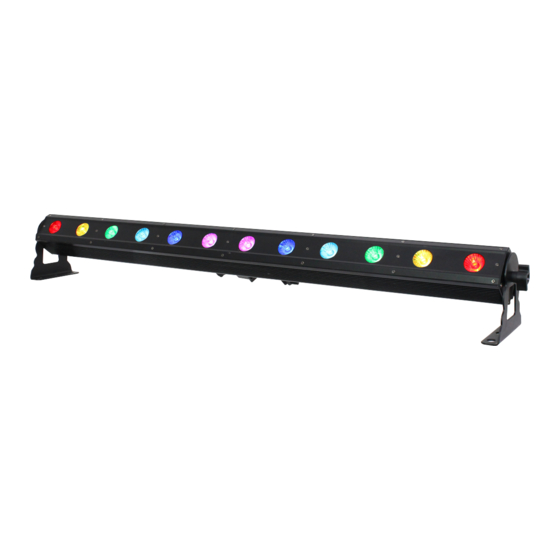

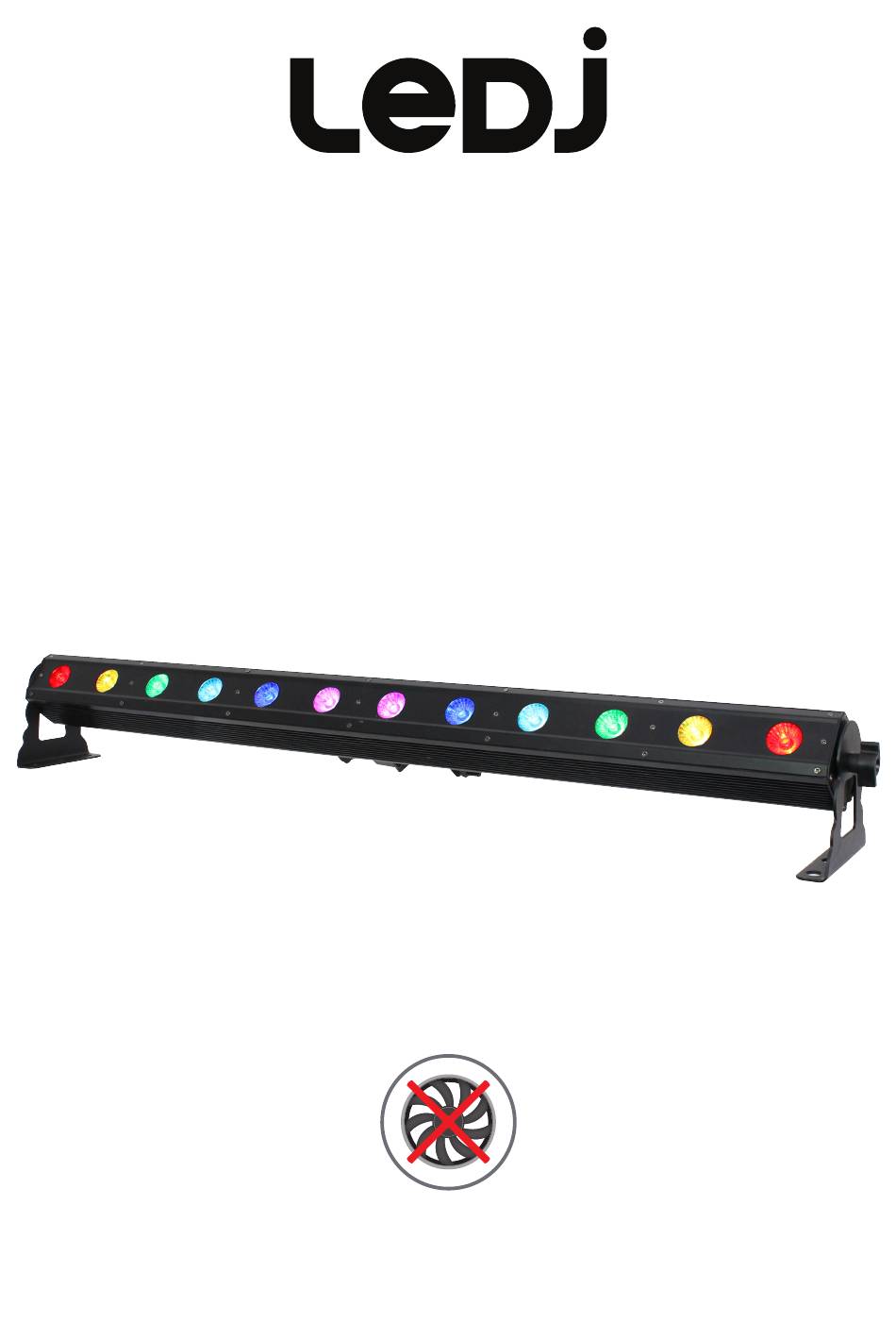

- Page 1 Pixel Storm 12 Tri Batten 12 x 3W tri-colour LEDs (RGB) User Manual Convection cooled, no fan! Order code: LEDJ291...
-
Page 2: Safety Advice
• This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Pixel Storm 12 Tri Batten User Manual... - Page 3 • End and central brackets allow for multiple rigging and floor standing applications • 4 push button menu with LED display • IEC power in/out sockets • 3-pin XLR in/out sockets • Convection cooled • Extruded aluminium chassis (all metal construction) Specifications Pixel Storm 12 Tri Batten 25° - Lux 4056 1741 Power consumption Power supply 100~240V, 50/60Hz Fuse T2A 250V 25° Dimensions 135 x 1062 x 125mm Weight 5.8kg Order code LEDJ291 1062mm 125mm www.prolight.co.uk Pixel Storm 12 Tri Batten User Manual...
-
Page 4: Technical Specifications
ENTER DOWN DMX INPUT DMX OUTPUT FUSE: T1A 250V 01 - Hanging Bracket 05 - LED display 09 - IEC power in socket In the box: 1 x fixture, 02 - Bracket tightening knobs 06 - Function buttons 10 - IEC power out socket 1 x power cable & 03 - Floor Brackets 07 - DMX input socket 11 - Fuse T2A 250V 1 x user manual 04 - Earth point 08 - DMX output socket www.prolight.co.uk Pixel Storm 12 Tri Batten User Manual... - Page 5 135-149 Macro 10 000-255 Master dimmer (0-100%) 150-164 Macro 11 000-255 Strobe (slow-fast) 165-179 Macro 12 180-194 Macro 13 195-209 Macro 14 210-224 Macro 15 225-255 Sound 000-255 Speed (slow-fast) when channel 1 is 001-224 000-255 Sensitivity (low-high) when channel 1 is 225-255 000-255 Flash speed (slow-fast) when channel 1 is 001-224 000-084 Sound 1 when channel 1 is 225-255 085-169 Sound 2 when channel 1 is 225-255 170-255 Sound 3 when channel 1 is 225-255 www.prolight.co.uk Pixel Storm 12 Tri Batten User Manual...
- Page 6 Static colour mode: Colr To access the static colour mode press “ENTER” until shows on the LED display. r. 2 25 Press the “ENTER” button and the LED display will show . Now use the “UP” and “DOWN” r. 0 00 r. 2 55 buttons to select the brightness between . Press the “ENTER” button and repeat for green and blue. Value: 000 - 255 (000 = low, 255 = high) To exit out of any of the above options, press the “MODE” button. www.prolight.co.uk Pixel Storm 12 Tri Batten User Manual...
-
Page 7: Master/Slave Mode
Pr. 1 0 - Macro 9 SLAV Pr. 1 1 - Macro 10 Sound active mode SU. 0 0~SU. 3 1 Pr. 1 2 - Macro 11 DMX mode 3CH, 5CH, 36CH Pr. 1 3 - Macro 12 Pr. 1 4 - Macro 13 Address setting A. 0 01~A. 5 12 Pr. 1 5 - Macro 14 www.prolight.co.uk Pixel Storm 12 Tri Batten User Manual... -
Page 8: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Pixel Storm 12 Tri Batten User Manual... -
Page 9: Line Termination
3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Pixel Storm 12 Tri Batten User Manual... -
Page 10: Weee Notice
Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Pixel Storm 12 Tri Batten User Manual... - Page 11 Pixel Storm 12 Tri Batten User Manual Pixel Storm 12 Tri Batten User Manual...
- Page 12 Pixel Storm 12 Tri Batten User Manual...
