- Page 1 Event Spot DL/WW User Manual Order codes: WW Version - LEDJ232 DL Version - LEDJ233...
-
Page 2: Safety Advice

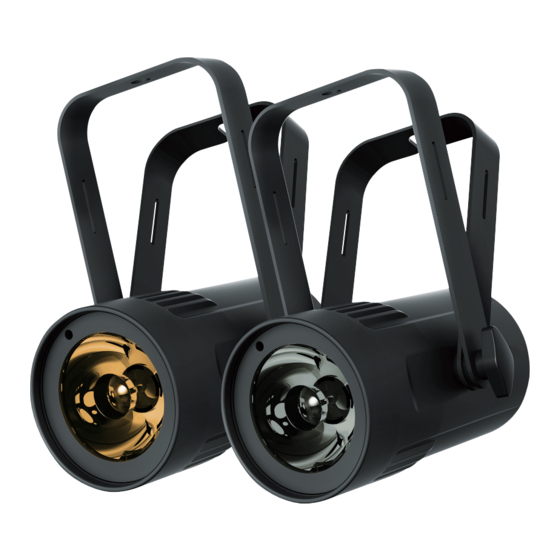

Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 Product overview & technical specifications Event Spot DL/WW The Event Spot compact LED Pinspots are powered by a 15W LED that has the brightness and output of a 100W halogen lamp. Featuring a 4° beam angle and supplied with two optional lenses (10° and 45°) the fixture is easily directed at displays for highlighting and pinspotting, it can also be used to create mood lighting on a restaurant table, or to spotlight displays in store. • 1 x 15W warm white LED (3000K) - LEDJ232 • 1 x 15W day light LED (5000K) - LEDJ233 • Beam angle: 4° native, 10° & 45° frost lenses supplied • 1.1kHz refresh rate • DMX channels: 2 • Manual and master/slave modes • 0-100% dimming and variable strobe • Bracket allows for multiple rigging or floor standing applications • 4 push button menu with LCD display • IEC power input/output trailing sockets • 3-Pin XLR input/output trailing sockets • Convection cooled • Optional IR remote (LEDJ90E) Event Spot WW 4° - Lux 47600 11890 5290 2980 1900 10° - Lux 24000...
-
Page 4: Technical Specifications
Technical specifications FUSE: T0.5A 250V INPUT OUTPUT POWER POWER INPUT OUTPUT 100-240V ~50/60Hz MENU ENTER DOWN In the box: 1 x fixture, 01 - Earth point 06 - IEC power input trailing socket 1 x 10° frost lens, 02 - LCD display 07 - IEC power output trailing socket 1 x 45° frost lens, 03 - Function buttons 08 - Fuse T0.5A 250V 1 x power cable 04 - 3-Pin DMX input trailing socket 09 - Hanging bracket &... -
Page 5: Operating Instructions
Operating instructions DMX ADDR DMX MODE DMX address setting ADDR DMX ADDR CHANNEL DMX channel mode CH 02 Slave mode SLAVE MODE IR. REMOTE MENU IR remote on/off IR. REMOTE IR. REMOTE DIMMER RESP_01 Dimmer response DIMMER DIMMER RESP_02 Manual Dim:00 F:00 Manual Manual mode... -
Page 6: Master/Slave Mode
Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX address mode, press the “MENU” button on the rear of the unit to show “DMX MODE ADDR” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. To access the DMX channel mode, press the “MENU” button on the rear of the unit to show “CHANNEL CH 02” on the LCD display. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. 2 channel mode: Channel Value Function 000-255 Master dimmer (0-100%) 000-002 No function 003-255 Strobe (slow-fast) Master/slave mode: To set the master unit, press the “MENU” button on the rear of the master unit to select manual mode. To set the other units in slave mode, press the “MENU” button on the rear of the unit to show “SLAVE MODE” on the LCD display. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. IR remote on/off: To set the IR remote on/off, press the “MENU” button on the rear of the unit to show “IR. - Page 7 Operating instructions Manual dimming mode: To access the manual dimming mode, press the “MENU” button on the rear of the unit to show “Manual” on the LCD display. The unit is now in manual dimming mode. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the brightness from “00” - “99”. Press the “ENTER” button again and use the “UP” and “DOWN” buttons to set the strobe speed from “00” - “99”. Press the “ENTER” button to confirm the setting. (00 = LED off/strobe off, 99 = LED at full brightness/strobe fast) To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Event Spot DL/WW User Manual...
-
Page 8: Important Notes
Operating instructions Optional IR remote functions: Button functions: 01 - Blackout DIMMING 02 - To set the brightness of the LED either select 20%, 50% or 100% or alternatively 100% you can use the ‘+’ and ‘-’ buttons STROBE 03 - Flash off 100% 04 - To set the flash speed of the LED either select 20%, 50% or 100% or alternatively DMX MODE SOUND ACTIVE SLAVE SET ADDR you can use the ‘+’ and ‘-’ buttons 05 - Set the LED into DMX mode 06 - Set the LED into sound active mode 1 2 3 07 - Set the LED into slave mode 08 - Set the DMX address for the LED 4 5 6 0 7 8 9 Optional IR remote Order code:... -
Page 9: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 511. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. -
Page 10: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. It is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion. -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Event Spot DL/WW User Manual... - Page 12 www.prolight.co.uk Event Spot DL/WW User Manual...
