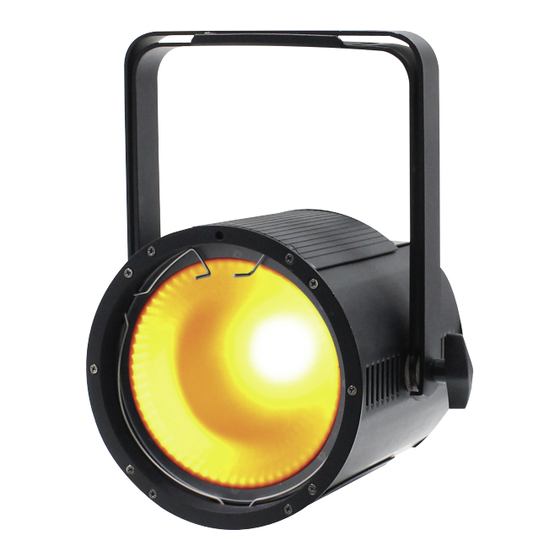

- Page 1 Colour Blast 80 User Manual Order code: LEDJ116...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Colour Blast 80 User Manual... - Page 3 2700 40° - Lux FULL ON 7560 1885 1630 65.1 3210 58.2 32.8 1620 80° - Lux FULL ON 2510 64.9 36.5 23.4 1200 74.8 47.5 16.9 6.08 62.7 35.3 22.6 25° ° ° www.prolight.co.uk Colour Blast 80 User Manual...
-
Page 4: Technical Specifications
In the box: 1 x fixture, 02 - Safety eye 07 - PowerCON input 1 x 25° beam reduction lens, 03 - LED display 08 - PowerCON output 1 x 40° beam reduction lens, 04 - Function buttons 09 - Fuse T3A 250V 1 x power cable 05 - 5-Pin DMX input 10 - Hanging bracket & 1 x user manual 06 - 5-Pin DMX output 11 - Hanging bracket adjustable knob www.prolight.co.uk Colour Blast 80 User Manual... - Page 5 Display backlight d o F F I r o n IR remote I r o F d o n S t n d Display inverse d E F A Reset factory settings www.prolight.co.uk Colour Blast 80 User Manual...
- Page 6 000-255 Green dimmer (0-100%) 061-080 S-Curve (dimming curve) 000-255 Blue dimmer (0-100%) 081-255 Default dimming curve (set via menu) 000-255 Amber dimmer (0-100%) 5 channel mode: Channel Value Function 000-255 Red dimmer (0-100%) 000-255 Green dimmer (0-100%) 000-255 Blue dimmer (0-100%) 000-255 Amber dimmer (0-100%) 000-020 Linear (dimming curve) 021-040 Square Law (dimming curve) 041-060 Inverse Square Law (dimming curve) 061-080 S-Curve (dimming curve) 081-255 Default dimming curve (set via menu) www.prolight.co.uk Colour Blast 80 User Manual...
- Page 7 000-255 Green dimmer (0-100%) 000-255 Blue dimmer (0-100%) 000-255 Amber dimmer (0-100%) 000-031 LED off 032-063 LED on 064-095 Strobe (slow-fast) 096-127 LED on 128-159 Strobe pulse (slow-fast) 160-191 LED on 192-223 Strobe random (slow-fast) 224-255 LED on 000-255 Master dimmer (0-100%) 000-020 Linear (dimming curve) 021-040 Square Law (dimming curve) 041-060 Inverse Square Law (dimming curve) 061-080 S-Curve (dimming curve) 081-255 Default dimming curve (set via menu) www.prolight.co.uk Colour Blast 80 User Manual...
- Page 8 Square Law (dimming curve) Colour Change 4 041-060 Inverse Square Law Colour 048-063 Colour Fade 4 (dimming curve) macros Sound Active 4 061-080 S-Curve (dimming curve) (see page Colour Change 5 9 for 081-255 Default dimming curve 064-079 Colour Fade 5 values) (set via menu) Sound Active 5 Colour Change 6 080-095 Colour Fade 6 Sound Active 6 Colour Change 7 096-111 Colour Fade 7 Sound Active 7 Colour Change 8 112-127 Colour Fade 8 Sound Active 8 www.prolight.co.uk Colour Blast 80 User Manual...
- Page 9 CL27 109-112 Light Amber CL28 113-116 Straw CL29 117-120 Deep Amber CL30 121-124 Orange CL31 125-128 Light Rose CL32 129-132 English Rose CL33 133-136 Light Salmon CL34 137-140 Middle Rose CL35 141-144 Dark Pink CL36 145-148 Magenta CL37 149-152 Peacock Blue CL38 www.prolight.co.uk Colour Blast 80 User Manual...
- Page 10 CL53 213-216 Pale Gold CL54 217-220 Deep Orange CL55 221-224 Bastard Amber CL56 225-228 Flame Red CL57 229-232 Daylight Blue CL58 233-236 Lilac Tint CL69 237-240 Deep Lavender CL60 241-244 Dark Steel Blue CL61 245-248 Congo Blue CL62 249-252 Alice Blue CL63 253-255 White (full on) CL64 www.prolight.co.uk Colour Blast 80 User Manual...
-
Page 11: Master/Slave Mode
SP. 0 1 SP. 1 6 A-JF . Press the “ENTER” button and the unit will start the auto fade/change mode Alternatively by pressing the “ENTER” button once more and use the “UP” and “DOWN” buttons you are AF01 AF16 able to select the required auto fade mode from . By pressing the “ENTER” button a third time and using the “UP” and “DOWN” buttons you are able to select the required auto AJ01 AJ16 change mode from . Press the “ENTER” button to confirm the setting. Value: 01 - 16 (01 = slow speed, 16 = fast speed) To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Colour Blast 80 User Manual... - Page 12 Iron Irof display. Use the “UP” and “DOWN” buttons to select either (IR receiver on) ~ (IR receiver off). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Display inverse: To access the display inverse setting, press the “MENU” button until the display shows on the Stnd LED display. Press the “ENTER” button to display and use the “UP” and “DOWN” buttons to Stnd select either (display standard) ~ (display inverse). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Reset factory settings: To reset the factory settings, press the “MENU” button until the display shows on the LED display. dEFa Press the “ENTER” button twice to display . Press the “UP” and “DOWN” buttons together and the fixture will be reset to its factory settings. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Colour Blast 80 User Manual...
- Page 13 SET ADDR ‘–’ buttons to adjust the selected auto program speed 03 - Activates the strobe, use the ‘+’ and ‘–’ buttons to adjust the strobe speed SLAVE/SA 04 - Activates the auto mode/sound mode speed. Press this button followed by the ‘+’ and ‘–’ buttons to DIMMING adjust the program speed 05 - Activates the DMX mode. Press once and use the ‘+’ and ‘–’ buttons to adjust the DMX address. Press again ‘+’ and ‘–’ buttons to adjust the DMX channel mode. Press again ‘+’ and ‘–’ buttons to adjust the dimmer curve mode. 06 - Sets the DMX address, press once followed by three numeric buttons to set the DMX address required 07 - Activates the slave/sound modes. Press once to activate sound mode followed by the ‘+’ and ‘–’ buttons to adjust the sound mode. Press the ‘SP’ button followed by the ‘+’ and ‘–’ buttons to adjust the sound sensitivity. Press again to activate slave mode. 08 - Activates the manual dimming mode, select one of the colours below and use the ‘+’ and ‘–’ buttons to select the brightness between 000-255. Repeat for all 3 other colours. A - Red B - Green C - Blue D - Amber 09 - Adjusts the static colour, strobe speed, auto program speed, sound mode, sound sensitivity, DMX address, DMX channel mode, dimming curve and manual dimming modes 10 - Sets the DMX address www.prolight.co.uk Colour Blast 80 User Manual...
-
Page 14: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Colour Blast 80 User Manual... -
Page 15: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Colour Blast 80 User Manual... -
Page 16: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Colour Blast 80 User Manual...
