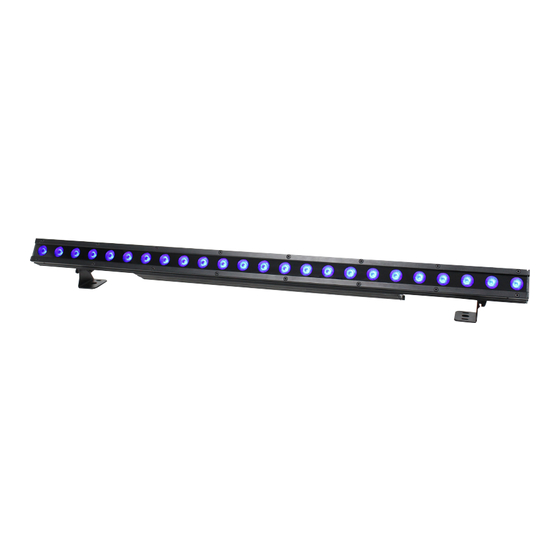

- Page 1 Fresco 24 RGBW Exterior Fixture User Manual Order code: LEDJ267...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. - Page 3 Product overview & technical specifications Fresco 24 RGBW This sleek IP65 batten is perfectly suited for wall washing and cyclorama applications and is IP65 manufactured using superior quality components to ensure smooth colour mixing and optimum reliability. Utilising an innovative optical arrangement combined with a specially designed light source, the 15° x 52° beam angle produces an unprecedented chromatic performance. The 4 button backlit LCD display facilitates control over static colours, colour mixing, changes, fades, DMX and master/slave and offers an access lock to prevent unauthorised setting changes. The rugged aluminium exterior ensures years of use in all weather conditions while the integral mounting brackets complete the fixtures sleek, modern appearance. • 24 x 3W quad-colour LEDs (RGBW) • Beam angle: 15° x 52° • 2,150 Lux @ 2m (full on) • 1.1kHz refresh rate • DMX channels: 3/4/6/8/10/16 or 20 selectable • Static colour, colour change, colour fade and master/slave modes • 0 - 100% dimming and variable strobe Specifications Fresco 24 RGBW • Bracket allows for multiple rigging or floor standing applications Power consumption 108W • Supplied eyebrow for uplighting situations Power supply 100~240V, 50/60Hz...
-
Page 4: Technical Specifications
Technical specifications MENU MENU MENU MENU MENU Fresco 24 RGBW Fresco 24 RGBW Fresco 24 RGBW Fresco 24 RGBW Fresco 24 RGBW www.prolight.co.uk www.prolight.co.uk www.prolight.co.uk www.prolight.co.uk www.prolight.co.uk ENTER ENTER ENTER ENTER ENTER DOWN DOWN DOWN DOWN DOWN POWER CONSUMPTION: 58W POWER CONSUMPTION: 58W POWER CONSUMPTION: 58W POWER CONSUMPTION: 58W... - Page 5 Operating instructions IMPORTANT! PLEASE NOTE: The LCD display for this fixture has a locking function which can be enabled via the menu where after 20 seconds of inactivity it will lock. To unlock the menu press the buttons in the following sequence “UP”, “DOWN”, “UP”, “DOWN”, “ENTER”. Main Menu Sub Menu Options/Values (Default Settings in BOLD) Description ADDR 001-512 DMX Address Setting 03CH (01 channel mode) 04CH (04 channel mode) 06CH (06 channel mode) CHANNEL MODE 08CH (08 channel mode) DMX Channel Setting 10CH (10 channel mode) 16CH (16 channel mode) 20CH (20 channel mode) Slave Mode Slave Mode AUTO RUN SP:01-SP:99 REP:01-REP:99 Auto Mode 01.CFADE Colour Fade Mode 02.METEOR Meteor Mode 03.FADE Colour Fade In/Out Mode 04.CHANGE...
- Page 6 Operating instructions Main Menu Sub Menu Options/Values (Default Settings in BOLD) Description LINEAR SQUARE DIMMER CURVE Dimming Curves Setting INV.SQUARE S-CURVE DIMMER SPEED Dimming Curves Mode Setting HALOGEN LOCKING Auto Lock Menu Setting HOLD DMX FAIL DMX Fail Setting BLACKOUT DEFAULT FACTORY LOAD Default Factory Settings SETTINGS TEMP INFO ––– C Fixture Temperature FIRMWARE V–.–– Fixture Version 3 channel mode: Value 000-008 No function...
- Page 7 Operating instructions 4 channel mode: 16 channel mode: Channel Value Function Channel Value Function 000-255 Red dimmer (0-100%) 000-255 Red dimmer (0-100%) 000-255 Green dimmer (0-100%) 000-255 Green dimmer (0-100%) First Quarter 000-255 Blue dimmer (0-100%) 000-255 Blue dimmer (0-100%) 000-255 White dimmer (0-100%) 000-255 White dimmer (0-100%) 000-255 Red dimmer (0-100%) 6 channel mode: 000-255 Green dimmer (0-100%) Second Quarter 000-255 Blue dimmer (0-100%) Channel Value...
-
Page 8: Dmx Setup
DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. Also remember that DMX cable must be daisy chained and cannot be split. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: LEDJ 1m Interior - LEDJ 1m Exterior LEDJ 2m Exterior LEDJ 5m Exterior LEDJ 10m Exterior Exterior DMX cable DMX cable DMX cable DMX cable DMX cable Order code: LEDJ91... - Page 9 DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. it is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion.
-
Page 10: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Fresco 24 RGBW User Manual... - Page 11 www.prolight.co.uk Fresco 24 RGBW User Manual...
- Page 12 www.prolight.co.uk Fresco 24 RGBW User Manual...
