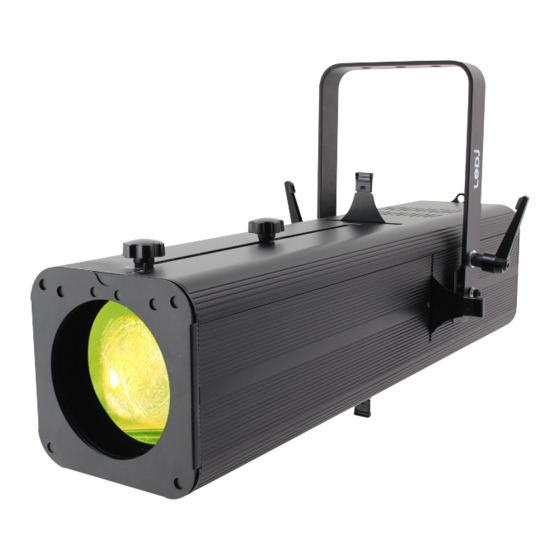

Artisan 1200 RGBAL Profile
User Manual
Order code: LEDJ331

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEDJ331 and is the answer not in the manual?

Questions and answers

Related Manuals for Ledj LEDJ331

Summary of Contents for Ledj LEDJ331

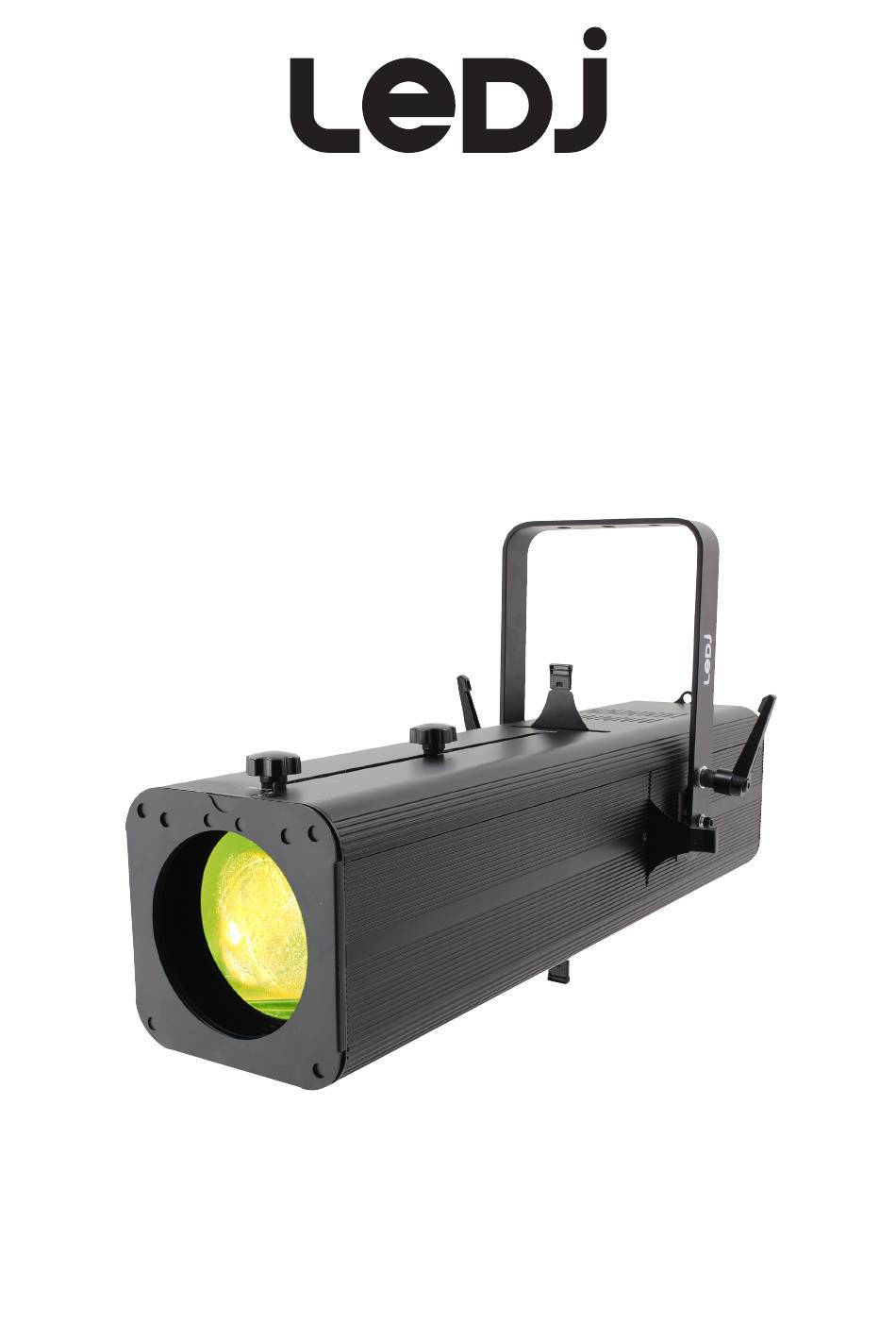

  • Page 1 Artisan 1200 RGBAL Profile User Manual Order code: LEDJ331...

  • Page 2: Safety Advice

    Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •...
  • Page 3 • Supplied with IR remote 12° 25° Specifications Artisan 1200 RGBAL Profile Power consumption 170W Power supply 100~240V, 50/60Hz Fuse T3A 250V Dimensions 365 x 300 x 730mm Weight 9.8kg Order code LEDJ331 www.prolight.co.uk Artisan 1200 RGBAL Profile User Manual...

  • Page 4: Technical Specifications

    Technical specifications 300mm 195mm 167mm 730mm 40mm 468mm 182mm www.prolight.co.uk Artisan 1200 RGBAL Profile User Manual...
  • Page 5 Technical specifications 01 - Earth point 02 - LCD display 10 - 5-Pin DMX output 03 - Function buttons 11 - PowerCON input 04 - Colour frame release mechanism 12 - PowerCON output In the box: 1 x fixture, 05 - Framing shutters 13 - Fuse: T3A 250V 4 x metal gobos, 06 - Gobo slot...
  • Page 6 Operating instructions DMX MODE CHAN: 05 DMX MODE DMX MODE Manual ADDR:001 CHAN: 06 DMX MODE dimming ADDR:001 setting mode DMX MODE DMX MODE ADDR:512 CHAN: 08 MANUAL RED: 000 DMX MODE CHAN: 09 MANUAL RED: 255 MANUAL RED: 000 MANUAL GREN: 000 CLR MACS...
  • Page 7 Operating instructions DMX FAIL BLACKOUT DMX FAIL DMX FAIL DMX fail setting HOLD DMX FAIL STATIC MENU OTHER IR : ON IR setting OTHER IR : OFF OTHER BLGT: ON Backlight setting OTHER OTHER BLGT:OFF IR: ON OTHER Wireless WIFI: ON setting OTHER WIFI:OFF...
  • Page 8 Operating instructions 9 channel mode: 8 channel mode: Channel Value Function Channel Value Function 000-255 Red dimmer (0-100%) 000-255 Red dimmer (0-100%) 000-255 Green dimmer (0-100%) 000-255 Green dimmer (0-100%) 000-255 Blue dimmer (0-100%) 000-255 Blue dimmer (0-100%) 000-255 Amber dimmer (0-100%) 000-255 Amber dimmer (0-100%) 000-255 Lime dimmer (0-100%) 000-255 Lime dimmer (0-100%)

  • Page 9: Master/Slave Mode

    Operating instructions Static colour/colour macros: To access the static colour/colour macros press the “MENU” button until the display shows “CLR MACS” on the LCD display. Use the “UP” and “DOWN” buttons to select the required colour or macro from “COLOR:00” ~ “MACRO:44”. When “COLOR:01” ~ “COLOR:25” is selected, press the “ENTER” button and then use the “UP”...

  • Page 10: Reset Factory Settings

    Operating instructions DMX fail setting: To access the fixtures DMX fail setting, press the “MENU” button to show “DMX FAIL” on the LCD display. Now use the “UP” and “DOWN” buttons on the rear of the unit to select between “BLACKOUT”, (blacks out the fixture when signal is lost) “HOLD”...

  • Page 11: Ir Remote Functions

    Operating instructions IR remote functions: 01 - Sets the unit into blackout off/on (LED on/off) 02 - Activates the static colours/macros, use the ‘PROG’ button to cycle through static colour and macros modes. Static colour - use the ‘+’ and ‘–’ buttons to select the required colour.
  • Page 12 Operating instructions Wireless operation: To operate the fixture wirelessly you will need to plug in the Artisan Series W-DMX Compatible Transceiver (sold separately) into the USB port on the rear of the fixture. W-DMX should also be set to “ON” in the fixtures settings (full instructions can be found on page 9). If using it in wireless DMX mode a compatible wireless DMX Transmitter (e.g.

  • Page 13: Included Gobos

    Included gobos Included gobos: Gobo 1 Gobo 2 Gobo 3 Gobo 4 www.prolight.co.uk Artisan 1200 RGBAL Profile User Manual...

  • Page 14: Dmx Setup

    DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address.

  • Page 15: Line Termination

    DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Pin Configuration Do not connect the cables shield conductor to the ground lug or 3-Pin 5-Pin allow the shield conductor to come in contact with the XLRs Pin 1 - Ground outer casing.
  • Page 16 Multiple fixture power linking Power linking: This fixture provides power linking via the power output on the rear allowing multiple units to be connected together. The maximum number of fixtures that can be connected is 10 fixtures @ 240V or 5 fixtures @ 120V (including the first fixture). After the maximum number of fixtures are connected a new power run will need to be started.

  • Page 17: Weee Notice

    WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
  • Page 18 www.prolight.co.uk Artisan 1200 RGBAL Profile User Manual...
  • Page 19 www.prolight.co.uk Artisan 1200 RGBAL Profile User Manual...
  • Page 20 www.prolight.co.uk Artisan 1200 RGBAL Profile User Manual...
