Summary of Contents for Ledj LEDJ239

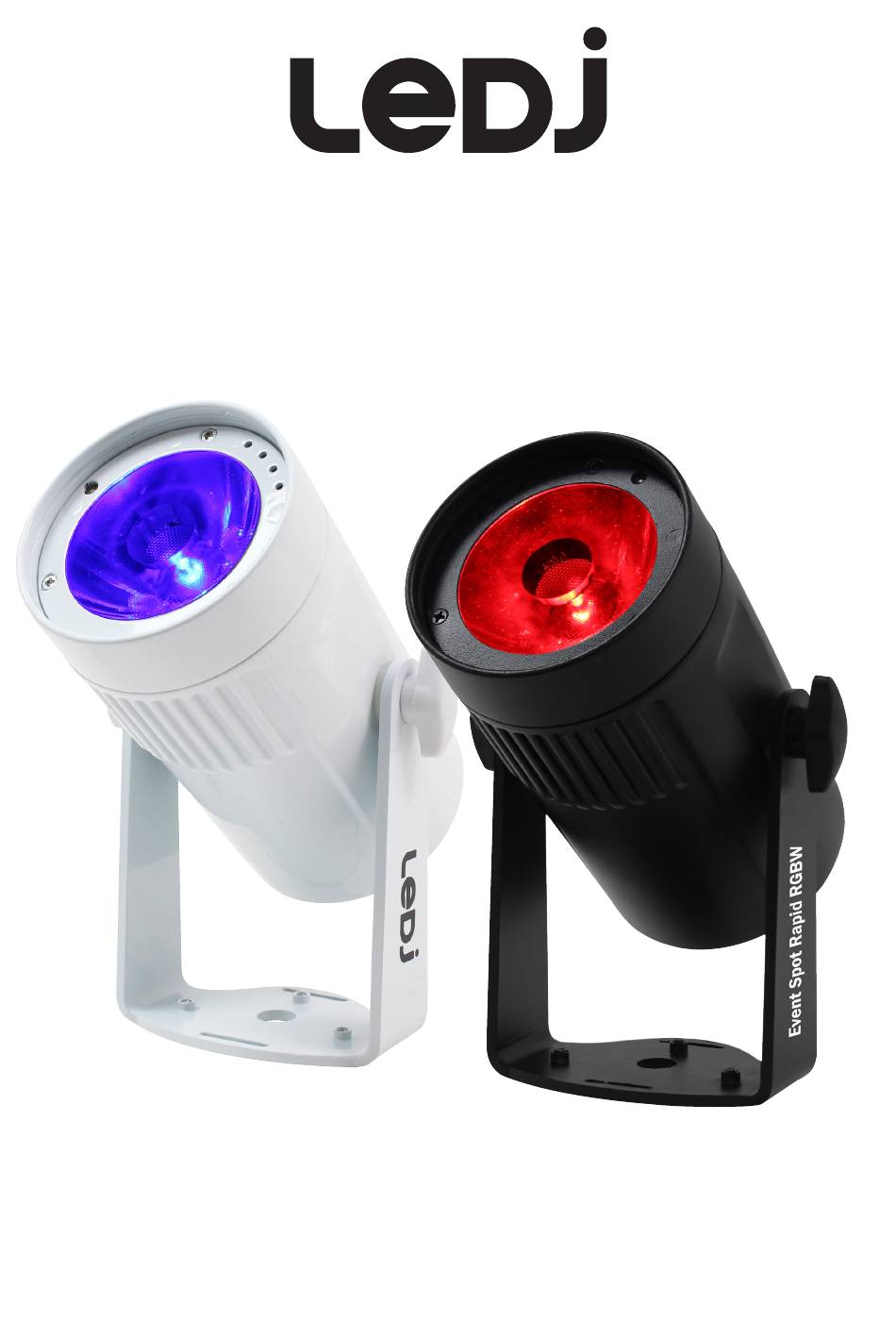

- Page 1 Event Spot Rapid RGBW User Manual Order codes: LEDJ239 - Black Housing LEDJ239A - White Housing...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •... - Page 3 205 x 125 x 88mm (with base) 45° - Lux 175 x 88 x 88mm (without base) FULL ON 1990 Weight 1.2kg Order code LEDJ239 - Black Housing 1090 LEDJ239A - White Housing 4° 10° 45° www.prolight.co.uk Event Spot Rapid RGBW User Manual...
-
Page 4: Technical Specifications
Technical specifications 127mm 100mm 90mm 318mm 35mm 65mm 01 - Battery indicator 02 - LCD display 03 - Function buttons 04 - DC 13-16V, 1A charging input 05 - On/off switch POWER INPUT: DC 13-16V 06 - Hanging bracket 07 - Hanging bracket adjustable knob 08 - Safety eye In the box: 1 x fixture, 1 x 10°... - Page 5 Operating instructions DMX ADDR DMX MODE DMX address setting ADDR DMX ADDR CHANNEL CH 01 CHANNEL CH 04 DMX channel mode CHANNEL CHANNEL CH 06 CHANNEL CH 07 Slave mode SLAVE MODE 1.STATIC 1.STATIC 1.STATIC Static R 00 G 00 B 00 W 00 F 00 colour...
-
Page 6: Sound Sensitivity
Operating instructions SOUND SENS 00 SOUND Sound sensitivity SENS SOUND SENS 31 IR. REMOTE IR remote on/off IR. REMOTE IR. REMOTE DIMMER MENU RESP_01 Dimmer response DIMMER DIMMER RESP_02 DMX FAIL HOLD DMX FAIL DMX fail settings DMX FAIL BLACKOUT DMX FAIL STATIC www.prolight.co.uk... - Page 7 Password Calibration password unlock Password Password: 050 Password Red fine adjustment Green Green fine adjustment Calibrate Green Green Blue Blue fine adjustment Blue Blue MENU White White fine adjustment White White WDMX RESET WDMX W-DMX settings WDMX WDMX PAIR BATTERY LIFE –––% RUNTIME MODE 2 Hours...
- Page 8 Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently.
- Page 9 Operating instructions Built-in programs: To access the built-in programs, press the “MENU” button on the rear of the unit to show “1.STATIC” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select one of the 4 built-in programs (static colour, colour change, 4 colour change or colour fade). 1.STATIC - Press the “ENTER”...
- Page 10 Operating instructions Calibration: To access the calibration, press the “MENU” button on the rear of the unit to show “Calibrate” on the LCD display. Press the “ENTER” button and the display will show “Password”, use the “UP” and “DOWN” buttons until “050” is displayed. Press the “ENTER” button to confirm the password. Now use the “UP”...
- Page 11 Operating instructions Wireless master/slave operation: To set the fixtures into wireless master/slave, first clear the fixtures wireless DMX memory by following the instructions Clear wireless DMX memory. Once all units (including the masters) wireless DMX memory has been cleared set the slave units. To set the slave units, press the “MENU”...
-
Page 12: Important Notes
Operating instructions Optional IR remote functions: Button functions: BLACKOUT DIMMING 01 - Sets the LEDs into power on or off modes 02 - Runs the built-in programs, use the ‘+’ and ‘-’ buttons to go through the programs AMBER/WHITE SELECT PROG FLASH SPEED S PR... - Page 13 www.prolight.co.uk Event Spot Rapid RGBW User Manual...
- Page 14 www.prolight.co.uk Event Spot Rapid RGBW User Manual...
-
Page 15: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. - Page 16 www.prolight.co.uk Event Spot Rapid RGBW User Manual...
