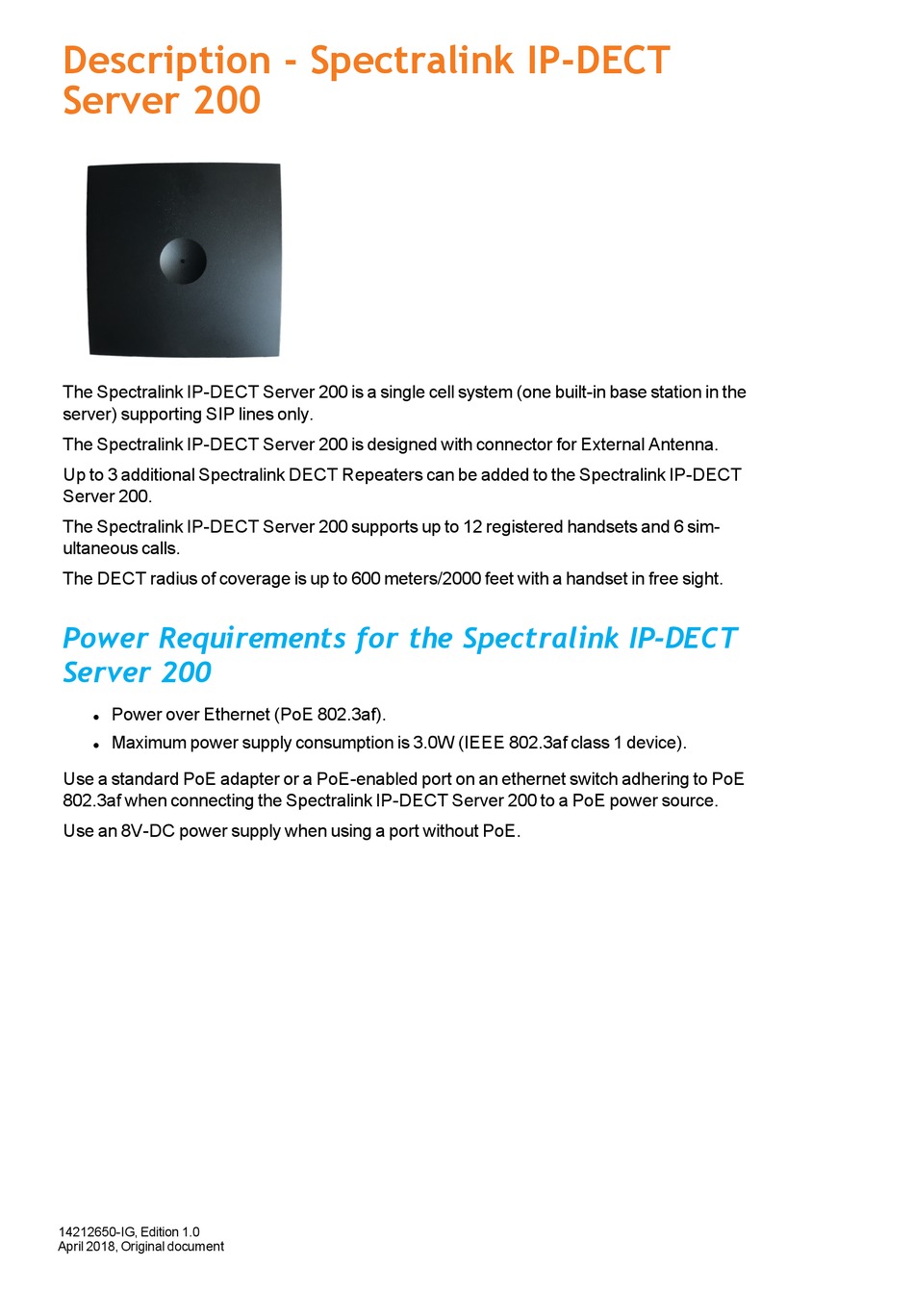

Description - Spectralink IP-DECT
Server 200
The Spectralink IP-DECT Server 200 is a single cell system (one built-in base station in the
server) supporting SIP lines only.
The Spectralink IP-DECT Server 200 is designed with connector for External Antenna.
Up to 3 additional Spectralink DECT Repeaters can be added to the Spectralink IP-DECT
Server 200.
The Spectralink IP-DECT Server 200 supports up to 12 registered handsets and 6 sim-
ultaneous calls.
The DECT radius of coverage is up to 600 meters/2000 feet with a handset in free sight.
Power Requirements for the Spectralink IP-DECT
Server 200
Power over Ethernet (PoE 802.3af).
l
Maximum power supply consumption is 3.0W (IEEE 802.3af class 1 device).
l
Use a standard PoE adapter or a PoE-enabled port on an ethernet switch adhering to PoE
802.3af when connecting the Spectralink IP-DECT Server 200 to a PoE power source.
Use an 8V-DC power supply when using a port without PoE.
14212650-IG, Edition 1.0
April 2018, Original document
