Spectralink IP-DECT Server 200 Deployment and Installation Guide
Installing Multiple Spectralink IP-DECT Server 200s in
Large Areas (1)
Large areas defined as: each area with a radius larger than 30 meters/100 feet; 30 meters/100-feet
cells do not overlap.

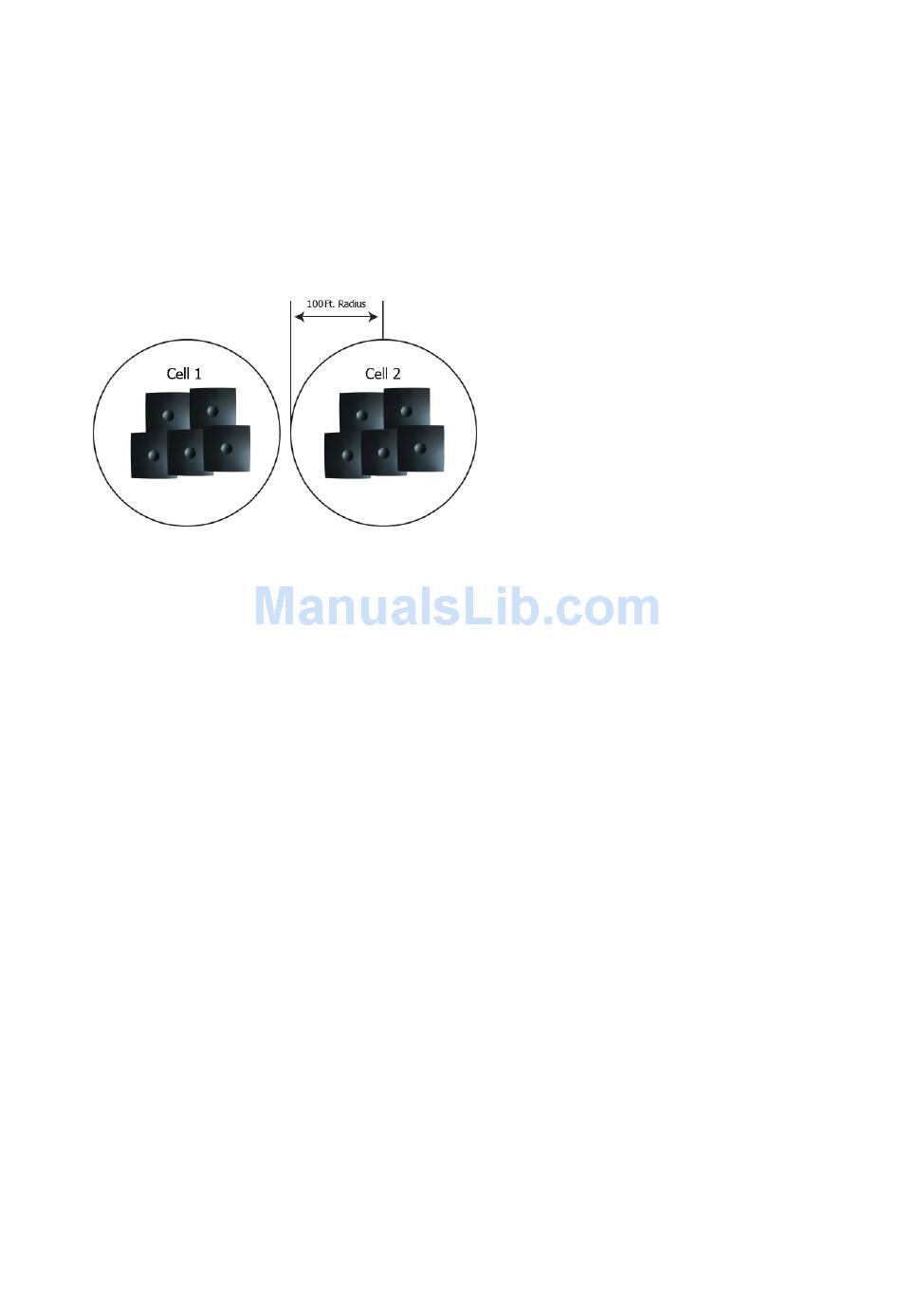

The image below shows 2 independent cells over 30 meters/100 feet. apart with 1 Spectralink IP-
DECT Server 200 in each.
1. Follow the previous instructions for installing multiple Spectralink IP-DECT Server 200s and
select the optimal locations for up to 5 Spectralink IP-DECT Server 200s.
2. If each cell has a ~30 meters/~100 feet radius that does not overlap with adjacent cells, then
each Spectralink IP-DECT Server 200 can be installed and will operate independently.
3. If the 30 meters/100 feet radius cells overlap, then the maximum number of Spectralink IP-
DECT Server 200s installed in the area that overlaps must be 5 or fewer to avoid interference.
See "Installing Multiple Spectralink IP-DECT Server 200s in Large Areas (2)" on the next
page.
