E T C S o u r c e F o u r L E D Q u i c k G u i d e
I n s t a l l
Lens Tub e
Step 1:
Step 2:
Step 3:

Install Fixture

Step 1:
Step 2:
Step 3:
W A R N I N G :
Sou rc e Fo ur LED Pr of i le

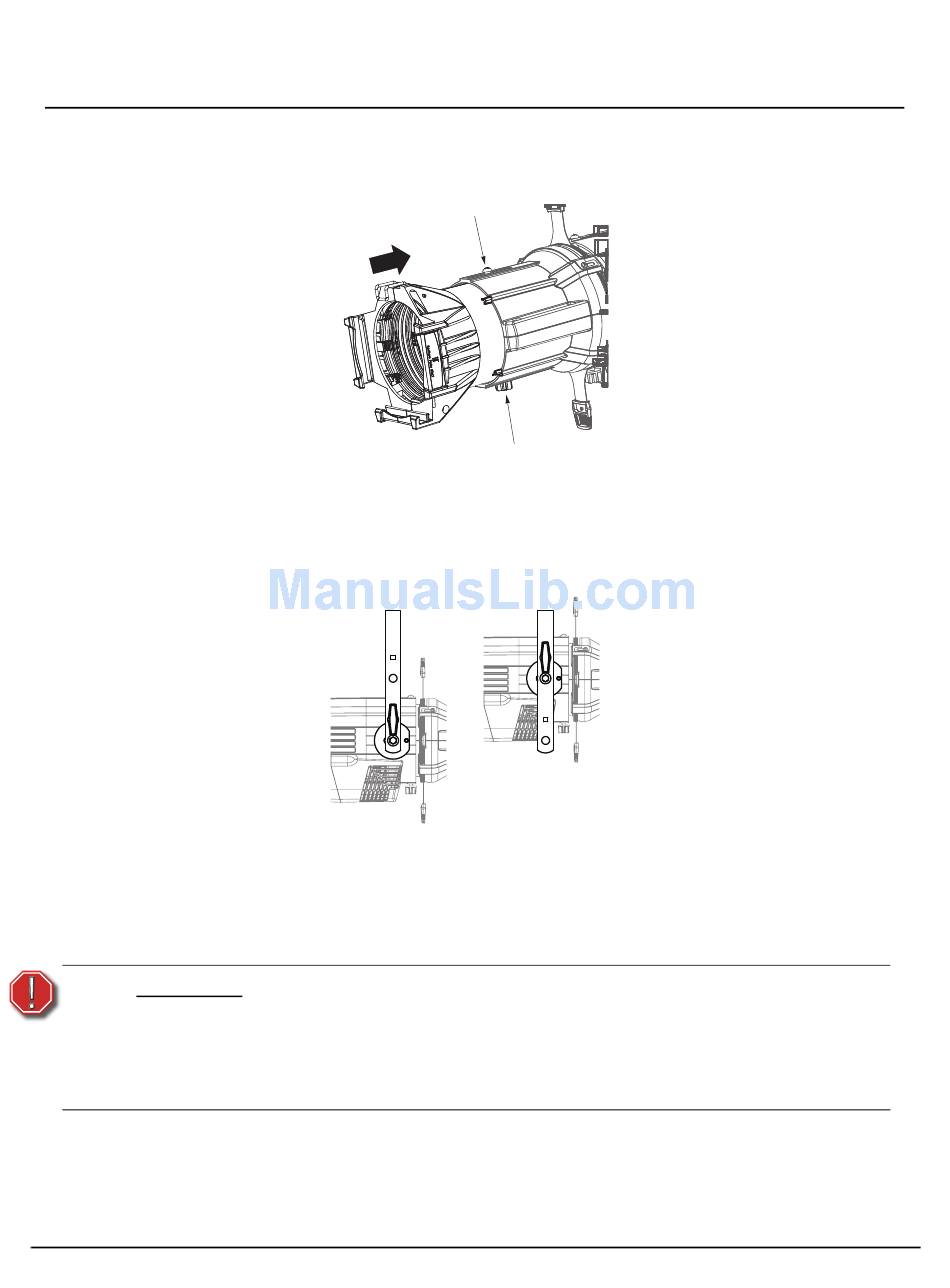

Slide the lens tube into the shutter barrel.
Tighten the lens zoom knob.
Tighten the Phillips screw at the top of the lens barrel.
General use position
Hang or mount the fixture.
Attach a safety cable.
Insert additional accessories such as a top hat, etc.
Use only hardware rated for total weight of fixture and accessories.
A safety cable (or other approved safety device) must be securely attached to
the safety cable loop before loosening the clamp.
Disconnect the unit from power and DMX and allow the fixture to cool before
removing or installing the shutter barrel or other adapters, and all cleaning and
maintenance.
Low clearance position
Page 2 of 8
Install
