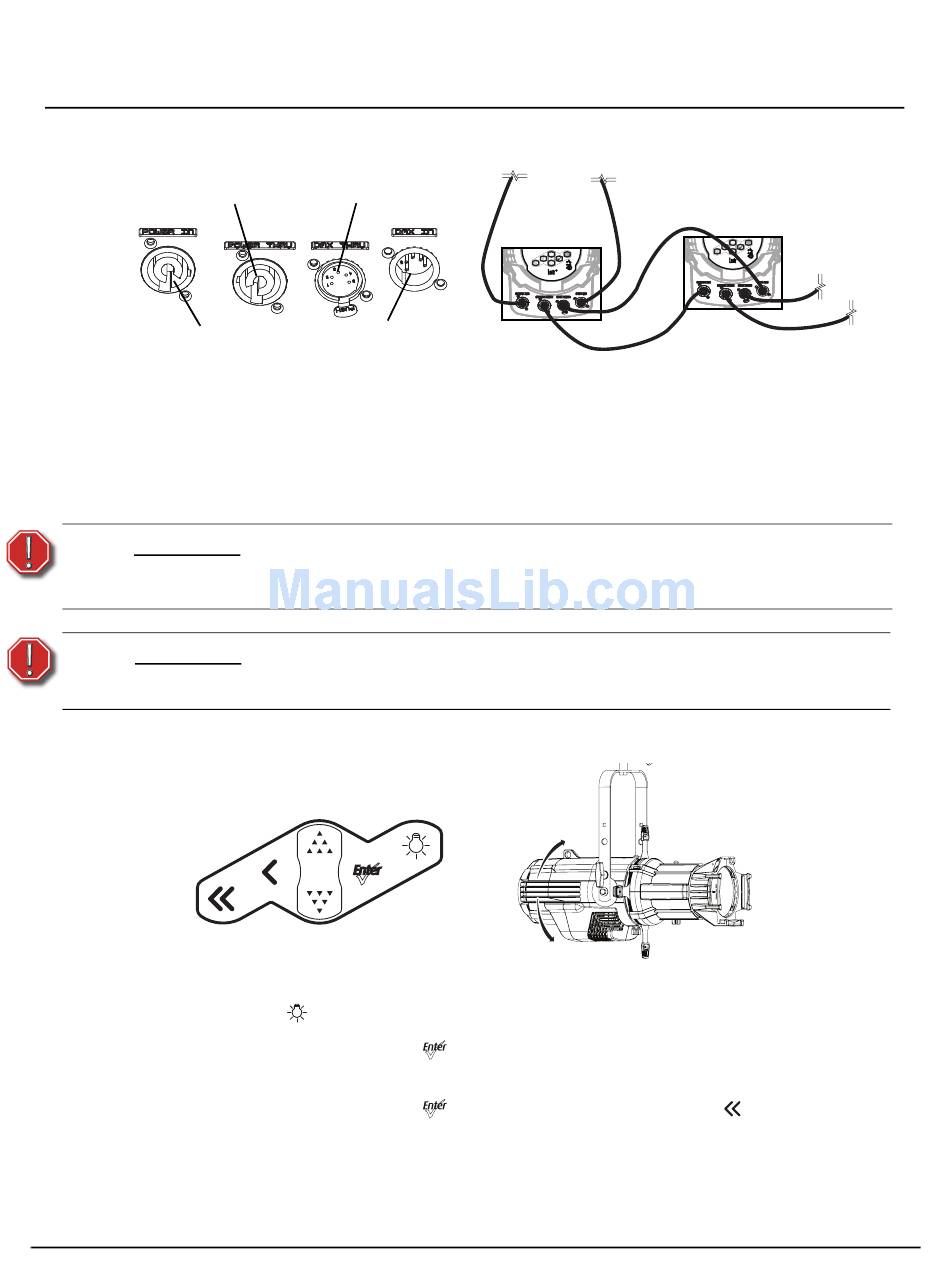

E T C S o u r c e F o u r L E D Q u i c k G u i d e
C o n n e c t
Power Thru
Power In
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
W A R N I N G :
W A R N I N G :
F o c u s
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Sou rc e Fo ur LED Pr of i le
DMX Thru
DMX In
Attach the power cable to the Power In connector.
Attach the 5-pin XLR cable to the DMX In connector (if using external control).
Connect the power cable to AC power.
Plug the XLR cable (if using) into the data source.
Link additional fixtures via Power Thru and DMX Thru connectors.
No more than nine total Source Four LED (four total Series 2 Lustr) fixtures on
Power Thru (non-dimming, 100 to 240 VAC, 50/60 Hz)
Up to 32 device loads can be on one DMX daisy-chain.
The fixture must be connected to a non-dimmable power source in order to
avoid damage to its internal power supply and other electrical components.
Dimming will damage the fixture and void the warranty.
Supply power and wait for the fixture to boot up.
Press [ ] to open the Presets & Sequences menu.
Select Focus and press [
Adjust the fixture to the desired position.
Once focus is set, press [
screen.
] to turn on the LED array.
] to turn off the LED array and then [
Page 3 of 8
Connect
] to return to home
