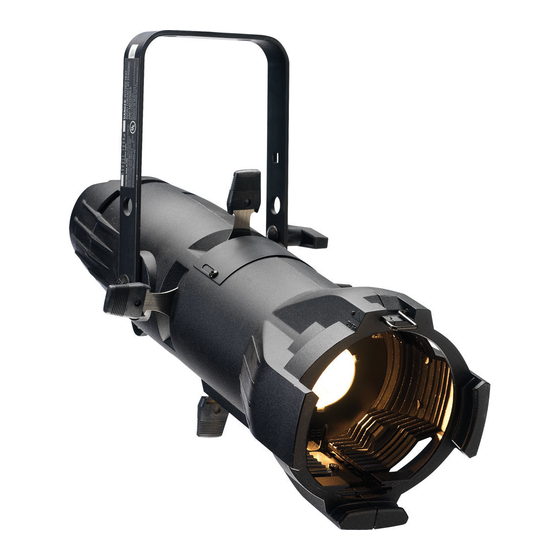

Assembly Guide
Production Dates: September 2004 - Present
ATTENTION:
The part numbers listed in this guide may differ from the parts
required for your particular Source Four fixture. Part numbers for
fixtures change occasionally as parts are replaced or upgraded.
To ensure that you are ordering the proper part for your specific
fixture, please contact your ETC dealer, or ETC Customer Service
for assistance.
C o p y r i g h t © 2 0 1 5 E le c tr o n i c T h e a t r e C o n t r o l s , I n c .
P r o d u c t in f o r m a t i on a n d s p e c i f i c a t i o n s s u bj e c t t o c h a n g e .
P a r t N u m b e r : 7060M2500-06.01 R e v B
A l l R i g h t s r e s e r v e d .
R e l e a s e d : J u l y 2 0 1 5
Advertisement
Table of Contents
Related Manuals for ETC source four
Summary of Contents for ETC source four
- Page 1 ATTENTION: The part numbers listed in this guide may differ from the parts required for your particular Source Four fixture. Part numbers for fixtures change occasionally as parts are replaced or upgraded. To ensure that you are ordering the proper part for your specific fixture, please contact your ETC dealer, or ETC Customer Service for assistance.
-
Page 2: Table Of Contents
T a b l e o f C o n t e n t s Basic Fixture..........1 Assembling basic fixture . -
Page 3: Basic Fixture
Basic Fixture Color frame Gel retainer clip Figure 1 Reference Part Description Quantity Number Number Required 7060A2008 Lamp burner assembly rated up to 750W, Black 7060A2011-K Reflector housing assembly, single clutch, Black 7060A2011-K1 Reflector housing assembly, single clutch, White 7060A2020-K Reflector housing assembly, double clutch, Black 7060A2020-K1 Reflector housing assembly, double clutch, White... -
Page 4: Assembling Basic Fixture
Step 8: Release the gel retaining clip by pushing it sideways while gently pulling backwards. Step 9: Insert the color frame. Step 10: Lock the clip by pushing sideways while gently pushing it forward. Source Four Assembly Guide... -
Page 5: Lamp Burner Assembly
7060A4037 Handle, Insulated Rear, Black 7060A4094 750W Handle label, Black 7060A4095 Label, 750W Handle, White 48" Source Four ground wire assembly 7060B7003 W420 wire, 16 Awg, 200C/300V, green, UL 1180/CSA w/ J490T lugs 4" Source Four ground wire assembly 7060B7007... - Page 6 N o t e : Any part that is indicated as “Black” may be also ordered in white or silver. When ordering white, use the part number suffix -1, and for silver, use the part number suffix -5. Source Four Assembly Guide...
-
Page 7: Assembling Lamp Socket
A s s e m b l i n g l a m p s o c k e t Tools Required: • Open-end adjustable wrench or a 7/16” socket • Needle-nose pliers • #2 Phillips screwdriver Figure 3 Step 1: Set the crossbar of the retainer clip (9) under the two hooks on the clip bracket as shown in Figure... - Page 8 (26). Install the Southco ring with its prongs away from the casting. N o t e : Use pliers to straighten the Southco retaining ring (26) if it bends when you install it on the bolt. Source Four Assembly Guide...
- Page 9 Step 13: Lay the leads in the bottom half of the cable clamp (located in the housing socket casting [7]), making sure that the fiberglass sleeving extends slightly past the screw holes in the housing socket casting. Install new sleeving if necessary. Then, route the wires as shown in Figure C A U T I O N :...
-
Page 10: Reflector Housing Assembly
N o t e : Any part that is indicated as “Black” may be also ordered in white or silver. When ordering white, use the part number suffix -1, and for silver, use the part number suffix -5. Source Four Assembly Guide... -
Page 11: Removing Reflector
R e m o v i n g r e f l e c t o r Tools Required: • Minimally padded work surface (cardboard, carpet, or rubber mat recommended) W A R N I N G : This procedure may crack or break the reflector. Always wear gloves, safety glasses, and a dust mask when performing this procedure. -
Page 12: Cleaning Reflector
Do not immerse or soak the glass in any cleaning solution. Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth. Isopropyl alcohol, distilled water or a 50%-50% mixture of each can be used to clean the glass surface. Source Four Assembly Guide... -
Page 13: Shuttle Barrel Assembly
Shuttle Barrel Assembly Figure 13 Shutter Assembly: The bottom divider plate (4) has four dimples punched into the surface; the top plate (6) has none. The middle divider plates (5) are noticeably thinner-gauge metal than the other two. See detail to the right Figure 12 Reference... -
Page 14: Assembling Front Barrel
Step 7: Place the top divider plate (3) on top of the fourth shutter blade. N o t e : Make sure no shutter assembly components are under the pattern holder guides. Source Four Assembly Guide... - Page 15 Step 8: With both front barrel castings still standing upright, join the two halves, sliding the handle of the top shutter blade through the slot in the top front barrel casting (6). Step 9: Starting at the bottom of the castings (closest to the shutters), use four PHMS screws (5) to fasten the front barrel casting halves together, as shown.
-
Page 16: Lens Tubes - 19° To 50
N o t e : Any part that is indicated as “Black” may be also ordered in white or silver. When ordering white, use the part number suffix -1, and for silver, use the part number suffix -5. Source Four Assembly Guide... -
Page 17: Assembling Lens Tube - 19° To 50
A s s e m b l i n g l e n s t u b e - 1 9 ° t o 5 0 ° L e n s P o s i t i o n s The lens tube casting can accept either original or Enhanced Definition (ED) lenses. - Page 18 Front lens - 1 white dot & 1 green dot (one or two dots) Align lens dots toward this end * Some pre-2006 fixtures have lenses with two color code dots. There is no difference between lenses with one dot or two dots. Figure 16 Source Four Assembly Guide...
- Page 19 For maximum gel life with specific lens tubes, refer to the tables below. Lens Tube Soft Focus Back Sharp Focus Soft Focus Forward Soft Focus Forward (Lamp “flat”) (Lamp “cosine”) (Lamp “peak”) (Lamp “cosine”) 19° worse better better not applicable 26°...
-
Page 20: Cleaning Glass Lens - 19° To 50° And All Edlt Lenses
Do not immerse or soak the glass in any cleaning solution. Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth. Isopropyl alcohol, distilled water or a 50%-50% mixture of each can be used to clean the glass surface. Source Four Assembly Guide... -
Page 21: Lens Tube - 10
Lens Tube - 10° Detail “B” Detail “A” Detail Detail “A” “A” Detail “B” Figure 19 Reference Part Description Quantity Number Number Required 7060A3066 Bracket, gel clip 7060A3079 Clip, gel retainer with 90° bend 7060A3086 Gel holder, 5° and 10° 7060A3096 10°... -
Page 22: Lens Tube - 5
N o t e : Any part that is indicated as “Black” may be also ordered in white or silver. When ordering white, use the part number suffix -1, and for silver, use the part number suffix -5. Source Four Assembly Guide... -
Page 23: Assembling Lens Tubes - 5° And 10
A s s e m b l i n g l e n s t u b e s - 5 ° a n d 1 0 ° Tools Required: • #2 Phillips head screwdriver Step 1: Place the lens tube assembly (5) on your work surface. Align the assembly so that the colorframe grooves are to your left. -
Page 24: Lens Tube - 14
(Lamp “flat”) (Lamp “cosine”) (Lamp “peak”) (Lamp “cosine”) 14° worse good best good N o t e : The 14° lens tube casting assembly is not field repairable. Please contact ETC Customer Service for repair information. Source Four Assembly Guide... -
Page 25: Assembling Lens Tube - 14
A s s e m b l i n g l e n s t u b e - 1 4 ° L e n s M a r k i n g s a n d P o s i t i o n s The lenses are color-coded for identification. -
Page 26: Lens Tube - 70
(Lamp “flat”) (Lamp “cosine”) (Lamp “peak”) (Lamp “cosine”) 70° best good worse good N o t e : The 70° lens tube casting assembly is not field repairable. Please contact ETC Customer Service for repair information. Source Four Assembly Guide... -
Page 27: Assembling Lens Tube - 70
A s s e m b l i n g l e n s t u b e - 7 0 ° L e n s M a r k i n g s a n d P o s i t i o n s The lenses are color-coded for identification. -
Page 28: Lens Tube - 90
(Lamp “flat”) (Lamp “cosine”) (Lamp “peak”) (Lamp “cosine”) 90° best good good worse N o t e : The 90° lens tube casting assembly is not field repairable. Please contact ETC Customer Service for repair information. Source Four Assembly Guide... -
Page 29: Assembling Lens Tube - 90
A s s e m b l i n g l e n s t u b e - 9 0 ° L e n s M a r k i n g s a n d P o s i t i o n s The 90°... - Page 30 Source Four Assembly Guide...
- Page 31 Lens Tube - 90°...
- Page 32 Service: (Americas) service@etcconnect.com (UK) service@etceurope.com (DE) techserv-hoki@etcconnect.com (Asia) service@etcasia.com Web: www.etcconnect.com Copyright © 2015 ETC. All Rights Reserved. Product information and specifications subject to change. 7060M2500-06.01 Rev B Released 07/2015 ...
