Page 1
Source Four Assembly Guide Production Dates: September 2004–Present Part Number: 7060M2500-06.01 Rev: C Released: 2019-08...
Page 2
To view a list of ET C tr ad e m a r k s a n d p a t e n t s , g o t o etcconnect.com/ip. A l l o t h e r t r a d e m a r k s , b o t h m a r k e d a n d no t m a r k e d , a r e t h e p r o p ert y o f t h ei r r es p e c ti v e o w ne r s .
Welcome to the Please note that the part numbers listed in this guide may differ from the parts required for your particular Source Four fixture. Part numbers for fixtures change occasionally as parts are replaced or upgraded. To ensure that you are ordering the proper part for your specific fixture, please contact your ETC dealer, or ETC Customer Service for assistance.
Help from ETC Technical Services If you are having difficulties, and your problem is not addressed by this document, try the ETC support website at support.etcconnect.com or the main ETC website at etcconnect.com. If none of these resources are sufficient, contact ETC Technical Services directly at one of the offices identified below.

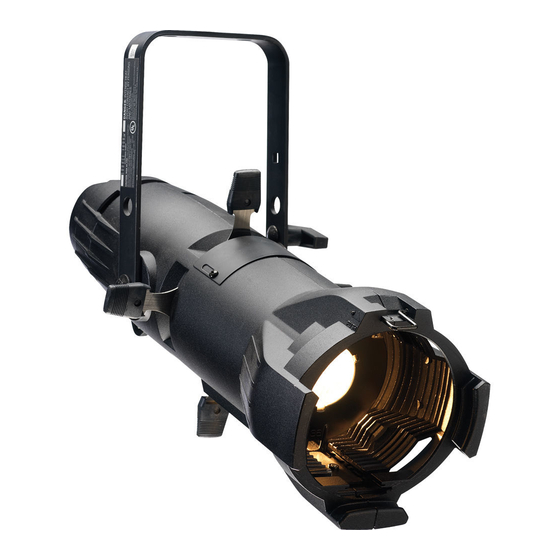

Basic Fixture Color frame Gel retainer clip Figure 1 Reference Part Quantity Description Number Number Required 7060A2008 Lamp burner assembly rated up to 750W, Black 7060A2011-K Reflector housing assembly, single clutch, Black 7060A2011-K1 Reflector housing assembly, single clutch, White 7060A2020-K Reflector housing assembly, double clutch, Black 7060A2020-K1 Reflector housing assembly, double clutch, White...
Install the lamp socket assembly (1) to the reflector housing (2-5) and secure with brass knurled screw on rear of lamp socket assembly. Release the gel retaining clip by pushing it sideways while gently pulling backwards. Insert the color frame. Lock the clip by pushing sideways while gently pushing it forward. Source Four Assembly Guide...
Set the crossbar of the retainer clip (9) under the two hooks on the clip bracket as shown in Figure 3 Place the Tinnerman clip (30) over the retainer clip crossbar between the two hooks and press it down firmly until it snaps into place. Source Four Assembly Guide...
Page 11
Figure 4 Insert the bolt (23) through the light baffle socket casting (3). See Figure 4 Install the green ground wire assemblies (17 and 18) on the bolt (23) with the prongs on the crimped connectors toward the casting. Run both wires through the indent in the lip around the bolt hole.
Page 12
(8), then install Z lamp knob (11). Hand tighten the knob all the way to the right. See Figure 6 CAUTION: You must install Z knob as described above to ensure proper lamp focus travel. Source Four Assembly Guide...
Step 4 Note: If the reflector does not snap in, turn the casting over. Gently pull on the side of the reflector that has not snapped in until the rest of the reflector slides into place. Source Four Assembly Guide...
Cleaning reflector WARNING: Do not use ammonia-based or other harsh commercial cleaners. Clean reflector only as directed. Commercially available glass cleaning agents should be avoided as they may contain ammonia, other harsh chemical detergents or abrasive agents. These cleaners may damage the glass surface and the Anti-Reflective coatings. Do not immerse or soak the glass in any cleaning solution.
Shutter spring Note: Any part that is indicated as “Black” may be also ordered in white or silver. When ordering white, use the part number suffix -1, and for silver, use the part number suffix -5. Source Four Assembly Guide...
Assembling front barrel Tools Required: • #2 Phillips head screwdriver WARNING: During assembly, the shutter springs can pop out of place. Always wear protective eyewear during this procedure. Stand the top and bottom front barrel castings (6 and 7) upright with the shutter end of the castings toward the bottom.
50° Lens tube label, black text (for white fixtures) Note: Any part that is indicated as “Black” may be also ordered in white or silver. When ordering white, use the part number suffix -1, and for silver, use the part number suffix -5. Source Four Assembly Guide...
Assembling lens tube: 19° to 50° Lens Positions The lens tube casting can accept either original or Enhanced Definition (ED) lenses. The lens positions Figure 15 are color-coded within the lens casting to match the colored dots on the lenses (see ).
Front lens: 1 white dot & 1 green dot Align lens dots toward this end * Some pre-2006 fixtures have lenses with two color code dots. There is no difference between lenses with one dot Figure 16 or two dots. Source Four Assembly Guide...
For maximum gel life with specific lens tubes, refer to the tables below. Soft Focus Soft Focus Soft Focus Back Sharp Focus Lens Tube Forward Forward (Lamp “flat”) (Lamp “cosine”) (Lamp “peak”) (Lamp “cosine”) 19° worse better better not applicable 26°...
Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth. Isopropyl alcohol, distilled water or a 50%-50% mixture of each can be used to clean the glass surface. Source Four Assembly Guide...
Lens Tube: 10° Detail “B” Detail Detail “A” “A” Detail “B” Figure 19 Reference Part Quantity Description Number Number Required 7060A3066 Bracket, gel clip 7060A3079 Clip, gel retainer with 90° bend 7060A3086 Gel holder, 5° and 10° 7060A3096 10° lens tube assembly, Black, empty 7060A4008-01 Knob set with male insert 7060A4009...
Washer, SH, .253 x .281 x .438, black, zinc Note: Any part that is indicated as “Black” may be also ordered in white or silver. When ordering white, use the part number suffix -1, and for silver, use the part number suffix -5. Source Four Assembly Guide...
Assembling lens tubes: 5° and 10° Tools Required: • #2 Phillips head screwdriver Place the lens tube assembly (5) on your work surface. Align the assembly so that the colorframe grooves are to your left. Figure 20 If you are assembling a 5° tube, attach the handle (19) as shown in , using the screws (13), washers (12) and backing plate (2).
Lens Tube Forward Forward (Lamp “flat”) (Lamp “cosine”) (Lamp “peak”) (Lamp “cosine”) 14° worse good best good Note: The 14° lens tube casting assembly is not field repairable. Please contact ETC Customer Service for repair information. Source Four Assembly Guide...
Assembling lens tube: 14° Lens Markings and Positions The lenses are color-coded for identification. The rear lens has two brown dots and the front lens has one brown dot. The lens positions are color-coded within the lens casting to match the colored dots on Figure 22 the lenses (see Align lens dots toward this end...
Lens Tube Forward Forward (Lamp “flat”) (Lamp “cosine”) (Lamp “peak”) (Lamp “cosine”) 70° best good worse good Note: The 70° lens tube casting assembly is not field repairable. Please contact ETC Customer Service for repair information. Source Four Assembly Guide...
Assembling lens tube: 70° Lens Markings and Positions The lenses are color-coded for identification. The rear lens has two green dots and the front lens has one green dot. The lens positions are color-coded within the lens tube casting to match the colored Figure 24 dots on the lenses (see Align lens dots toward this end...
Lens Tube Forward Forward (Lamp “flat”) (Lamp “cosine”) (Lamp “peak”) (Lamp “cosine”) 90° best good good worse Note: The 90° lens tube casting assembly is not field repairable. Please contact ETC Customer Service for repair information. Source Four Assembly Guide...
Assembling lens tube: 90° Lens Markings and Positions The 90° lenses are color-coded for identification. The rear lens has two purple dots and the front lens has one purple dot. The lens positions are color-coded within the lens casting to match the colored Figure 26 dots on the lenses (see Align lens dots toward this end...
